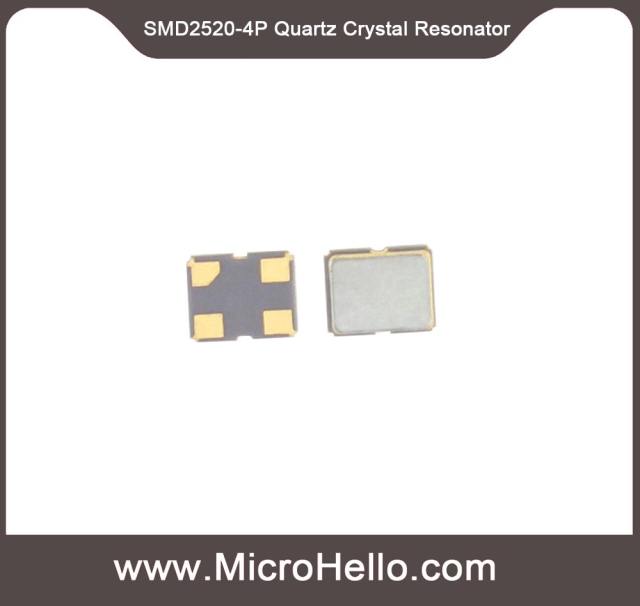

10pcs SMD2520 4pin 10MHz~65MHz Crystal Resonator 2.5mm*2.0mm SMD

Name: 10pcs SMD2520 4pin 10MHz~65MHz Crystal Resonator 2.5mm*2.0mm SMD
Brand: MicroHello
SKU: 2520-4-00
Price: 2.2 USD
Availability: InStock

SKU: 2520-4-00

0.0 (0)

0 Sold

$2.20 ~~$4.50~~

SMD2520 4pin 10MHz~65MHz Crystal Resonator 2.5mm*2.0mm SMD

Received successfully

Coupon Code

CONTINUE SHOPPING

Please select the information you want X

qty:

10pcs
Frequency:

12MHz

14.318MHz

16MHz

19.2MHz

20MHz

22.579MHz

24MHz

25MHz

26MHz

27.12MHz

30MHz

32MHz

37.4MHz

38.4MHz

40MHz

48MHz

50MHz

Other Frequency(Contact us)

Quantity:

Add to Favorites (0)

Description

SMD 2520 Crystal Units
Item: 7E Series (SMD 2520 Crystal Units)
Frequency Range: 12~54MHz
Overtone Order: Fundamental
Size: 2.5×2.0×0.55mm
Packing Unit: 3000pcs./Reel
Applications: Small communication device, Smart phone, Sip modules, Consumer devices, DVC, DSC, etc.

Features Of 7E Series SMD 2520 Crystal Units
2520 size miniature and light SMD crystal unit with a low profile of 0.55mm
Wide frequency range from 12MHz to 54MHz
High precision and high frequency stability
Excellent heat resistance and environmental characteristics
Automatic mounting and reflow soldering
Applications: Small communication devices, Sip modules, Smart phone, Consumer device, DVC, DSC, etc
RoHS Compliant /Pb-Free

Electrical Specifications Of 7E Series SMD 2520 Crystal Units

Item /Type	7E Series (SMD 2520 Crystal Units)
Frequency Range	10~30MHz	30~54MHz
Overtone Order	Fundamental
Load Capacitance	8pF, 10pF, 12pF, or specify
Drive Level	1~200μW Max. (100μW Typ.)
Frequency Tolerance	±10ppm, ±20ppm, or specify
Series Resistance	150Ω Max (12~13MHz), 100Ω Max (13~30MHz)	60Ω Max.
Shunt Capacitance	5pF Max.
Operating Temperatuer	-20~+70℃, or specify
Storage Temperature	-55~+125℃
Aging (at 25℃)	±3ppm /Year Max.
Packing Unit	3000pcs./Reel
