Features:
Tuning fork crystal of lead formed heatresistance
Frequency range from 30kHz to 50MHz
Small size with 2.0×6.0 and 3.0×8.0 mm
High reliable environmental performance
Low power consuming
Application for Clock, Smart meters, IoT, Consumer products, PC, MCU, etc
RoHS Compliant
Electronic Specifications Of 6K Series kHz Crystal Unit:
| Item/Type | 6K6/6K8 Series (6K6/6K8 Series kHz Crystal Unit) |
| Frequency Range | 30kHz~50MHz |
| Frequency Tolerance | ±20ppm, or specify |
| Load Capacitance | 6.0~12.5pF, or specify |
| Operating Temperature | -20~+70℃, or specify |
| Storage Temperature | -55~+125℃ |
| Drive Level | 1.0μW Max. |
| Turnover Temperature | ±25℃±5℃ |
| Parabolic Coefficient | (-0.034±0.006)×10-6/℃ |
| Shunt Capacitance | 1.5pF Typ. |
| Aging (at25℃) | ±3ppm/Year Max. |
| Packing Unit | 1000pcs. |
Features:
Wide frequency range from 3.579MHz to 50MHz
High shock tolerance
Small size
Reliable frequency stability
Low power consuming
Applications: IoT, Security, PC and peripherals, Microprocessor systems, Intrumentation, Automotive electronics, etc

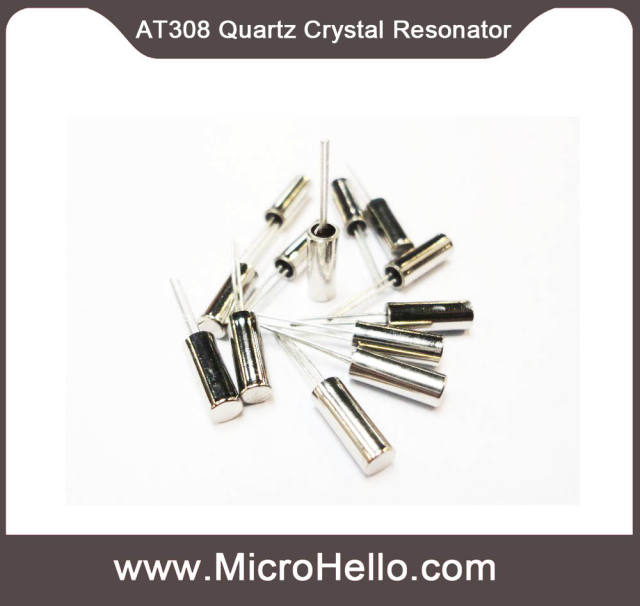

Electronical Specifications Of 6Z Series Cylinder Crystal Resonator
| Item /Type | 6Z (Cylinder Crystal Units) | |
| Size(mm) | 3×9 /3×10 | 2×6 /3×8 |
| Frequency Range | 3.579~4.0MHz | 30kHz~50MHz |
| Load Capacitance | 12pF, 16pF, 20pF, or specify | |
| Drive Level | 10~+100μW | |
| Frequency Tolerance | ±10~±30ppm, or specify | |
| Insulation Resistance | 500MΩ AT DC200V | |
| Series Resistance | 40~180Ω (3.579~30MHz) | 80Ω (30kHz~100MHz) |
| Operating Temperature | -20~+70℃, -40~+85℃ | |
| Storage Temperature | -40~+85℃ | |
| Shunt Capacitance | 5pF Typ. | |
| Aging (at 25℃) | ±3ppm /Year Max. | |
| Packing Unit | 1000pcs. | |
Dimensions[mm]
