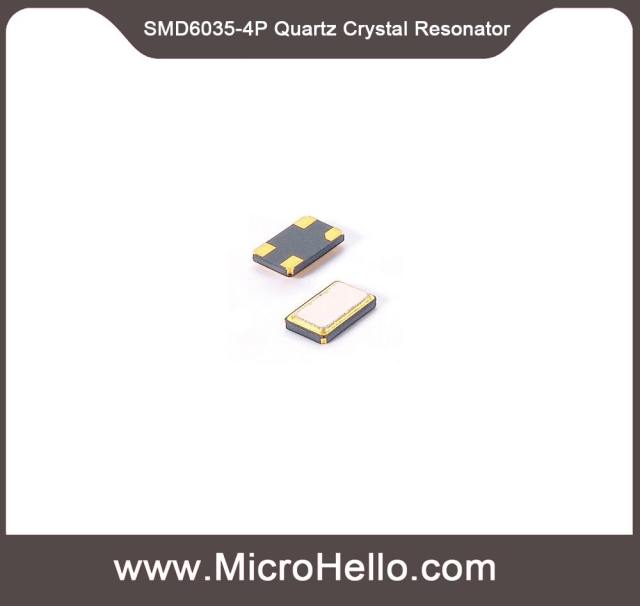

SMD 6035 Crystal Resonators
Frequency Range: 8~100MHz
Overtone Order: Fundamental /3rd Overtone
Package: 4 Pads
Size: 6.0×3.5×1.2mm
Applications: Automotive applications, Server, Radio Communications, PDA, FA, etc
| Specifications and Dimensions |
Features Of 6GB Series SMD 6035 Crystal Units
6035 size miniature SMD crystal resonator with a low proflie of 1.2mm
Wide frequency range from 8MHz up to 100MHz
High precision and high reliability
4 Pads package
Automatic mounting and reflow soldering
Applications: Automotive applications, Server, Radio communications, PDA, FA, GPS, etc
RoHS Compliant /Pb-Free
Electrical Specifications Of 6GB Series SMD 6035 Crystal Units
| Item /Type |
6GB Series (SMD 6035 Crytal Units) |
| Frequency Range |
8~10MHz |
10~12MHz |
12~40MHz |
40~100MHz |
| Overtone Order |
Fundamental |
3rd Overtone |
| Load Capacitance |
10pF, 16pF, 20pF, or specify |
| Drive Level |
1~200μW Max. (100μW Typ.) |
| Frequency Tolerance |
±10ppm, ±20ppm ,±30ppm, or specify |
| Series Resistance |
150Ω Max. |
80Ω Max. |
50Ω Max. |
70Ω Max. |
| Shunt Capacitance |
5pF Max. |
| Operating Temperature |
-20~+70℃, -40~+85℃, or specify |
| Storage Temperature |
-55~+125℃ |
| Aging (at 25℃) |
±3ppm /Year Max. |
| Packing Unit |
1000pcs./Reel |
Dimensions[mm]
Notice:Pls contact us for wholesale price if you plan to buy 200pcs or more.Thanks.
