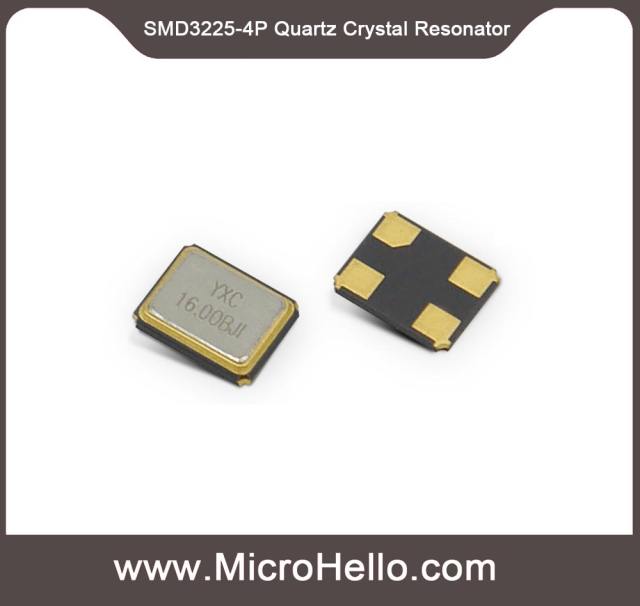

SMD 3225 Crystal Resonator
Item: 7U Series (SMD 3225 Crystal Resonator)
Frequency Range: 8~64MHz
Overtone Order: Fundamental
Size: 3.2×2.5×0.7 mm
Applications: Small communication devices, IoT, PDA, DVC, DSC, Wireless modules, Mobile phone, Cellular, etc
Features Of 7U Series SMD 3225 Crsytal Resonators
3225 size miniature and light weight SMD crystal resonator with a low profile of 0.7mm
High precision and high reliability
Offers a wide frequency range from 8MHz to 64MHz
Excellent heat resistance and environmental characteristics
Automatic mounting and reflow soldering
Applications: Small communication device, IoT, Wireless communications, BT, PDA, Cellular, etc.
RoHS Compliant /Pb-Free
Electrical Specifications Of 7U Series SMD 3225 Crystal Resonators
| Item /Type |
7U Series (SMD 3225 Crystal Resonators) |
| Frequency Range |
8~16MHz |
16~20MHz |
20~64MHz |
| Overtone Order |
Fundamental |
| Load Capacitance |
8pF, 10pF, 12pF, or specify |
| Drive Level |
1~200μW Max. (100μW Typ.) |
| Frequency Tolerance |
±10ppm~±30ppm, or specify |
| Series Resistance |
100Ω Max. |
80Ω Max. |
60Ω Max. |
| Shunt Capacitance |
5pF Max. |
| Operating Temperature |
-40~+85℃, or specify |
| Storage Temperatuer |
-55~+125℃ |
| Aging (at 25℃) |
±3ppm /Year Max. |
| Packing Unit |
3000pcs. /Reel |
Dimensions[mm]
