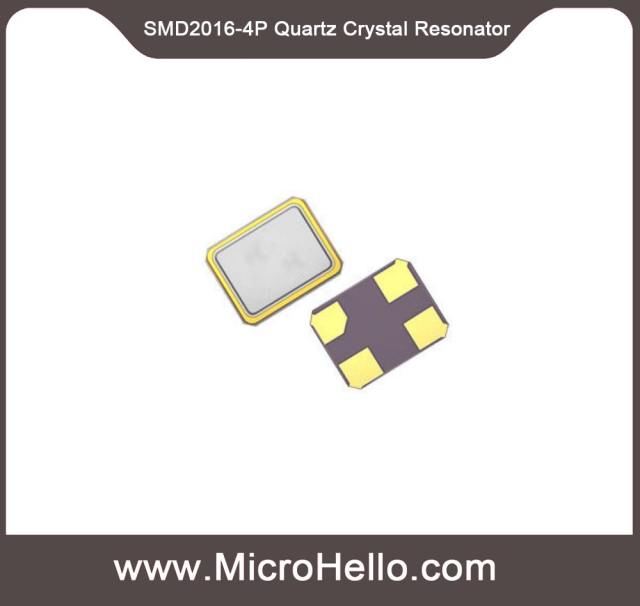

SMD 2016 Crystal Units
Item: 7F Series (SMD 2016 Crystal Units)
Frequency Range: 16~96MHz
Overtone Order: Fundamental
Size: 2.0×1.6×0.5 mm
Packing Unit: 3000pcs./Reel
Applications: Small communication device, IoT, PC, Consumer device, Mobile device, Wireless modules, etc.
Features Of 7F Series SMD 2016 Crystal Units
2016 size miniature and light SMD crystal unit with a low profile of 0.5mm
Wide frequency range from 16MHz to 96MHz
High precision and high frequency stability
Automatic mounting and reflow soldering
Applications: Smal communication devices, Smart phone, Sip modules, PC, Consumer devices, etc.
| Item /Type |
7F Series (SMD 2016 Crystal Units) |
| Frequency Range |
16~30MHz |
30~60MHz |
80MHz / 96MHz |
| Overtone Order |
Fundamental |
| Load Capacitance |
6pF, 8pF, 10pF, or specify |
| Drive Level |
1~200μW Max. (50μW Typ) |
| Frequency Tolerance |
±10ppm, ±20ppm, or specify |
|
|
| Series Resistance |
200Ω (16~19.2MHz), 100Ω (19.2~30MHz) |
80Ω |
40Ω |
| Shunt Capacitance |
5pF Max. |
| Operating Temperature |
-20~+70℃, or specify |
| Storage Temperature |
-55~+125℃ |
| Aging (at 25℃) |
±3ppm /Year Max. |
| Packing Unit |
3000pcs./Reel |
Dimensions[mm]
Notice:Pls contact us for wholesale price if you plan to buy 200pcs or more.Thanks.
