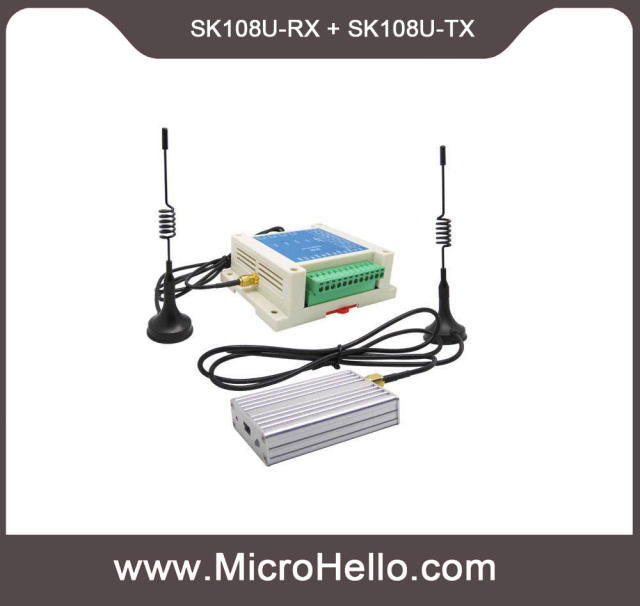

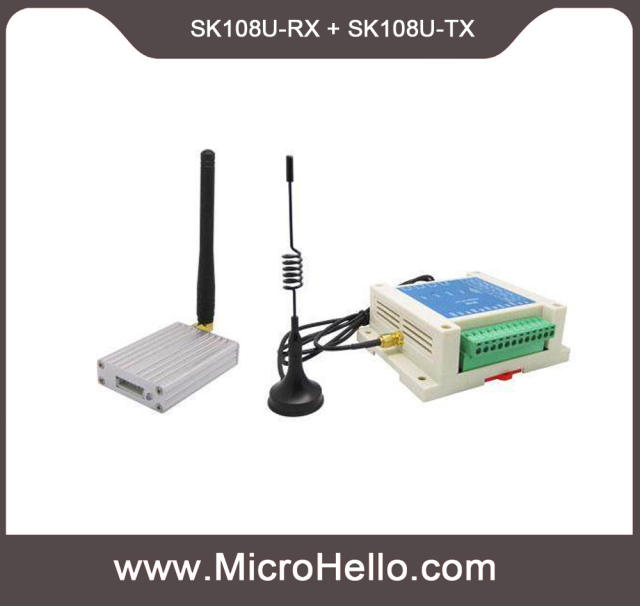

SK108U includes SK108U-TX and SK108U-RX. SK108U-TX is an industrial serial control transmitter, it works with SK108U-RX to build wireless switch control system. SK108U-TX is serial interface which can connect with PC and other serial devices. One SK108U-R

Received successfully

Coupon Code

CONTINUE SHOPPING

Please select the information you want X

Frequency:

433MHz

490MHz

868MHz

915MHz
Module B:

SK108U-RX
Module A(PC Terminal):

SK108U-TX-610

SK108U-TX-611

SK108U-TX-612

SK108U-TX-613

SK108U-TX-614

SK108U-TX-650

SK108U-TX-651

SK108U-TX-652

SK108U-TX-653

SK108U-TX-654

SK108U-TX-6202

SK108U-TX-6300

SK108U-TX-6500

Quantity:

Add to Favorites (0)

Description

SK108U includes SK108U-TX and SK108U-RX. SK108U-TX is an industrial serial control transmitter, it works with SK108U-RX to build wireless switch control system. SK108U-TX is serial interface which can connect with PC and other serial devices. One SK108U-RX has 4 channels relay output. One SK108U-TX can control multiple SK108U-RX. The frequency of the SK108U-TX and SK108U-Rx can be set to avoid frequency interference.
In hardware SK108U-Tx is the same as our SV series module, which has different output power and different interface for option.
SK108U-Rx is same as SK108 in hardware but different firmware.
SK108U strictly uses lead-free process for production and testing, and meets RoHS and Reach standards.

Specification

SK108U-RX Parameters

Note: Below parameters base on 12V power supply/ 25℃ testing environment.

Parameters	Min.	Typ.	Max.	Unit	Condition
Working Condition
Voltage range	9	12	30	V
Operating Temperature	-40	25	+85	℃
Current Consumption
Rx current		<20		mA
RF Parameters
Sensitivity		-121		dBm	@1200

SK108U-TX Parameters

Note: SK108U-Tx is the same as our SV series module in hardware. It has different output power and different interface for option.

Product Name	Power	Interface
SK108U-TX-610	100mW	TTL
SK108U-TX-611	100mW	TTL/RS232/RS485
SK108U-TX-612	100mW	TTL/RS232/RS485
SK108U-TX-613	100mW	USB
SK108U-TX-614	100mW	RS232
SK108U-TX-650	500mW	TTL /RS485
SK108U-TX-651	500mW	TTL/RS232/RS485
SK108U-TX-652	500mW	TTL/RS232/RS485
SK108U-TX-653	500mW	USB
SK108U-TX-654	500mW	RS232
SK108U-TX-6202	2W	TTL/RS232/RS485
SK108U-TX-6300	3W	TTL/RS232/RS485
SK108U-TX-6500	5W	TTL/RS232/RS485

Features

The power of SK108U-Tx is optional（100mw,500mW,2W,3W,5W）
40 predefined channels for SK108U-TX
16 predefined channels for SK108U-RX
Parameters configurable by PC software or serial device
GFSK Modulation
Antenna automatic matching
Bi-directional wireless switch control
Sensitivity up to -121 dBm
Working temperature range：-40 ~ +85 °C

Application

Remote control switch control
Security system
Home automation remote sensing
Wireless remote telemetry
Building automation and security
Access control system

Typical application

Pin Definition

Pin NO.	Pin	Description
1	GND	Power Ground
2	VCC	Connect to positive power
3	IN1	Ch1 input, internal pull up
4	GND	Ch1 input, internal pull up
5	IN2	Ch2 input, internal pull up
6	GND	Ch2 input, internal pull up
7	IN3	Ch3 input, internal pull up
8	GND	Ch3 input, internal pull up
9	IN4	Ch4 input, internal pull up
10	GND	Ch4 input, internal pull up
11	NC	Reserved, Non-Connected
12	NC	Reserved , Non-Connected
13	OUT1	Ch1 relay control output, closed : low level in Tx Open : high level in Tx
14	OUT1
15	OUT2	Ch2 relay control output, closed : low level in Tx Open : high level in Tx
16	OUT2
17	OUT3	Ch3 relay control output, closed : low level in Tx Open : high level in Tx
18	OUT3
19	OUT4	Ch4 relay control output, closed : low level in Tx Open : high level in Tx
