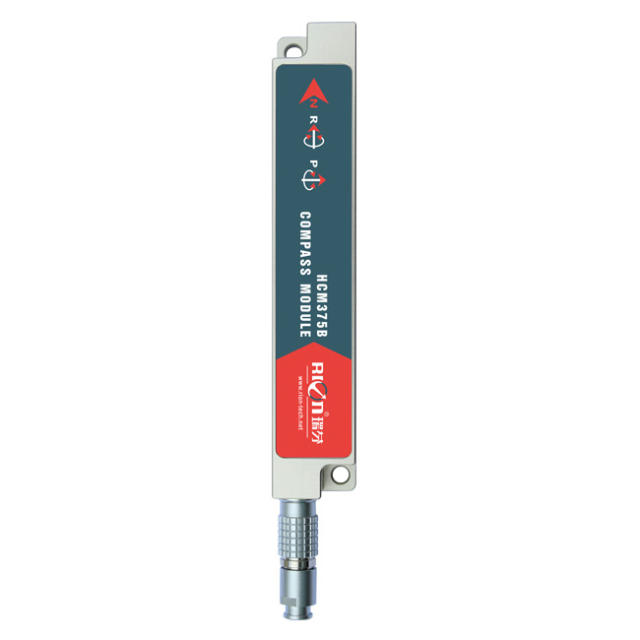

Brief Introduction
This HCM370B/HCM375B-N/MP is developed exclusively for commercial applications,and it is a high-precision three-dimensional compass with high resolution, strong noise immunity and stable temperature offset. It uses advanced hard and soft iron calibration algorithms and uses high-precision accelerometers for tilt compensation, so that its roll angle can provide high-precision heading information at any tool face of 360 °. In the environment with fixed interference, this product can still maintain a high measurement accuracy. Long strip volume with a width of only 1.95 CM. Reaching IP67 waterproof grade, it is more suitable for drilling measurement. It has the characteristics of small size and low power consumption, and can be quickly and conveniently integrated into various products. The product can be ordered with complete packaging products or circuit boards. This product integrates a three-axis magnetic field sensor and a three-axis acceleration sensor, calculates the course data in real time through an industrial single-chip microcomputer with high reliability and strong anti-interference capability, and uses a three-axis accelerometer to compensate the course for a wide range of tilt angles, which is a product with high performance and stability. With small size and low power consumption, it is widely used in handheld devices, mobile devices, antenna stabilization, vehicles, system integration and many other fields.
Main Feature
★ Heading Accuracy: 0.5°
★ Roll Measure Range:±180°
★ Tilt Resolution: 0.1°
★ Tilt Accuracy: <0.2°(Full Range)
★ Working Temp.: -40℃~+85℃
★ Dimension: L111.5×W19.5×H19.5mm
★ With Hard And Soft Magnetic Calibration
★ Rs232/Rs485/Ttl Output
Application :
★ Satellite antenna search satellite
★ Marine navigation surveying and mapping
★ GPS integrated navigation
★ Antenna servo control
★ Infrared imager
★ Laser range finder
★ Map for plotter
★ ROV underwater robot navigation
★ Oceanography measurement instruments

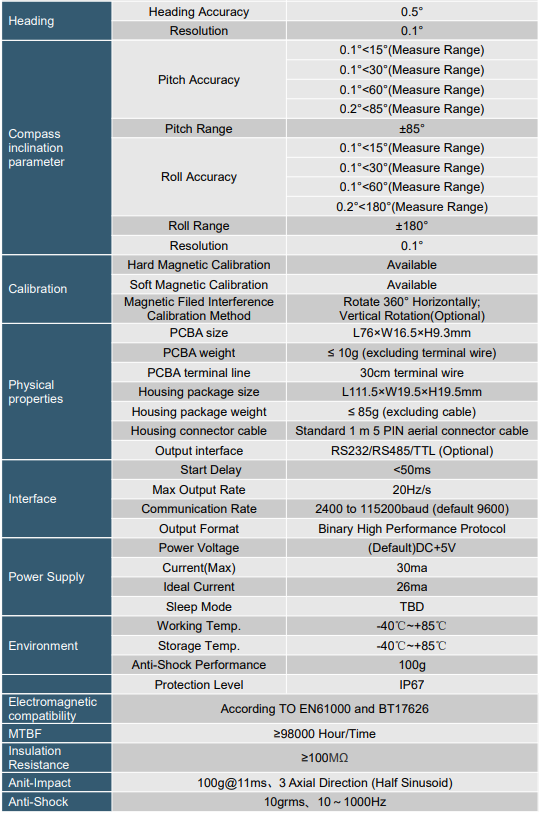

Product parameters
Dimension

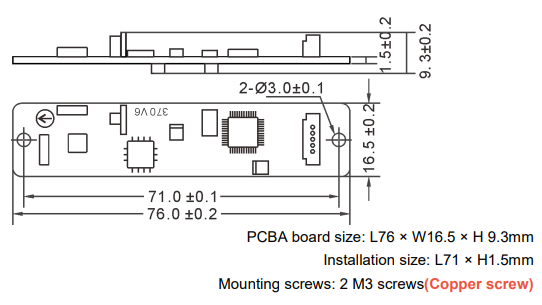

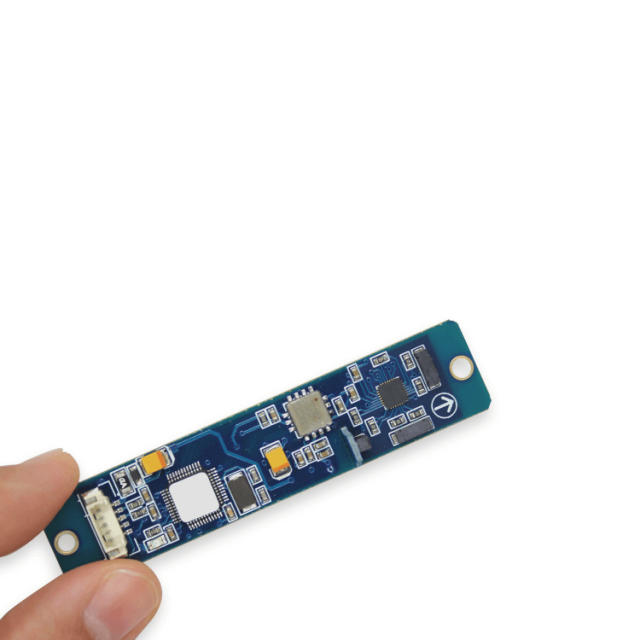

PCBA SIZE
Size: L76×W16.5×H9.3mm

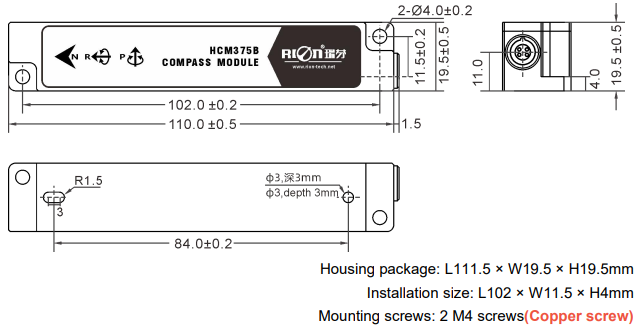

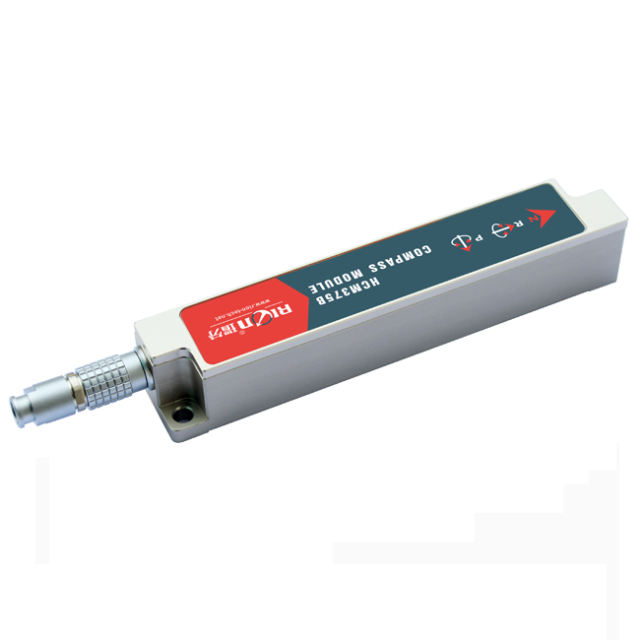

HOUSING PACKAGE SIZE
Size: L110×W19.5×H19.5mm
Specification Download
Software Download(Electronic compass v1.5)
