General Description

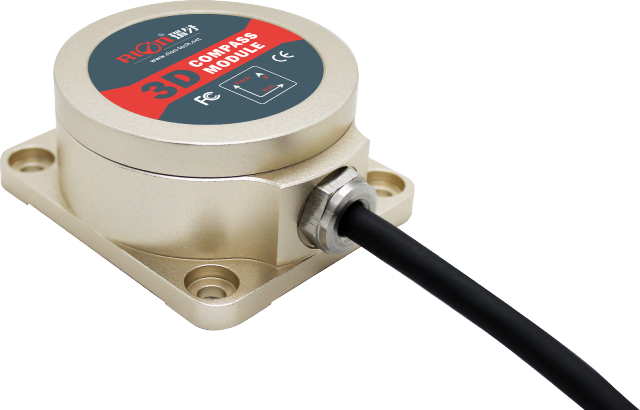

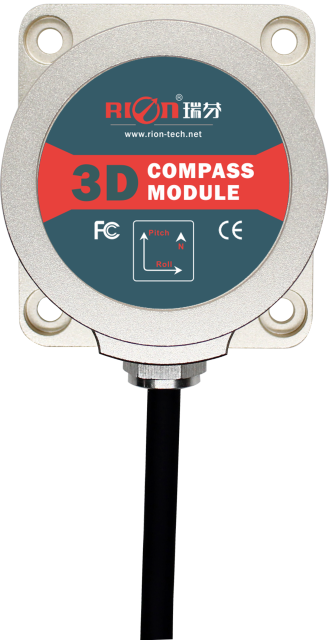

HCM380B/HCM385B-MP is a cost-effective 3D electronic compass. It adopts 24-point calibration method, which has stronger anti-interference and easy operation, and uses high-precision accelerometer for tilt compensation, so that it can provide high-precision heading information at any tool surface at roll within ±180 °For fixed interference, it can still provide high-precision measurement data, RS232, RS485, TTL multiple communication interface methods are optional.
The product integrates a three-axis magnetometer and a three-axis accelerometer, with high resolution and strong anti-noise capability. It is a high-performance, high-stability product with small size and low power consumption; It is widely used in many fields such as handheld devices, mobile devices, antenna stabilization, vehicles, and system integration. The product can be ordered with a sealed package or a circuit board.
Electrical Characteristics
|
HCM385B Parameters
|
|
Compass heading
|
Best heading accuracy
|
0.5° tilt <10°
|
|
2.0° tilt＜60°
|
|
3.0° tilt＜80°
|
|
Resolution
|
0.1°
|
|
Compass tilt angle
|
Pitch accuracy
|
0.1°<15°（Measure range）
|
|
0.1°<30°（Measure range）
|
|
0.1°<60°（Measure range）
|
|
0.2°<90°（Measure range）
|
|
Pitch measure range
|
±85°
|
|
Roll accuracy
|
0.1°<15°（Measure range）
|
|
0.1°<30°（Measure range）
|
|
0.1°<60°（Measure range）
|
|
0.2°<180°（Measure range）
|
|
Roll measure range
|
±180°
|
|
Resolution
|
0.1°
|
|
Calibration
|
Hard iron calibration
|
Yes
|
|
Soft iron calibration
|
Yes
|
|
Soft Magnetic field interference calibrationmethod
|
Horizontal rotation 360 °;
vertical rotation (optional)
|
|
physical characteristics
|
Dimension
|
L57×W49×H25.5mm
|
|
Weight
|
≤130g(without cable)
|
|
RS232/RS485/TTL interface
|
Direct leading cable
|
|
Interface characteristics
|
Start delay
|
<50ms
|
|
Max output
|
20Hz/s
|
|
Communication rate
|
2400 ~115200baud
|
|
Output format
|
Binary high performance protocol
|
|
Power supply
|
Power voltage
|
（default）DC+5V
|
|
Current (max)
|
30mA
|
|
Idea mode
|
26mA
|
|
Sleep mode
|
TBD
|
|
Environment
|
Working temperature
|
-40℃～+85℃
|
|
Storage temperature
|
-40℃～+85℃
|
|
Anti vibration performance
|
100g
|
|
|
Protective performance
|
IP67
|
|
Electromagnetic compatibility
|
According to EN61000 and GBT17626
|
|
MTBF
|
≥40000 hours/time
|
|
Insulation resistance
|
≥100 Mega ohm
|
|
Impact resistance
|
100g@11ms、3 Axial Direction (Half Sinusoid)
|
|
Anti vibration
|
10grms、10～1000Hz
|

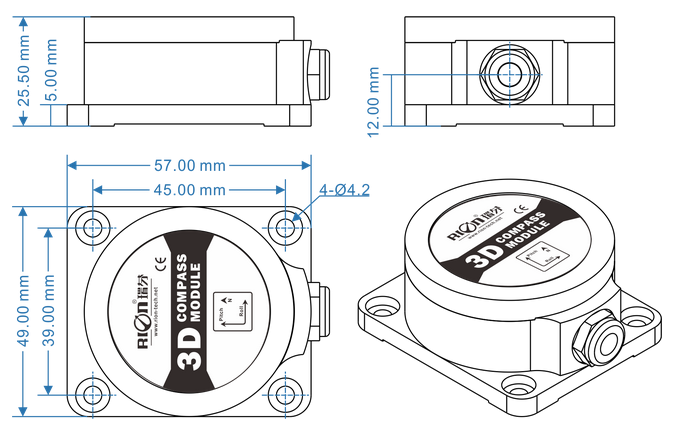

Dimension
