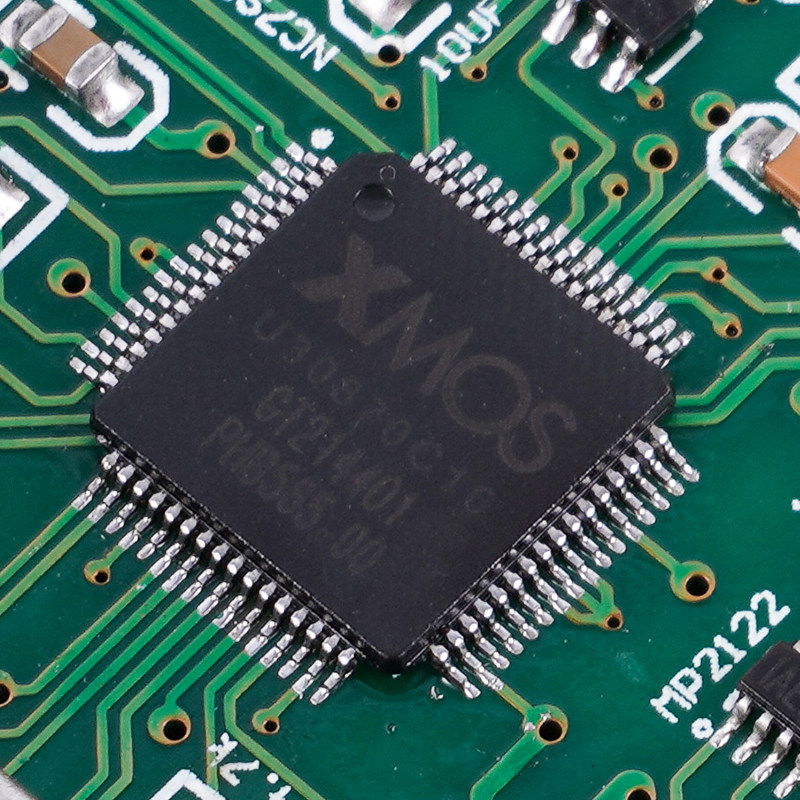

The second-generation XMOS chip of XU208 has twice the memory capacity of U8 and a terrifying computing speed of 1000MIPS, which is twice as fast as U8's 500MIPS.

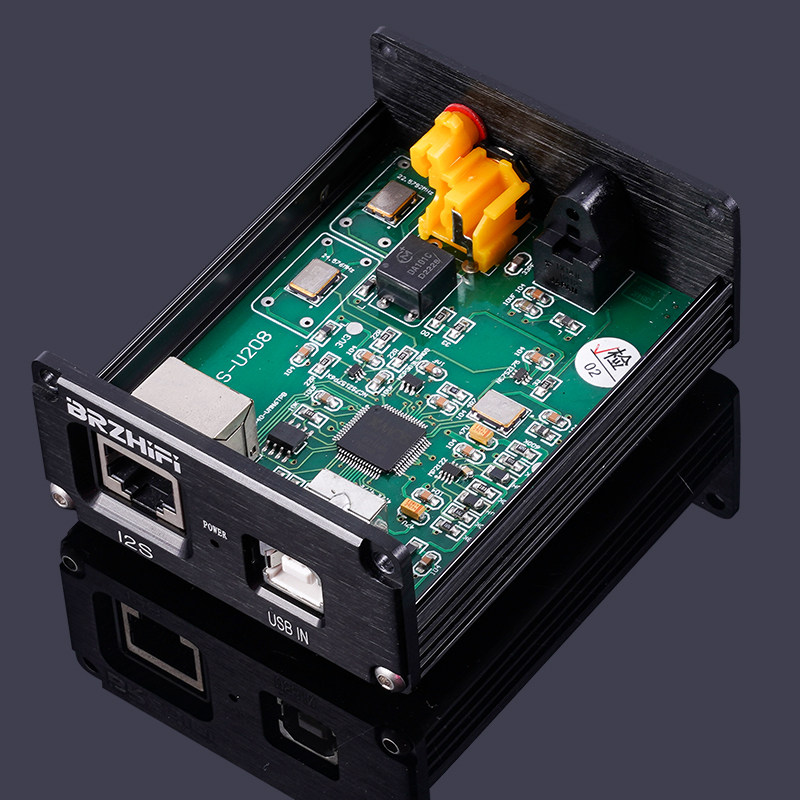

The new XMOS interface U8 upgraded version adopts the USB interface developed by the second-generation XMOS chip XU208, and also supports firmware upgrade
Level of interface. The schematic and firmware (including XMOS and CPLD) are independently developed by us and are not public versions
XMOS's USB audio asynchronous reception scheme is widely recognized as one of the excellent asynchronous USB audio schemes to date. Widely used by manufacturers, it has almost become the de facto standard for USB audio applications.
The core of XMOS is exceptionally powerful, with 8 micro cores working at 500MHz. These processing capabilities can be used to process USB audio data, which is like killing a chicken with a knife, ensuring smooth and seamless communication of USB. There will be no popping sounds from other low-end USB solutions. Jitter can be as low as 4.6ps
Adopting XMOS-U208 core and new solution, supporting 32B 384kHz asynchronous transmission
Upgraded and optimized the clock circuit, with two crystal oscillator output interfaces for 44.1/88.2/176.4/352.8Khz and 48/96/192/384Khz respectively, equipped with all mainstream interfaces to improve playability
Brand: BRZHIFI

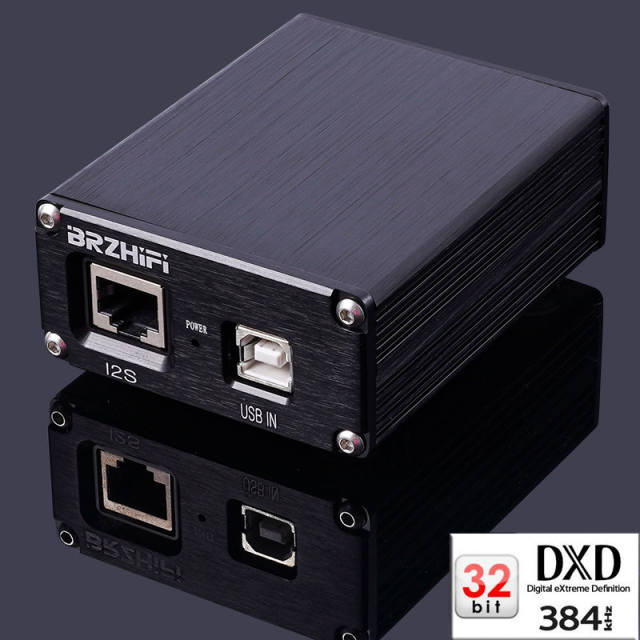

Product Name: XMOS Digital Audio system
Input: USB data cable
Output: coaxial, fiber optic, IIS (RJ45 network port), AES/EBU
Bit depth: 16bit, 24bit, 32bit

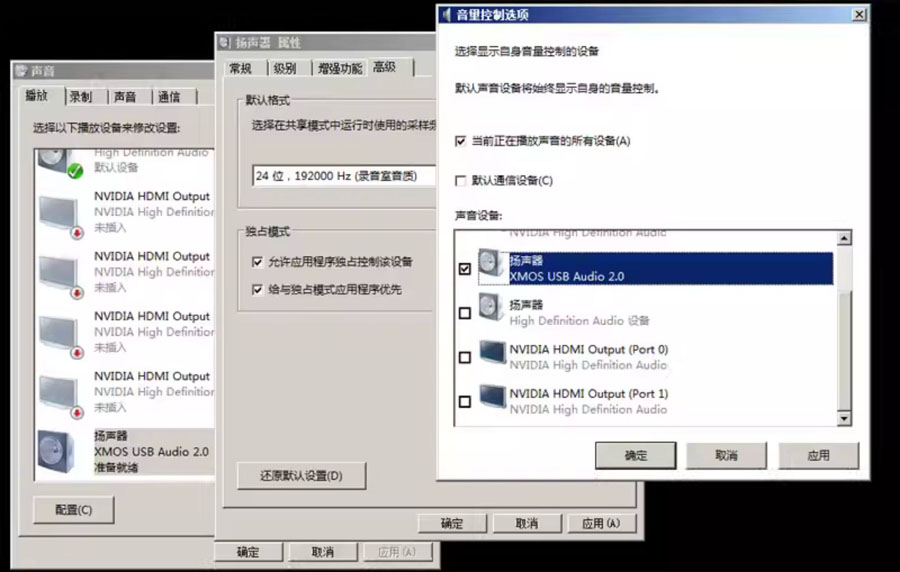

Environment: Windows/MAC/Some mobile devices (phones, tablets) Sampling rate support:
PCM: 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz, 352.8kHz, 384kHz (coaxial, fiber optic, AES only supports 192K, IIS transmission is required for 192K and above)
DSD: DSD64, DSD128, DSD256 (2.822, 3.072, 5.644, 6.144, 11.2896, and 12.288MHz) (DSD requires Using IIS for transmission and requiring DAC support)
Dimensions: 68.5 x 33 x 88
