Principle Introduction:

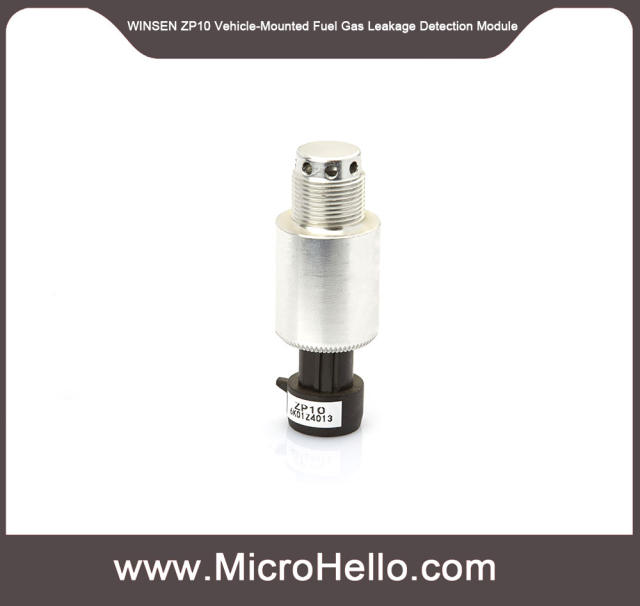

ZP10 adopts vehicle-mounted semiconductor sensor and vehicle-mounted micro-processor, which assure the testing accuracy, and meet the strict temperature requirement in the vehicle. It is specific designed for fuel gas leak alarm. The below black base uses automotive-specific socket, with dedicated waterproof harness connector. There are two kinds of controller as supporting, Z101 and Z102. Every controller can connect with to probes, connecting to the engine and cylinder position through vehicle-mounted harness. It will detect leakage all the moments to protect driving safety.
Applications :
It is widely used for complete device development of vehicle-mounted flue gas leak alarm and combustible gas detection in the vehicle
Technical parameters :
Tips:For more parameter information, please refer to the latest manual provided by salesman.
Model |
ZP10 |
Detection Gas |
Natural gas, LPG, Manufactured Gas |
Detection range |
1~25%LEL |
Response Time |
< 30s |
Resume Time |
< 30s |
Working Voltage |
DC 6~42V |
Working Current |
< 80mA |
Output |
1 Signal Output |
Accuracy |
±4%LEL( under room temperature) |
Expected Life |
> 1 year |
Working Environment |
Temperature:-20~85°C |
Humidity:20%~90%RH |
Storage Environment |
Temperature:-20~70°C |
Humidity:20%~90%RH |
Size |
Φ23×60.5mm |
Reference Circuit :
