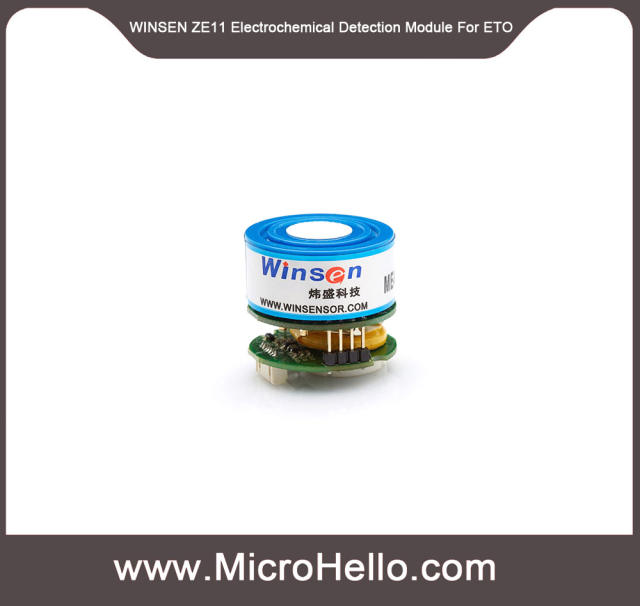

WINSEN ZE11 Electrochemical Detection Module target Gas: Benzene, Dimethyl Benzene, Ethylene Oxide, Chloro Ethylene

Name: WINSEN ZE11 Electrochemical Detection Module target Gas: Benzene, Dimethyl Benzene, Ethylene Oxide, Chloro Ethylene
Brand: MicroHello
SKU: ZE11-001
Price: 320 USD
Availability: InStock

SKU: ZE11-001

0.0 (0)

0 Sold

$320.00 ~~$890.00~~

• Detection Gas: benzene, dimethyl benzene, ethylene oxide, chloro ethylene
• Working Principle: Electrochemical
• Output Signal: DAC, UART, voltage signal

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

Description

Principle Introduction:
ZE11 is a general-purpose and high-performance electrochemical module. It can detect the benzene, dimethyl benzene, ethylene, chloro ethylene based on electrochemical principle, it has good selectivity and stability. A temperature sensor is built-in for temperature compensation. It has the digital output and analog voltage output at the same time which facilities the usage and calibration and shorten the development period. It is a combination of mature electrochemical detection principle and sophisticated circuit design, to meet customers’ different detection needs.

Applications :
Petroleum and chemical industry, environment protection filed, detection of benzene、dimethyl benzene、ethylene oxide、chloro ethylene and vinyl benzene

Technical parameters :
Tips:For more parameter information, please refer to the latest manual provided by salesman.

Model No.	ZE11
Target Gas	benzene、dimethyl benzene、 ethylene oxide、chloro ethylene
Preheat time	≤3 Min
Response time	≤60 Sec
Resume time	≤60 Sec
Resolution	≤0.5 ppm
Working Voltage	DC 5.0V±0.1V
Output Data	DAC(0.4～2V) standard voltage signal
	UART Output
	Sensor amplified voltage signal
Working Life	2 years
Operating Environment	Temp.: -20～50℃
Operating Environment	Humidity.: 15%RH-90％RH (no condensation)
Storage Environment	Temp.: 20～25℃
Dimension	Ø32mm*31.2mm
