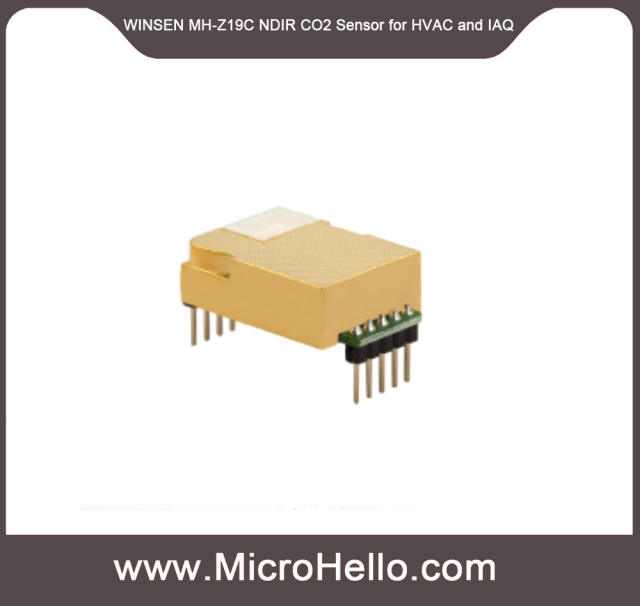

WINSEN MH-Z19C NDIR CO2 Sensor for HVAC and IAQ

Name: WINSEN MH-Z19C NDIR CO2 Sensor for HVAC and IAQ
Brand: MicroHello
SKU: MH-Z19Z19C-001
Price: 41 USD
Availability: InStock

SKU: MH-Z19Z19C-001

0.0 (0)

0 Sold

$41.00 ~~$123.00~~

• Target gas: Carbon Dioxide, CO2
• Range: CO2(400-2000ppm/400-5000ppm)
• Application: HVAC, building ventilation system, indoor air quality monitoring system

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

Description

Principle Introduction:
MH-Z19Z19C NDIR infrared gas module is a common type, small size sensor, using non non-di spersive infrared (NDIR) principle to detect the existence of CO2 in the air, with good selectivity, nonnon-oxygen dependent and long life. Built Built-in temperature compensation; and it has UART output and PWM output. It is developed by the tight integration of m ature infrared absorbing gas detection technology, precision optical circuit design and superior circuit design.

Applications :
MH-Z19C NDIR infrared gas module is widely used in
* HVAC refrigeration
*Indoor air quality monitoring.
*Smart home appliances
*School
*Air cleaner

Technical parameters :

Tips:For more parameter information, please refer to the latest manual provided by salesman.

Product Model	MH-Z19C
Target Gas	CO2
Working voltage	5.0 ± 0.1V DC
Average current	< 40mA(@5V)
Peak current	125mA (@5V)
Interface level	3.3 V(Compatible with 5V)
Measuring range	refer to Table 2
Output signal	UART(TTL interface level 3.3V)
	PWM

Preheat time	1 min
Response Time	T90< 120 s
Working temperature	-10 ~ 50 ℃
Working humidity	0~ 95% RH (No condensation)
Dimension	33 mm×20 mm×9 mm (L×W×H)
Weight	5g
Lifespan	> 5 years
