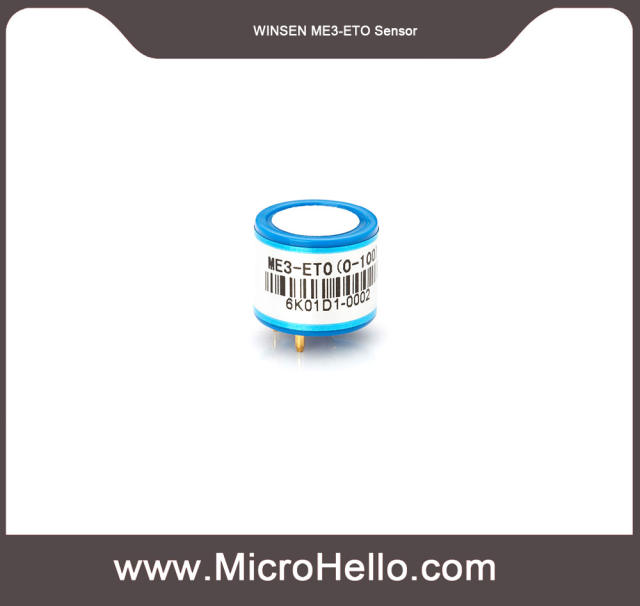

WINSEN ME3-ETO Gas Sensor 0~20ppm ETO industrial and environmental protectionl fields

Name: WINSEN ME3-ETO Gas Sensor 0~20ppm ETO industrial and environmental protectionl fields
Brand: MicroHello
SKU: ME3-ETO-0001
Price: 149 USD
Availability: InStock

SKU: ME3-ETO-0001

0.0 (0)

0 Sold

$149.00 ~~$445.00~~

• Detection Gas: ETO
• Detection Range: 0~20ppm ETO
• Application: ETO industrial and environmental protectionl fields

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

Description

Principle Introduction:
Winsen Electronics, as a professional gas sensor manufacturer, produce ETO gas sensor, industrial ETO sensor, using fuel cell / electrochemical working principle.
ME3-ETO electrochemical sensor detect gas concentration by measuring current based on the electrochemical principle, which utilizes the electrochemical oxidation process of target gas on the working electrode inside the electrolytic cell, the current produced in electrochemical reaction of the target gas are in direct proportion with its concentration while following Faraday law, then concentration of the gas could be get by measuring value of current.

Applications :
Widely used in industrial and environmental protectionl fields

Technical parameters :
Tips:For more parameter information, please refer to the latest manual provided by salesman.

Item	Parameter
Detection gas	CO
Measurement range	0~1000ppm
Max detecting concentration	2000ppm
Sensitivity	(0.070±0.015)µA/ppm
Resolution ratio	0.5ppm
Response time (T90)	<20S
Bias voltage	0mV
Load resistance (recommend)	10Ω
Repeatability	<2%output value
Stability (/month)	<5%
Output Linearity	linear
Zero drift (-20℃~40℃)	10ppm
Storage temperature	-20℃~50℃
Storage Humidity	15%~90%RH
Pressure range (kPa)	90-110
Anticipated using life	3 years
