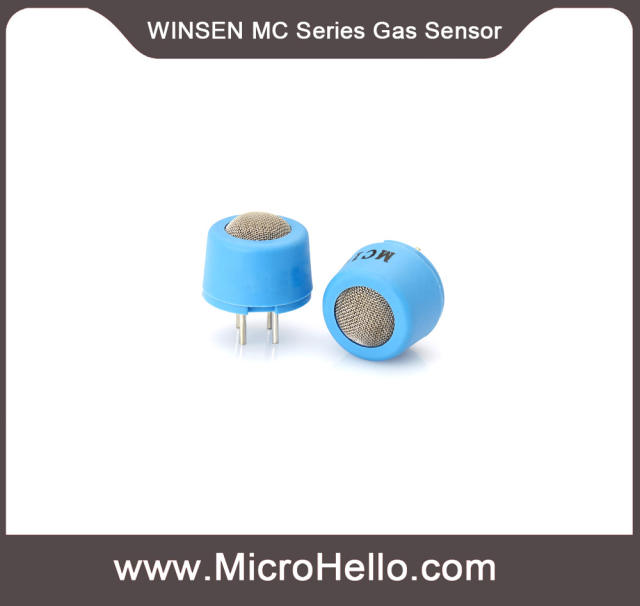

WINSEN MC101 Catalytic Flammable Gas Sensor Methane Sensor

Name: WINSEN MC101 Catalytic Flammable Gas Sensor Methane Sensor
Brand: MicroHello
SKU: MC101-0001
Price: 3.8 USD
Availability: InStock

SKU: MC101-0001

0.0 (0)

0 Sold

$3.80 ~~$9.00~~

• Detection range: 0-100%LEL combustible gas
• Gas: natural gas, LPG, CO and alkanes ects flammable gas
• Application: combustible gas leakage alarm system, combustible gas detector and gas concentration meter, methane sensor

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

Description

Principle Introduction:
Winsen Electronics, research and produce MC101 catalytic combustion/flammable gas sensor, with 0~100%LEL detection range, gas sensor with linear output.
MC101 adopts catalytic combustion principle, and its two arms of electric bridge consists of a test element and a compensate element. The resistance of the test element rises once it meets the combustible gases, in the same time, the output voltage of the bridge changes and the voltage variation rises in direct proportion to the gas concentration. The compensate element, as a conference, has the function of compensating temperature and humidity.

Applications :
It is widely used in industrial occasion to detect the concentration of natural gas, LPG, CO and alkanes.
It is also used in combustible gas leakage alarm system, combustible gas detector and gas concentration meter and so on.

Technical parameters :

Tips:For more parameter information, please refer to the latest manual provided by salesman.

Model		MC101
Sensor Type		Catalytic Type
Standard Encapsulation		Plastic
Working voltage(V)		3.0±0.1
Working current(mA)		110±10
Sensitivity (mV)	1% CH4	25～50
	1% C3H8	30～70
Linearity		≤5%
Measuring range(%LEL)		0～100
Response Time (90%)		≤10s
Recovery Time (90%)		≤30s
Working Environment		-40～+70℃ <95%RH
Storage Environment		-20～+70℃ <95%RH
