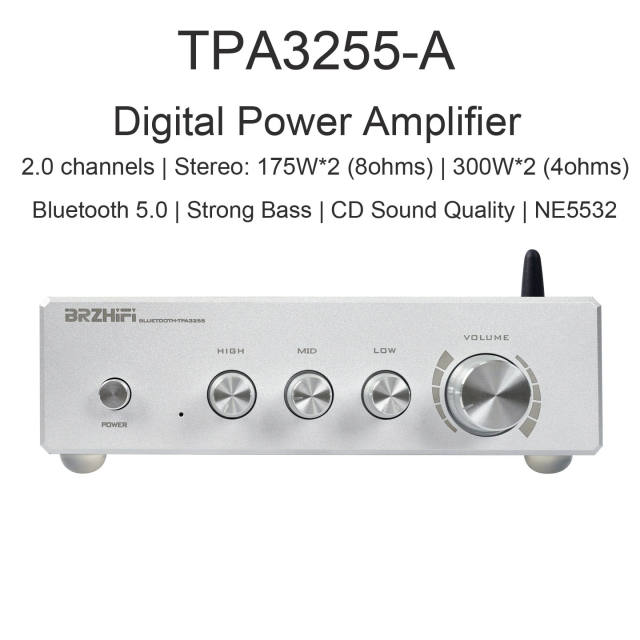

Product description:
TPA3255 is a high-performance Class D power amplifier chip that boasts Class D efficiency and delivers truly high-end audio quality. This device features an advanced integrated feedback design and proprietary high-speed gate driver error correction function (PurePath™ Ultra HD). This technology enables the device to maintain ultra-low distortion across the entire audio frequency band while exhibiting excellent sound quality. The device operates in AD mode, capable of driving up to 2 x 315W/4R loads and 2 x 150W (unclipped power)/8R loads at 10% THD, and features a 2 VRMS analog input interface, supporting seamless connection with high-performance DACs such as TI's PCM5242. In addition to excellent audio performance, the TPA3255 also combines two major advantages: high power efficiency and ultra-low power level idle losses (below 2.5W). This is achieved through the use of 85mR MOSFETs and an optimized gate driver solution, which significantly reduces idle losses compared to traditional discrete implementations.
Product Specifications

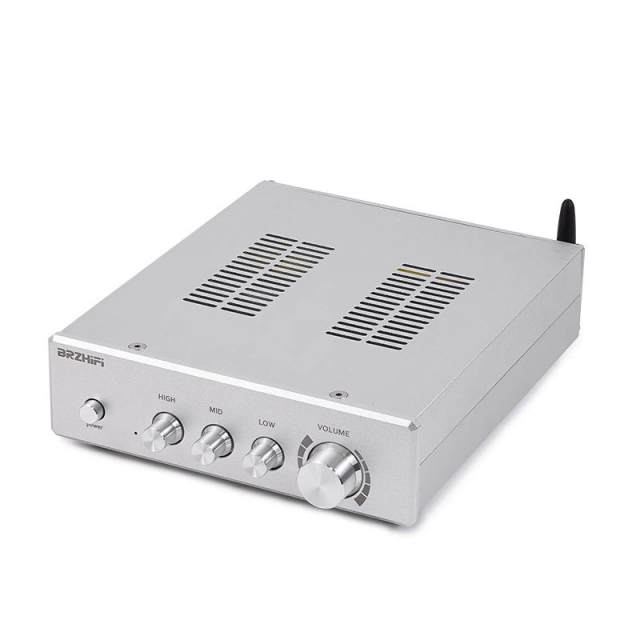

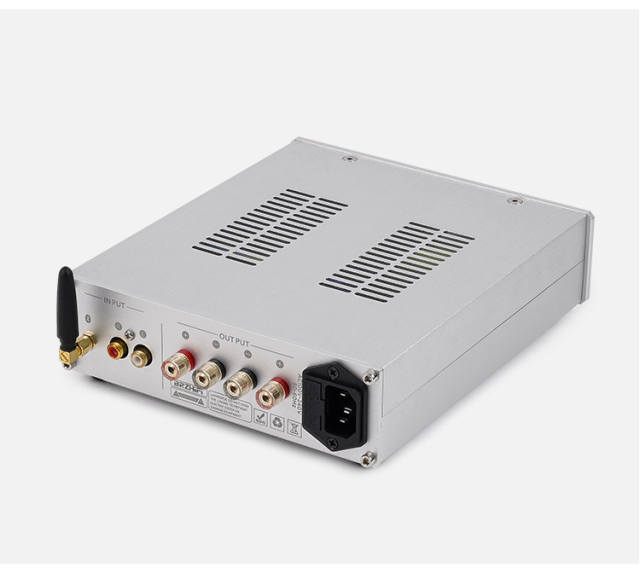

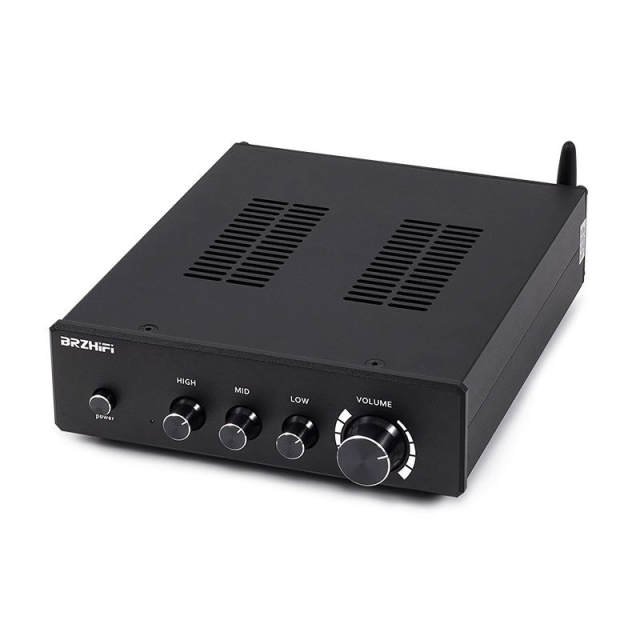

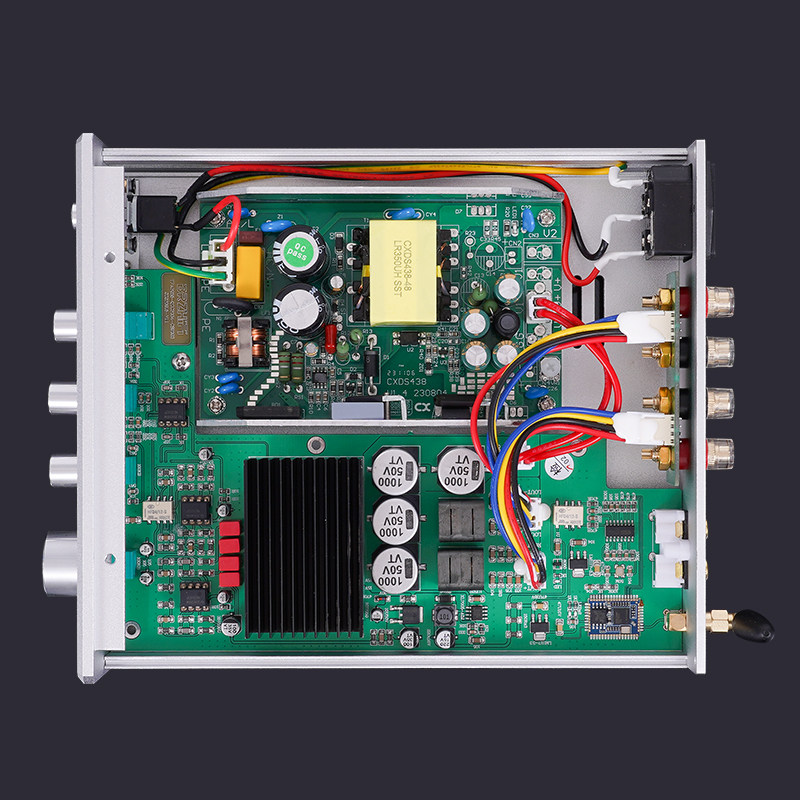

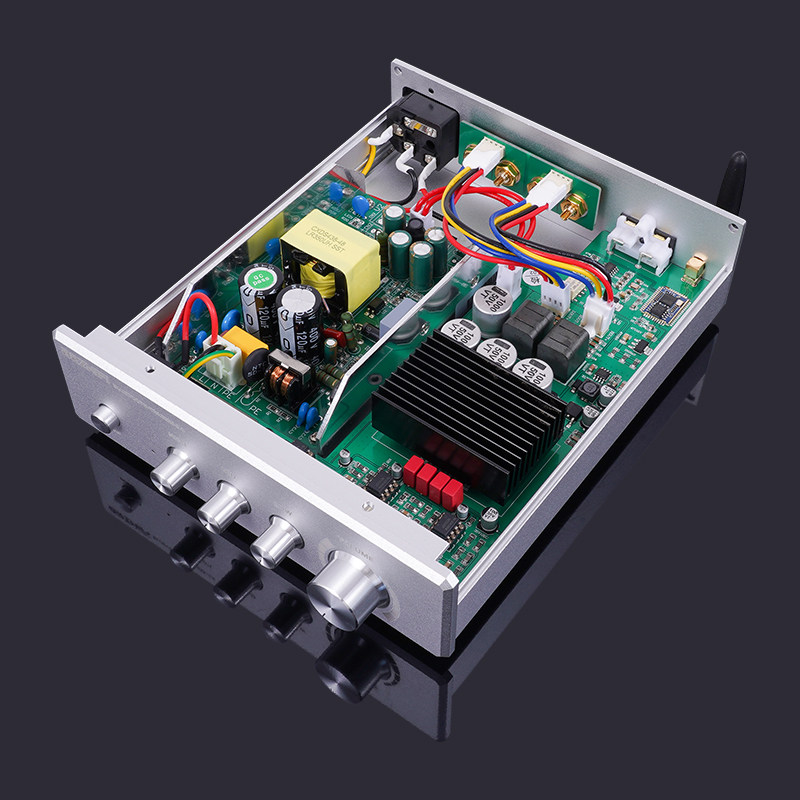

This device is developed and produced according to standard products, with all components being original and genuine. It is equipped with a QCC3034 Bluetooth 5.0 chip to enable wireless music playback with various portable products. The device is powered directly by a 220V power supply, making it convenient to use. The all-aluminum chassis is crafted with precision and ensures good heat dissipation.

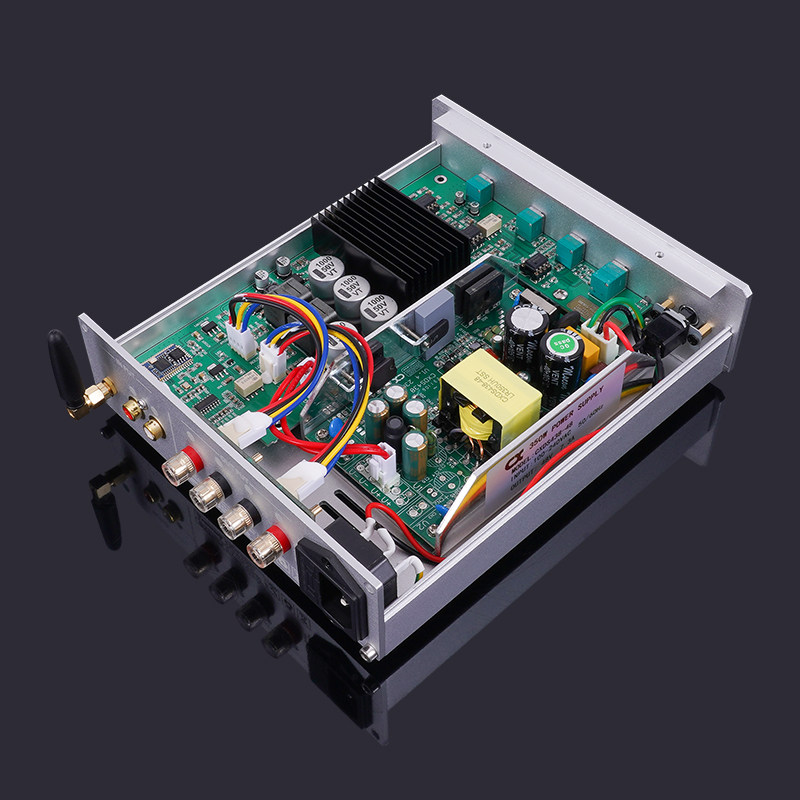

►Adopting the original TPA3255 chip
►Equipped with a built-in high-power HIFI dedicated high-efficiency switching power supply, directly plug-in 220V
►The use of high-precision chip resistors ensures a good signal-to-noise ratio for the entire device.
►Using audio-specific inductors ensures a crisp and powerful sound.
Basic performance parameters:
Working mode: Type D
Operating voltage: AC 100-240V (international voltages are all compatible)
Static current: 60mA
Work efficiency: >90%
Output power: 300W/4Ω, distortion 10%
175W/8Ω, distortion 10%
260W/4Ω, distortion 1%
150W/8Ω, distortion 1%
Frequency response: 20Hz to 20KHz
Bluetooth protocol: SBC/AAC/APTX/APTX-HD
Dynamic range: >100 dB
Signal-to-Noise Ratio: (SNR) > 111dB
Overall dimensions: 183*52*189MM
Overall weight: 1.45KG
