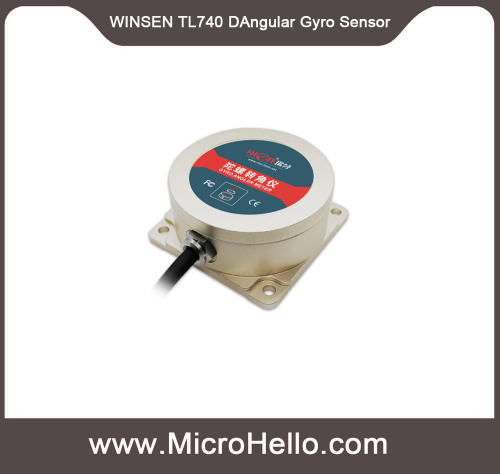

TL-740D Angular Gyro Sensor RS232/RS485 output optional
●Strong vibration resistance
●Light weight
●Long life,strong stability
●Compact & light design
●RS232/RS485 output optional
●DC9~36V power supply
General Description
TL740D is our newly developed horizontal azimuth angular gyro sensor based on latest MEMS inertial measurement platform , by means of the dynamic attitude algorithm for the angular velocity of gyroscope ,it can simultaneously output carrier’s azimuth angle .The product inernal integrated RION’s Patent Inertial navigation algorithm, through the model of attitude angle data fusion , can solve the gyro short time drift problem as much as possible .
This product is specially used for robot car, AVG vehicle azimuth orientation, attitude control and other related applications of the UAV, instead of the traditional robot vehicle magnetic bar guide shortcomings, no need at the site layout of magnetic stripe, is the necessary navigation components for the next generation of robot vehicle automatic tracing and driving.
Technical Data
Parameters |
TL740D |
Mesuring range |
Azimuth Angle (±180) |
Acquisition bandwidth (Hz) |
>100 |
Resolution(°) |
0.01 |
Azimuth accuracy (°/min) |
<0.1 |
Nonlinear |
0.1% of FS |
Max angle rate (°/s) |
≥150 |
Accelerometer range (g) |
±4 |
Acceleroemter resultuion(g) |
0.001 |
Acceleroemter accuracy(mg) |
5 |
Starting time(s) |
5(Static) |
Input Voltage(V) |
+9~36V |
Current (mA) |
60(12V) |
Working Temp.(℃) |
-40 ~ +85 |
Storage Temp(℃) |
-40 ~ +85 |
Vibration(g) |
5g~10g |
Impact(g) |
200g pk,2ms,½sine |
Working life |
10 years |
Output rate |
5Hz、15Hz、25Hz、50Hz can set |
Output signal |
RS232 or RS485 |
MTBF |
≥50000 hours /times |
Insulation resistance |
≥100 Megohm |
Impact resistance |
100g@11ms、3Times/Axis(half sinusoid) |
Anti-vibration |
10grms、10~1000Hz |
Protecting |
IP67 |
Weight |
152g(matched standard cable) |
GYRO HOST COMPUTER SOFTWAREV1.2 TL series standard software_V1.3 TL series gyroscope three axis software_V1.5 TL740-Modbus (neutral) softwareV1.3 |
