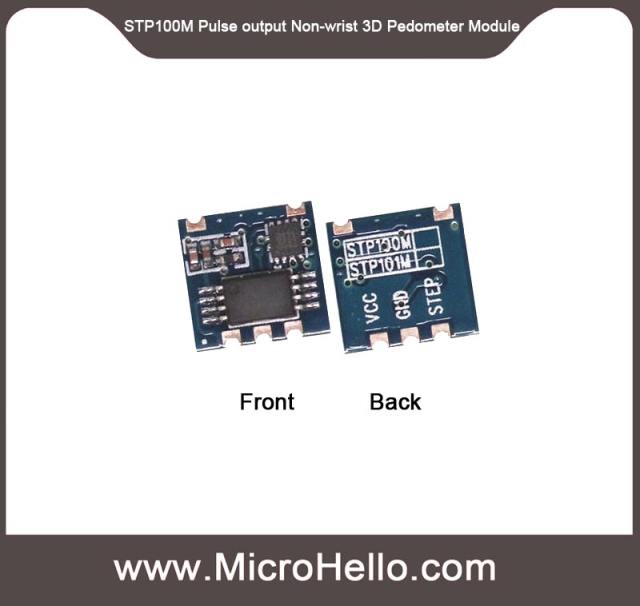

STP100M Pulse Output For Non-Wrist Application 3D Pedometer Module

Name: STP100M Pulse Output For Non-Wrist Application 3D Pedometer Module
Brand: MicroHello
SKU: STP100M-001
Price: 7.5 USD
Availability: InStock

SKU: STP100M-001

0.0 (0)

0 Sold

$7.50 ~~$23.00~~

STP100M is a 3D pedometer functional module which include a G-sensor and MCU. It has adopted the pulse-type interface, with the 3D MEMS sensor (G sensor) and high precision of 3D pedometer algorithm, it can give a precisely pedometer in any direction. Thi

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

Description

STP100M is a 3D pedometer functional module which include a G-sensor and MCU. It has adopted the pulse-type interface, with the 3D MEMS sensor (G sensor) and high precision of 3D pedometer algorithm, it can give a precisely pedometer in any direction. This module has the characteristics of small size, low power and etc. The simple digital interface ensures it can be easily embedded in various kinds of pedometer functional system.
★Note: The algorithm of our pedometer is adjustable according to customer’s requirement. We can provide the pedometer for shoes, table class pedometer and bracelet pedometer wearing on wrist, pedometer wearing on waist and pedometer putting inside the pocket.Pls indicate clearly when purchasing.

Features:

High precision 3D pedometer algorithm
Ultra-small size
Low sleep current
Pulse output interface

Application

3D pedometer
MP3 pedometer
Outdoor handheld
Healthcare products
Pedometer shoes

Parameters	Condition		Performance		Unit
Parameters	Condition	Min.	Typ.	Max.	Unit
Working voltage		2.3	3	3.6	v
Working current	@3V		80		uA
Sleep current			< 4		uA
Step resolution			1		Step
Pedometer wrror	Uniform Working		±3%		Step
Working temperature		-10		50	℃
Storage temperature		-10		50	℃
