Overview
The MDK5 (Keil) complete project template features a clear project structure and is ready for configuration. Each onboard hardware module (QSPI Flash, EEPROM, Ethernet, dual 485, dual CAN, RTC, SD card, USB, LCD, etc.) comes with an independent, compilable, and tested demo routine. You can quickly verify the integrity of hardware functionality and use it as an excellent reference code library for your project development without the need to write low-level drivers yourself, by simply downloading with one click.
Product Highlights
[Storage Expansion]
QSPI W25Q128 FLASH + AT24C02 EEPROM + MicrOTF card slot, ensuring worry-free massive data storage.
[Dual-channel network communication]
It integrates LAN8720 Ethernet, supporting high-speed wired connections; and features two FD-CAN buses, suitable for automotive and industrial networks.
[Reliable Serial Communication]
It provides two channels of isolated 485 interfaces, suitable for long-distance, high anti-interference communication scenarios.
user-friendly design
Independent CR1220RTC battery holder ensures data retention during power outages; 3 user buttons + 2 LEDs facilitate debugging; SPI LCD interface allows for easy screen driving; USB Slave interface,
It facilitates connection to the host.
[Stable power supply]
It employs the AMS1117-3.3V voltage regulator chip, supports a 5V DC wide-range voltage input, and provides a clean power supply for the system.
Application scenarios
Industrial automation controller
Internet of Things gateway device
Motor Drive and Complex Control
Rapid validation of product prototype
Scientific Research and Embedded Teaching in Universities

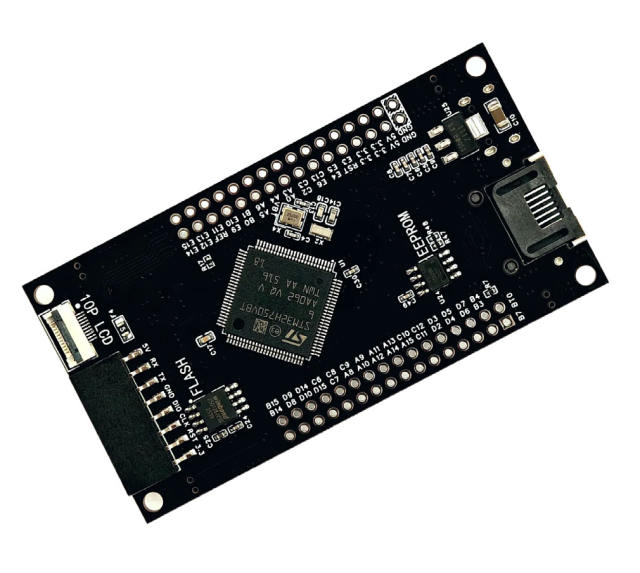

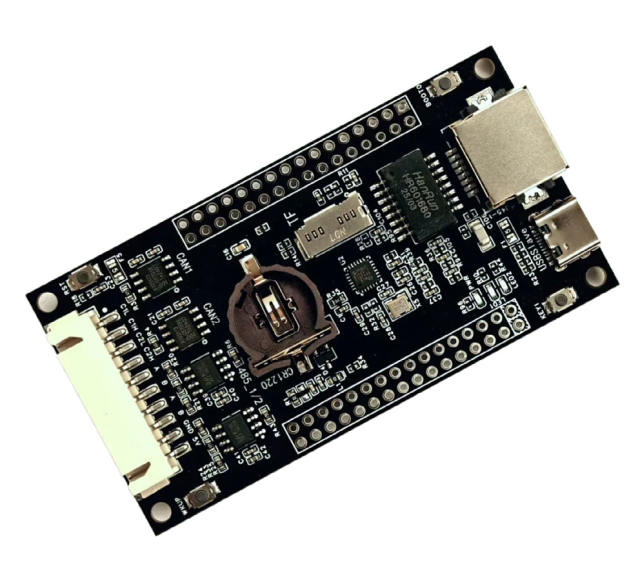

What's on board
LAN8720 Ethernet
2*CANFD
2*RS485
MicroTF
W25Q64 flash
24C02 eeprom
USBHost
UsBslave
SPI LCD socket
RTC
42*81MM
Packaging List
1.STM32 Development Board

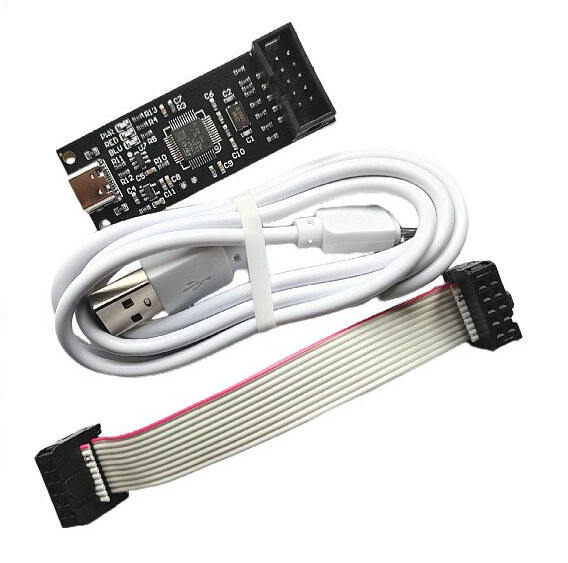

2.Type-C Cable
3.Compiler software MDK5(Keil)
4.Schematic File
5.Source Code corresponding to the on-board modules(Basied on MDK5)
