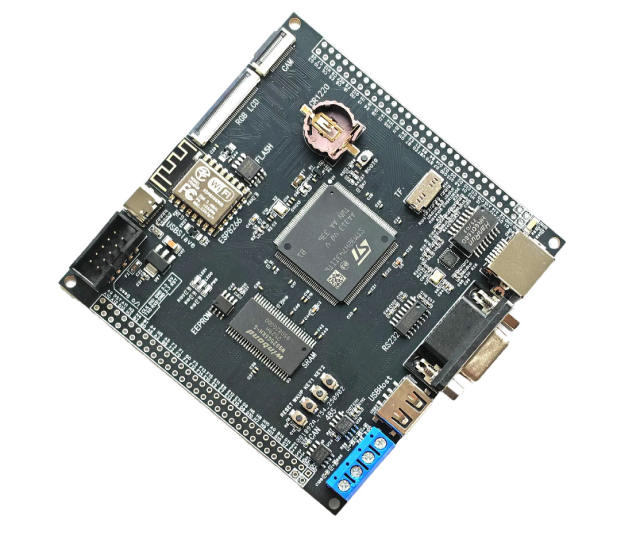

What's on board
LAN 8720A Ethernet
one 485 port
one CAN port
EEPROM
FLASH
USB host
USB slave
RGB LCD interface
camera interface
TF card slot
RS232
ESP8266 WIFI
three user buttons
two user LEDs
RTC clock battery slot etc.
Example Program Provided
Experiment 1: Running LEDs
Experiment 2: Button Input
Experiment 3: External Interrupt
Experiment 4: Serial Port Communication
Experiment 5: Independent Watchdog
Experiment 6: Watchdog
Experiment 7: Basic Timer
Experiment 8: General-Purpose Timer Interrupt
Experiment 9: USB Mouse and Keyboard
Experiment 10: USB Flash Drive (Host)
Experiment 11: USB Virtual Serial Port
Experiment 12: Memory Protection (MPU)
Experiment 13: USB Card Reader (Slave)
Experiment 14: SDRAM
Experiment 15: LTDC LCD (RGB Screen)
Experiment 16: Serial Port IAP
Experiment 17: RTC Real-Time Clock
Experiment 18: Hardware Random Number
Experiment 19-1: PVD Voltage Monitoring
Experiment 19-2: Sleep Mode
Experiment 19-3: Stop Mode
Experiment 19-4: Standby Mode
Experiment 20: DMA
Experiment 21-1: Single-Channel ADC Acquisition
Experiment 21-2: Single-Channel ADC Acquisition
Experiment 21-3: Multi-Channel ADC Acquisition
Experiment 21-4: Single-Channel ADC Oversampling
Experiment 22: Internal Temperature Sensor
Experiment 23: Handwriting Recognition
Experiment 24: T9 Pinyin Input Method
Experiment 25: IIC
Experiment 26: FPU Test
Experiment 27: FLASH Emulating EEPROM
Experiment 28: QSPI
Experiment 29: RS232
Experiment 30: RS485
Experiment 31: Touch Screen
Experiment 32: FDCAN
Experiment 33: Camera OV5640
Experiment 34: Memory Management
Experiment 35: SD Card
Experiment 36: FATFS
Experiment 37: Character Display
Experiment 38: Image Display
Experiment 39: Camera Experiment OV2640
Experiment 39: Camera Experiment OV2640
Experiment 39: Camera Experiment OV2640
Experiment 40: Hardware JPEG Decoding
Experiment 41: Camera OV5640
Experiment 42_1: DSP BasicMath Test
Experiment 42_2: DSP FFT
Experiment 43: UCOSII Experiment 1 - Task Scheduling
Experiment 44: UCOSII Experiment 2 - Semaphore
Experiment 45: UCOSII Experiment 3 - Message Queue
