OverViews
This control board adopts STM32F407ZGT6 high-performance industrial controller, integrates W5500 and LAN8720 dual Ethernet architecture, and is equipped with RS485, CAN, R S232 full industrial communication interfaces. It supports standard PoE network cable power supply (POE module needs to be purchased separately); The onboard Type-C slave and USB-A host have dual USB interfaces, W25Q64, AT24C02, and MiniTF card slots for multiple storage. It reserves 1 OPSPI LCD interface and is equipped with user buttons and status LEDs. It is compatible with standard PLC industrial control enclosures and can be installed on rails. The hardware peripherals are complete and have strong anti-interference ability. It combines high performance, complete interfaces, flexible power supply, rich expansion, and standardized structure. It can meet the landing of commercial projects such as industrial automation, protocol gateways, and IoT monitoring, and is also suitable for learning, research and secondary development, greatly shortening the development cycle and adapting to various industrial control and intelligent device application scenarios.
Product Highlights
Main Control---STM32F407ZGT6
Network---W5500 hardware Ethernet+LAN8720 Ethernet PHY
Interface---1*RS485, 1*CAN, 1*RS232
Power Supply---PoE Ethernet cable power supply, TypeC power supply, pin bank power supply, power supply from programmer
USB---Type-C USB Slave、USB-A USBHost
Storage---W25Q64SPIFlash, AT24C02EEPROM, MiniTF card slot
Peripherals---10pin SPI LCD interface, custom buttons, status LED
Structure---Compatible with standard PLC industrial control shell, supports rail installation
Applications
【1】 High performance industrial controller with sufficient computing power
STM32F407ZGT6168MHz main frequency, large capacity on-chip Flash/RAM, comparable to small PLCs; Support multi task scheduling, complex logical operations, and simultaneous parsing of multiple protocols. Both bare metal and FreeRTOS can run stably, and the industry will not experience frame drops or lag for a long time.
【2】 Dual Ethernet ports, dual scheme redundancy
W5500 hardware TCP/IP: protocol stack hardware solidification, does not occupy MCU resources, strong anti-interference, stable networking, suitable for Modbus TCP, industrial transparent transmission, and fixed protocol industrial control scenarios. LAN8720 external PHY: Paired with STM32 native MAC, it can run LWIP, customize network protocols, and interface with HTTP/MQTT/IoT platforms, with extremely high flexibility in secondary development. Dual network can be used for isolated networking, primary and backup redundancy, and one network for data collection and transmission, suitable for complex industrial sites.
【3】 Fully equipped industrial communication interfaces, no additional expansion required
Integrated RS485+CAN+RS232 three major industrial standard interfaces:
RS485:ModbusRTU、 Networking of frequency converters, instruments, and sensors
CAN bus: CANopen, vehicle communication, multi device bus linkage, industrial distributed control
RS232: A board that covers the vast majority of industrial control communication needs, including old-fashioned industrial control equipment, serial port printing, upper computer debugging, and serial port peripheral docking.
【4】 Standard PoE power supply, simple and worry free wiring
Supports standard Ethernet PoE power supply, allowing one Ethernet cable to simultaneously power and transmit data without the need for additional power cords; Compatible with PoE switches and PoE modules, suitable for installation and wiring in computer rooms, weak current boxes, outdoor sites, and wall mounted equipment.
【5】 Dual USB interface, combining debugging and peripheral expansion
Type USBSlave: firmware download, virtual serial port debugging, upper computer communication, no additional downloader required.
USB AHost: Can connect USB flash drives, keyboard and mouse, USB peripherals, achieve offline log storage, data export, and peripheral expansion.
【6】 Multi layer storage architecture ensures data retention without loss
W25Q64: Store font library, firmware, interface resources, and operation logs
AT24C02: Save device parameters, address, calibration values, and configuration information in case of power failure
MiniTF card slot: expandable large capacity storage, local historical data, file cache, offline upgrade
【7】 Comes with built-in display and human-computer interaction, ready to use out of the box

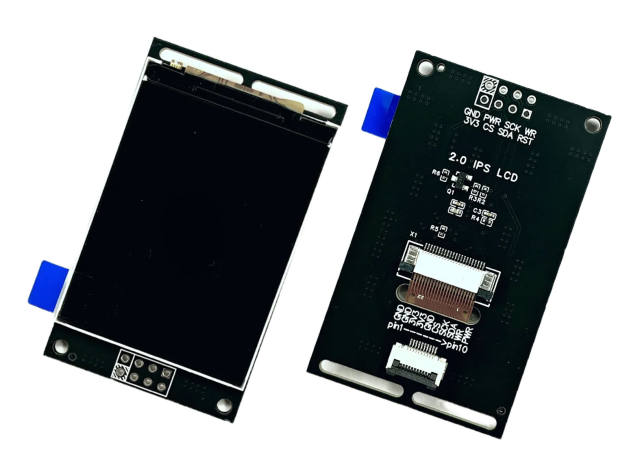

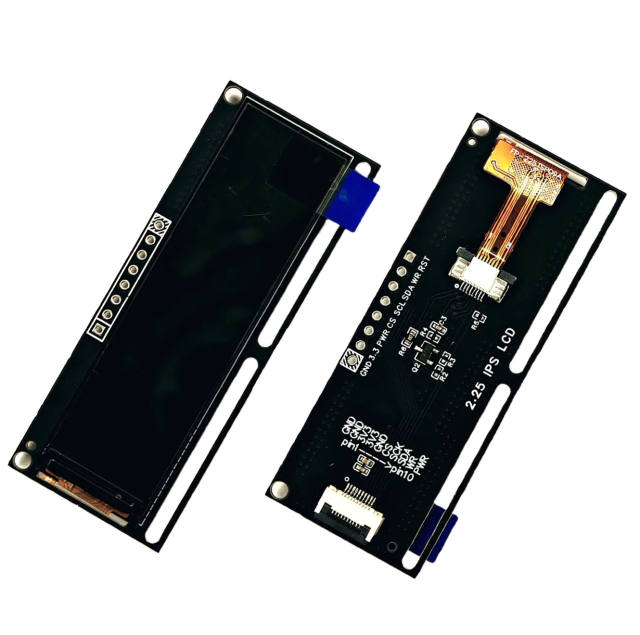

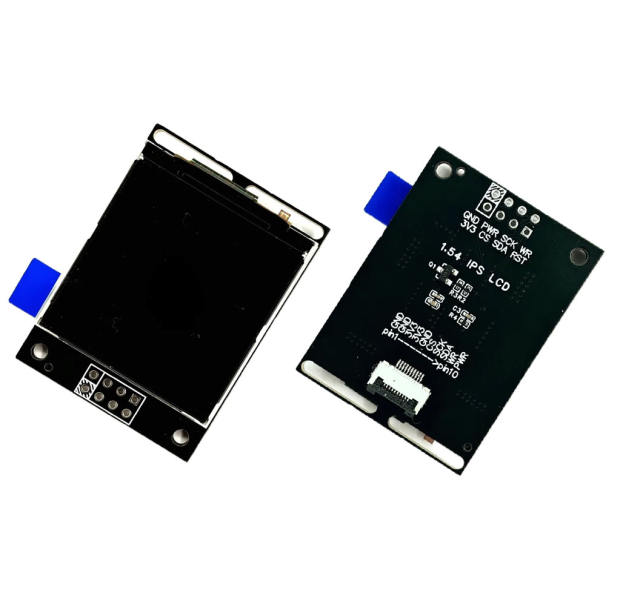

10P standard SPILCD direct insertion interface, compatible with ST7735/ST7789 serial LCD screens, can be used for Chinese UI, parameter settings, status display, and device dashboard; Onboard user buttons+LED, supporting manual configuration, operation/fault status indicator lights.
【8】 Compatible with PLC industrial control shell, industrial finished product
The board is compatible with the universal PLC standard housing, supports DIN rail buckle installation, has an industrial neat layout, strong and weak electrical separation, strong anti-interference ability, and can be directly used as commercial controllers and complete equipment without additional structural design.
【9】 Low development threshold and strong reusability
All peripheral hardware has been pre installed, eliminating the need for self drawing boards and building peripheral circuits; Rich routines and wide protocol compatibility greatly shorten the project development cycle, suitable for personal research and development, enterprise secondary development, and batch OEM.

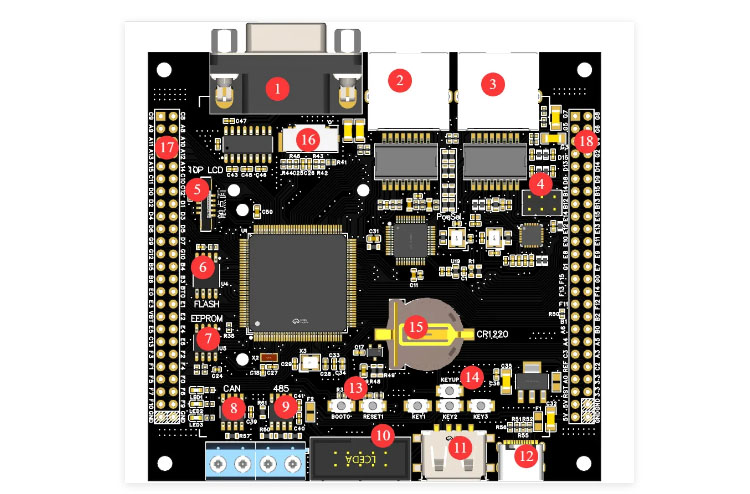

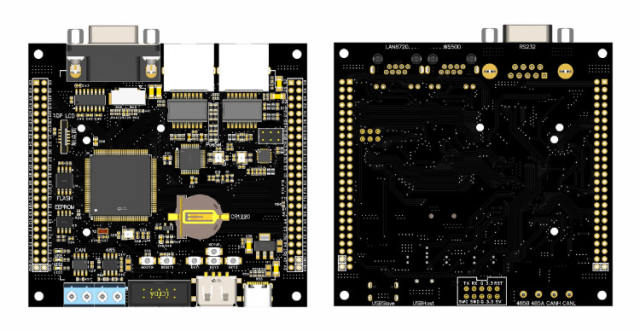

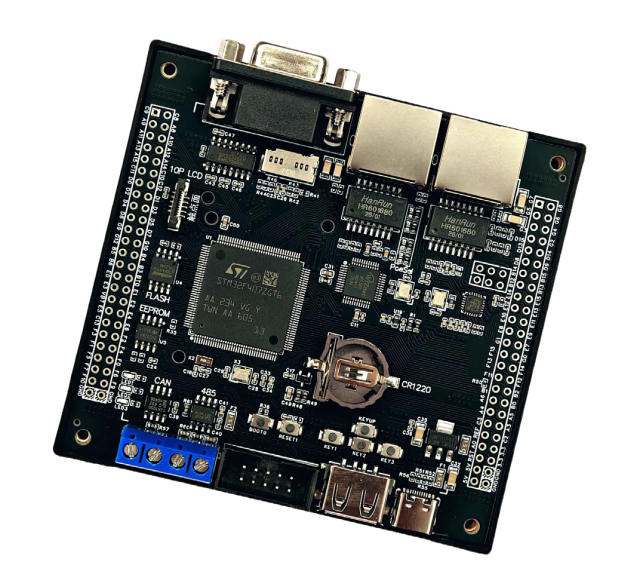

What's on board
【1】 RS232 female port
【2】 Hardware Ethernet W5500 Ethernet cable socket
【3】 LAN8720 external PHY Ethernet port

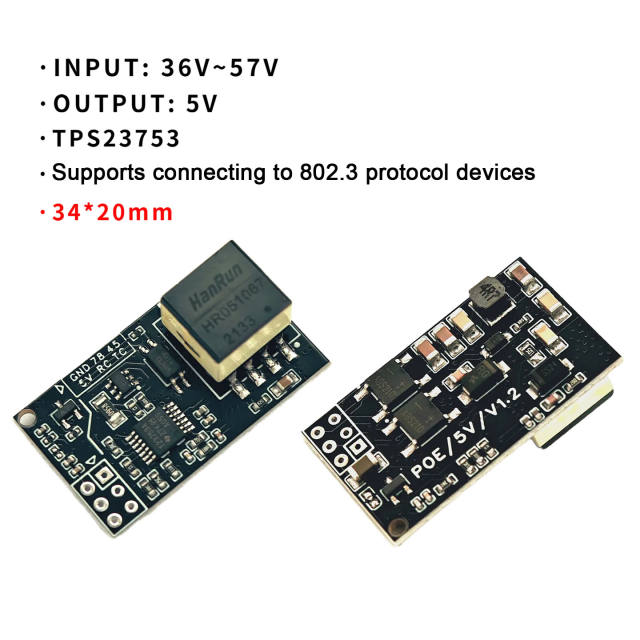

【4】 POE module socket (supports LAN8720 network port by default. If W5500 network port support is required, the corresponding short-circuit resistor needs to be adjusted. Please refer to the schematic diagram for details)
【5】 10P SPI LCD LCD jack
【6】W25Q64 8MB flash
【7】24C02 256B EEPROM
【8】 CAN terminal
【9】 485 terminal

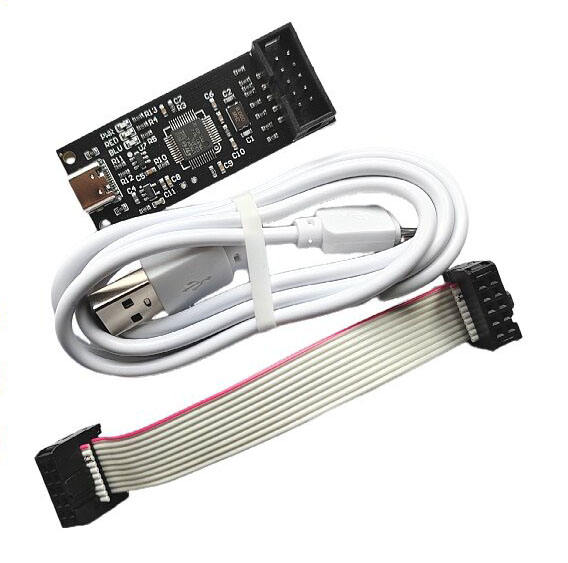

【10】 Supporting downloader socket, supporting jlink/stlink/daplink, etc
【11】 USB hostusb-a interface
【12】 Single chip USB slave typec interface
【13】 Microcontroller reset and boot0 button
【14】 User buttons
【15】 Microcontroller RTC battery holder, battery model CR12220
【16】 Short body miniTF card slot
【 17/18 】 Microcontroller Expansion I0

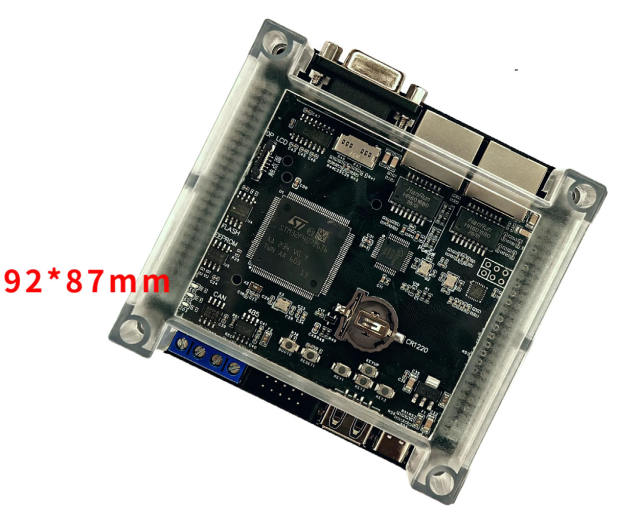

【 19 】 92*87mm
Packaging List
1.STM32 Development Board
2.Compiler software MDK5(Keil)
3.Schematic File
4.Source Code corresponding to the on-board modules(Basied on MDK5)
