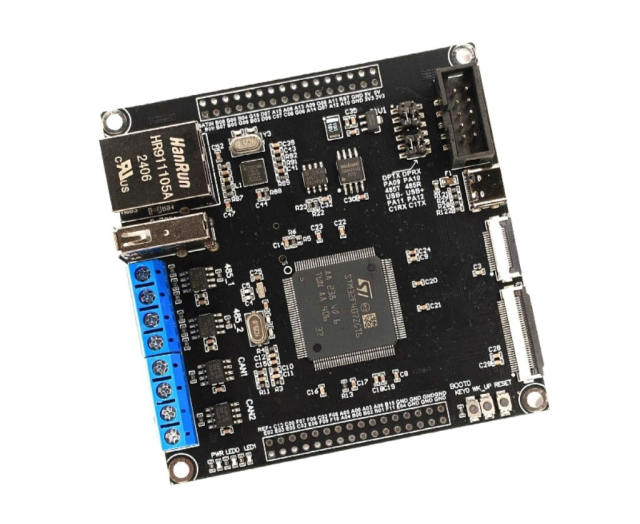

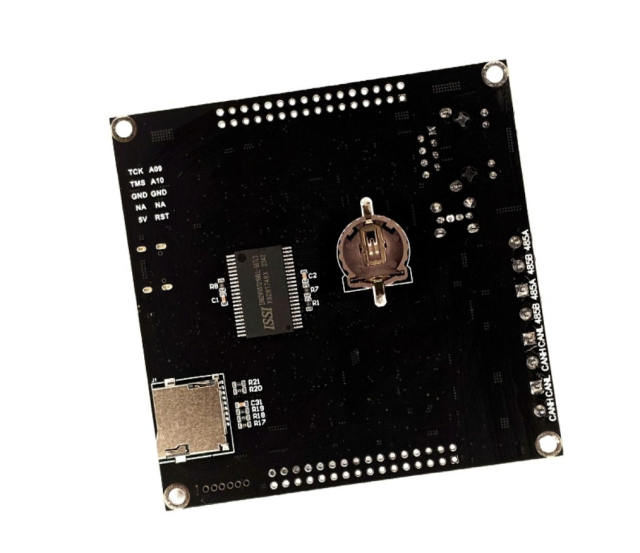

What's on board
Ethernet
two 485 ports
two CAN ports
EEPROM
FLASH
USB host
USB slave
LCD interface
camera interface
SRAM
TF card slot
RTC clock battery slot
Example Program Provided
Experiment 1: Marquee Experiment
Experiment 2: Button Input Experiment
Experiment 3: External Interrupt Experiment
Experiment 4: Serial Communication Experiment
Experiment 5: Independent Watchdog Experiment
Experiment 6: Window Watchdog Experiment
Experiment 7: Basic Timer Interrupt Experiment
Experiment 8: General-Purpose Timer Experiment
Experiment 11: TFTLCD (MCU Screen) Experiment
Experiment 12: USMART Debugging Experiment
Experiment 13: RTC Experiment
Experiment 14: Random Number Generator Experiment
Experiment 15: Low Power Consumption Experiment
Experiment 16: DMA Experiment
Experiment 17: ADC Experiment
Experiment 18: Internal Temperature Sensor Experiment
Experiment 19: DAC Experiment
Experiment 20: IIC Experiment
Experiment 21: SPI Experiment
Experiment 22: Touch Screen Experiment
Experiment 23: FLASH Emulating EEPROM Experiment
Experiment 25: Memory Management Experiment
Experiment 26: SD Card Experiment
Experiment 27: FATFS Experiment
Experiment 28: Chinese Character Display Experiment
Experiment 29: Image Display Experiment
Experiment 31: Video Player Experiment
Experiment 32: FPU Test (Julia Fractal) Experiment
Experiment 33: DSP Test Experiment
Experiment 34: Handwriting Recognition Experiment
Experiment 35: T9 Pinyin Input Method Experiment
Experiment 36: Serial Port IAP Experiment
Experiment 37: USB Card Reader (Slave) Experiment
Experiment 38: USB Virtual Serial Port (Slave)
Experiment 39: FreeRTOS Porting Experiment
Ethernet - TCP Server Mode Test
Ethernet - TCP Client Mode Test
Ethernet - UDP Server Mode Test
Ethernet - UDP Client Mode Test
