STM32 development board STM32F407VET6 DP83848 Ethernet 2*CAN RS485 FLASH EEPROM ESP8266 WIFI LCD TF CARD

Name: STM32 development board STM32F407VET6 DP83848 Ethernet 2*CAN RS485 FLASH EEPROM ESP8266 WIFI LCD TF CARD
Brand: MicroHello
Price: 42 USD
Availability: InStock

0.0 (0)

0 Sold

$42.00 ~~$69.00~~

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

Description

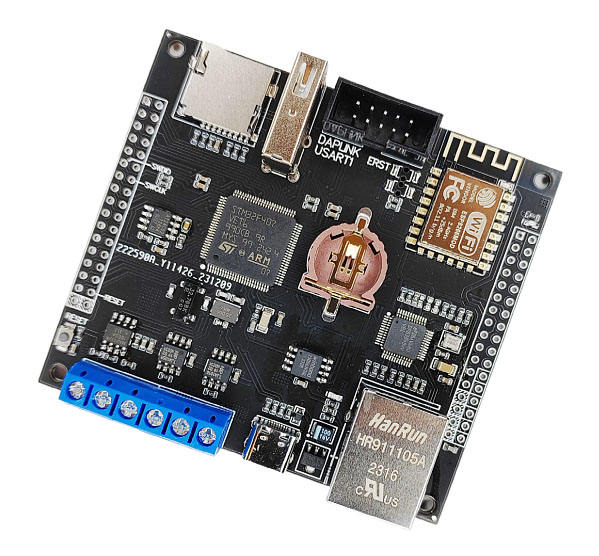

What's on board
DP83848 Ethernet
MicroTF
W25Q128 flash
24C02 eeprom
USBHost
UsBslave
LCD interface
ESP8266 wifi
RS484
2*CAN
RTC
73*82mm
Example Program Provided
USB Slave Interface Card Reader Test
USB Host Interface USB Disk Read/Write Test
Ethernet HTTP Web Server Testing
Ethernet TCP Server Mode Test
Ethernet TCP Client Mode Test
Ethernet UDP Server Mode Test
Ethernet UDP Client Mode Test
ADC Analog Voltage Acquisition Test
CAN1 and CAN2 Communication Test
CRC Verification Test
DAC Analog Voltage Output Test
I2C Read Write 24C02 Test
LED flow light
RS232 Communication Test
RS485 Communication Test
RTC Clock Test
SPI Read Write W25Q64 Test
Timer Interrupt Test
Independent Watchdog Test
