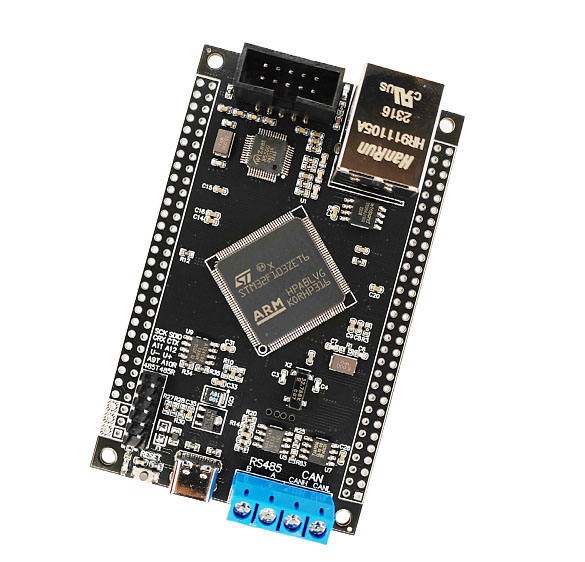

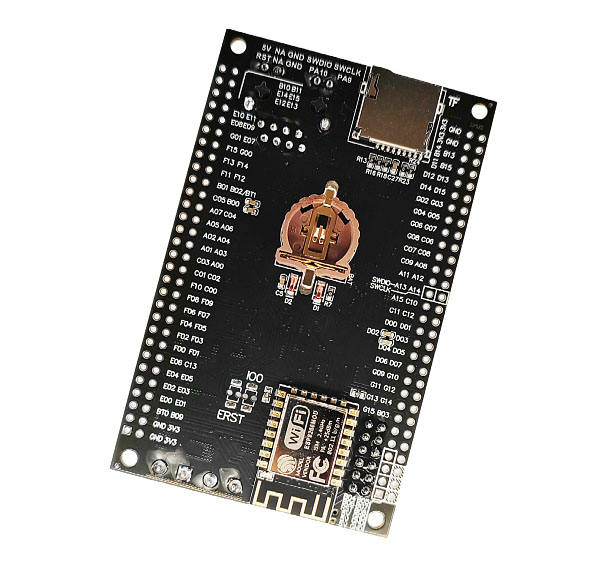

The core board fully reserves the IO of STM32F103ZET6 microcontroller, making it convenient for users to complete their secondary development and design based on the core board. Our store also offers IoT module options such as STM 32+WIFI, STM32+Ethernet, STM32+4G, etc.
The core board provides rich functional testing code, supporting AD conversion, serial communication, timers, W25Q64FLASH read-write (some older development boards do not support it), TCP and UDP communication for 4G modules, network communication for multiple core boards, and cloud server applications such as Alibaba Cloud, Tencent Cloud, TLINK, etc.
What's on board
W5500 Ethernet
MicroTF
W25Q128 flash
24C02 eeprom
CAN
RS485
USBHost
USBslave
RTC
Example Program Provided
Running light experiment
Serial port experiment
Independent watchdog experiment
Window watchdog experiment
PWM output experiment
ADC experiment
IIC experiment
SPI experiment
RS485 experiment
CAN transceiver experiment (between two development boards)
CAN transceiver experiment (on one development board)
FLASH simulation EEPROM experiment
TF card experiment
FATFS experiment
