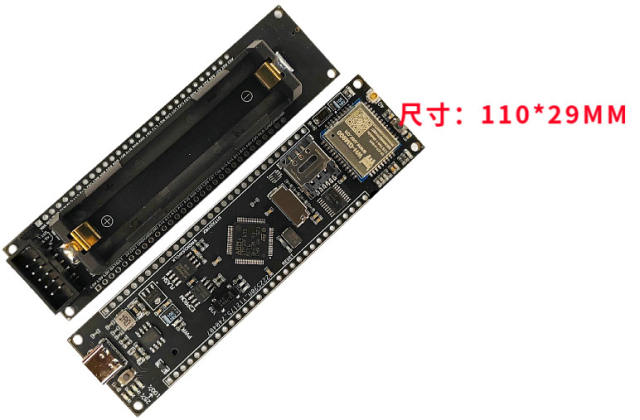

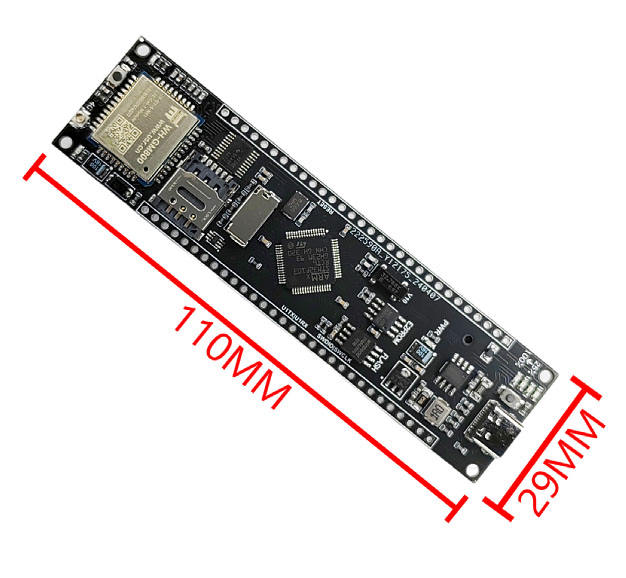

STM32 STM32F103RCT6 4G core board
STM32F103RCT6/4GCAT1/lithium battery charging and discharging
The onboard 4G CAT1 module already has a built-in data card, and the external card slot can be inserted without inserting a card. The 4G module will automatically select the data card for use and can also be configured through commands
The core board fully reserves the IO of STM32F103RCT6 microcontroller, making it convenient for users to complete their secondary development and design based on the core board. Our store also offers IoT module options such as STM 32+WIFI, STM32+Ethernet, STM32+4G, etc.
The core board provides rich functional testing code, supporting AD conversion, serial communication, timers, W25Q64FLASH read and write, 4G module TCP, UDP communication, multi core board networking communication, Alibaba Cloud, Tencent Cloud, TLINK and other cloud server routines.
What's on board
4GCAT1
WIFI ESP8266
TCP
UDP
SERVER
CLIENT
CLOUD
USB slave
MicroTF
W25Q64 flash
24C02 eeprom
Packaging List
1.STM32 Development Board
2.Type-C Cable
3.Compiler software MDK5(Keil)
4.Schematic File
5.Source Code corresponding to the on-board modules(Basied on MDK5)
