Overviews

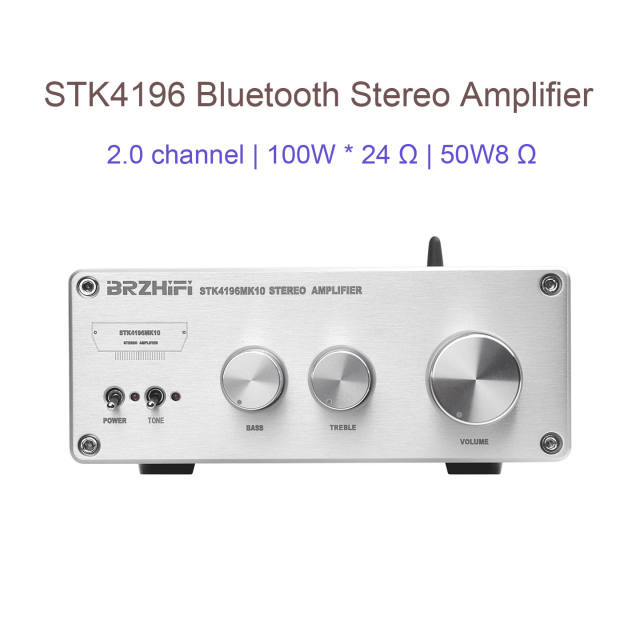

This machine is renowned for its exquisite sound! The STK4196MK10 equipped is a specially tuned power amplifier module customized for audio manufacturers, featuring warm and delicate, gorgeous and atmospheric sound that never gets old after prolonged listening.

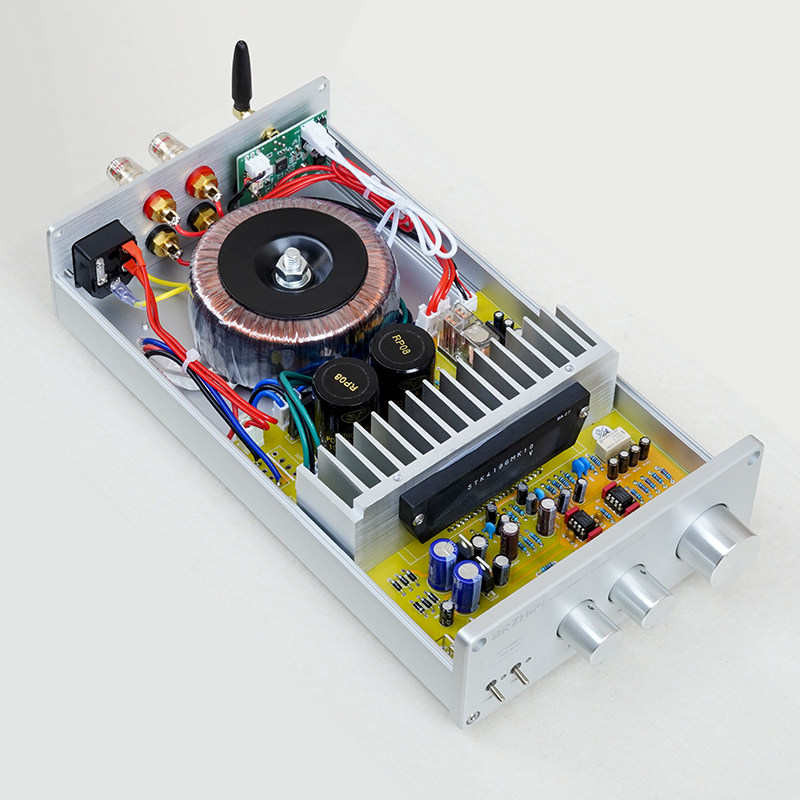

As the saying goes, "The layout determines success or failure." Our machine has analyzed multiple major brand products and finally determined the current layout structure. The rectification and filtering, protection, front-end power supply, and amplification parts are divided into four areas, which should be a relatively reasonable arrangement at present
Power amplifier features: Equipped with a bypass switch, allowing for the option to engage high and low tone adjustments for authentic amplification. Features Bluetooth capability, automatically cutting off RCA input signals when Bluetooth is connected.
Parameter
Operating mode: Class AB
Static current: 80mA
Output power: 50W+50W/8Ω, distortion 0.01%
Frequency response: 20Hz to 50KHz
Dynamic range: >100 dB
Overall dimensions: 172*67*301MM
Overall weight: 4.4KG
