Product Introduction:

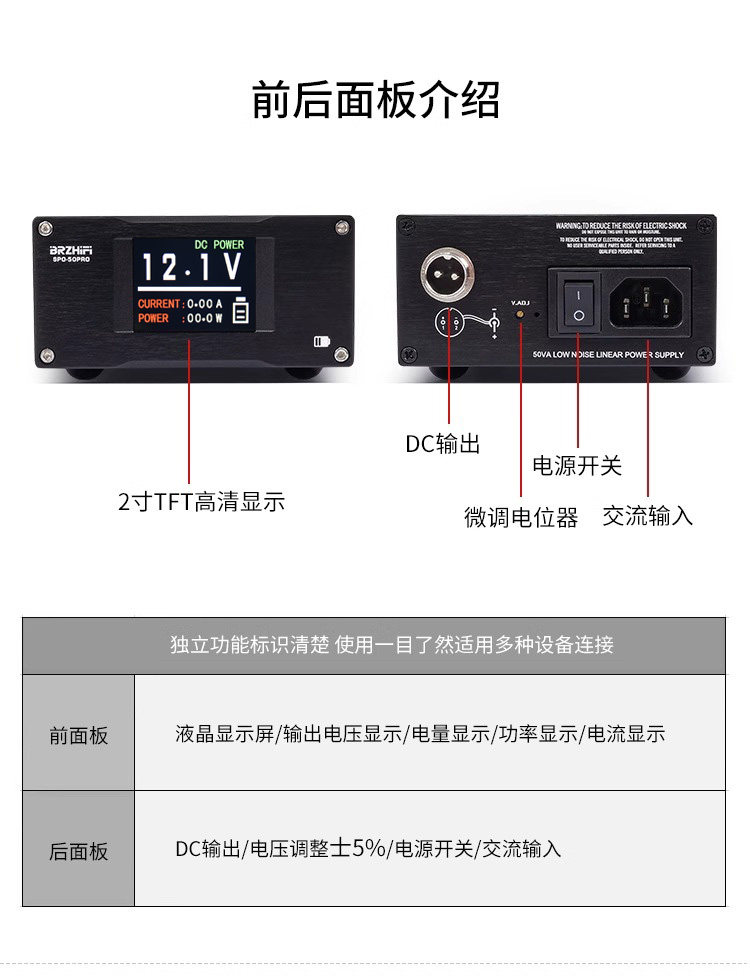

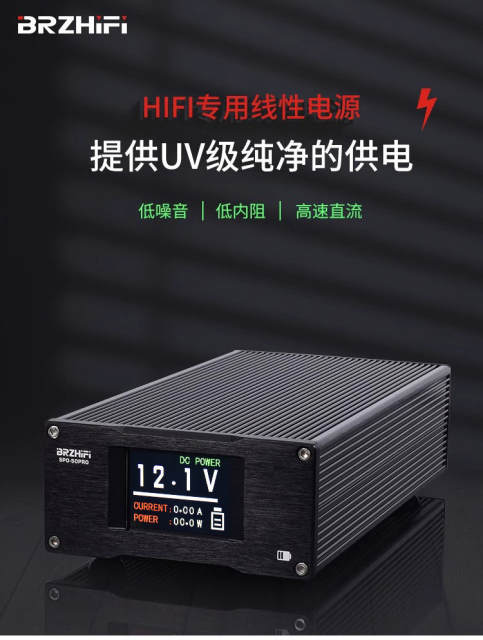

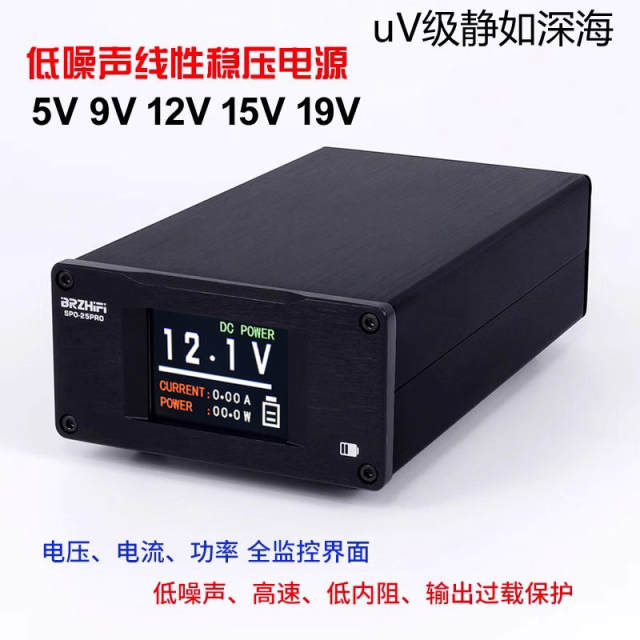

SPD-25PRO/SPD-50PRO is developed to meet the needs of high-definition audio and video devices, with low ripple, high speed, and low internal resistance characteristics. SPD-25PRO's voltage options include DC5V, 9V, 12V, and 15V in multiple versions. SPD-50PRO only provides 12V.The circuit architecture includes a precision voltage reference, high-speed operational amplifier, and high-power transistor for UV level noise DC voltage stabilization circuit; At the same time, the circuit has added a high current CLC heating filter inductor, and the EMI isolation level has further improved the quality of the DC power supply! On the other hand, we provide customers with visual real-time indicators of current, voltage, and power, allowing them to monitor and fine tune the output DC voltage in real time. This is a visual interface that other companies currently do not have, with a 2-inch TFT high-definition display.
Input voltage: default 220V AC/optional 110V AC 50-60HZ
Input interface: Pin Zi three wire plug meets the national standard, requires American standard, and European standard. Please make a note before purchasing
Output interface: Customized according to customer requirements, default output line with 5.5-2.5 copper core wire
Adjustable range of output voltage:+/-5%
Onboard fuse: 5X20 (1A)
Ripple: No load 0.05MV pure resistance load with load test below 0.2MV

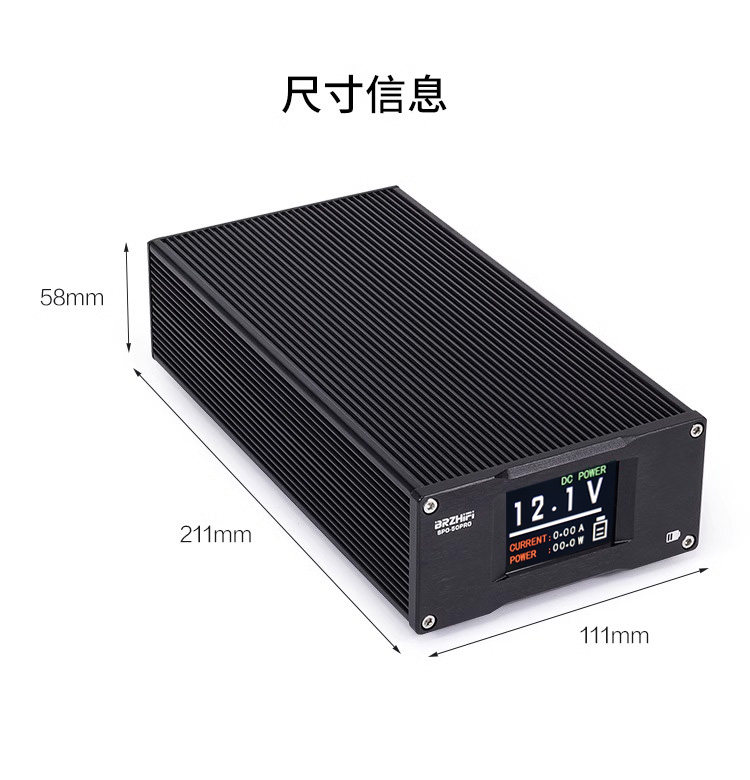

Size: 111X211X58MM (width, depth, height)
Weight: 1.6KG
Accessories: Copper core input 220V power cord and copper core DC output cord
