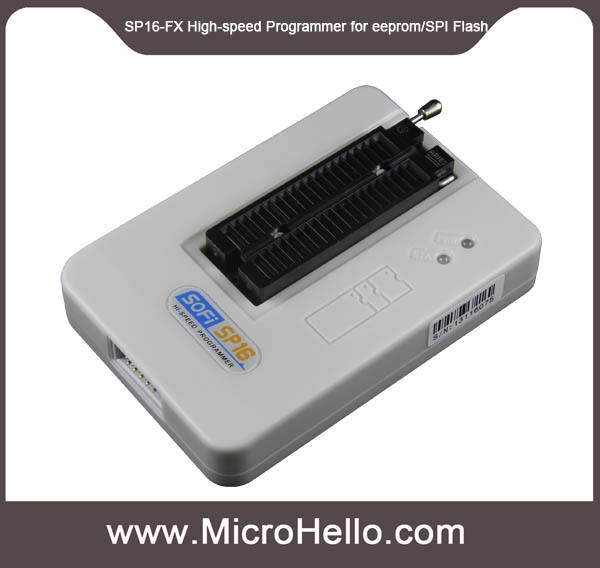

SP16-FX High-speed Programmer for eeprom SPI Flash

Name: SP16-FX High-speed Programmer for eeprom SPI Flash
Brand: MicroHello
SKU: SP16-FX-001
Price: 179.99 USD
Availability: InStock

SKU: SP16-FX-001

0.0 (0)

0 Sold

$179.99 ~~$359.00~~

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

Description

The SP16 series programmer is a serial EEPROM/SPI FLASH dedicated high-speed programmer designed by Shenzhen Sofi Technology Co., Ltd. Compared with the SP8 series, the programming speed is faster. Especially for chips with a capacity of 32M or more (SOP16), the programming speed is more than doubled. The new chip programming drive algorithm automatically processes redundant data, and the comprehensive programming efficiency is increased by about 30%. The offline data download adopts the latest optimized design, which is 5 times faster than the SP8 series download speed, and the typical download time of 128M data is only 41S.

List of supportive devices： http://www.sofi-tech.com/devlist.asp
Software Download:

User Manual Download:

Performance and characters

·USB2.0 communication interface, online mode does not require external power supply
·Built-in 32-bit high-speed processor, designed for serial memory, for extremely fast and accurate programming, is the fastest programmer in China.
·Support chip voltage from 1.7V to 5.0V, MCU program control voltage is precisely adjusted
·Supports a full range of 93/24/25/BR90 series memories, supports software upgrades and adds support for new chips

·Unique ISP download interface, providing 10PIN color ISP download line, for on-board chip (such as the computer motherboard BIOS that leads to the SPI interface) can be directly wired

·Support 25 series SPI FLASH chip type detection

·Imported ARIES 40-pin zero insertion force locking seat, wide and narrow chip and universal adapter can be used
·USB interface / ISP interface / ISP connector use imported parts to ensure the service life and reliability of programming
·Perfect over-current and ESD protection to effectively protect the programmer and computer USB port from accidental damage
·Provide device self-test function
·Mass production programming mode, automatic detection of chip placement and start of programming operation
·The number of programmers can be flexibly configured according to the mass production needs. Since each programmer is independent, plug and write, there is no synchronization waiting time, and it is extremely efficient.
·Offline mode programming function (Note 1): Built-in 512Mbit data memory, can realize various field programming without connecting to a computer, LED or buzzer sound prompts success or failure, easy to operate, easy to realize high-speed programming of chips
·Mass production does not require the placement of a master chip, effectively eliminating the drawbacks of the master copy mode and the slow copy speed (Note 2)
·Open mold custom exquisite shell, small size (size: 103x71x23mm), easy to carry
·Support WinXP, VISTA, Win7/Win8/Win10 (32bit/64bit)

Note 1: Offline programming is not supported in ISP mode
Note 2: Many programmers do not have built-in memory and need to place a master chip at the same time to burn offline. This method requires a special adapter, which has the risk of data burning errors due to poor contact, and the copy speed is usually Fuller, less productive

High speed programming
SP16 series through the built-in high-speed processor, and special hardware design, specifically for serial FLASH and EEPROM, algorithm optimization for different chips, to achieve high-speed reliable programming, is currently the fastest programmer in the industry, A universal programmer with speeds in excess of several thousand dollars.
(Take a 128M bit W25Q128 as an example, SP16 series programmer: programming + verification = 69.9S, Celtic 6000 series: programming + verification = 91S)
