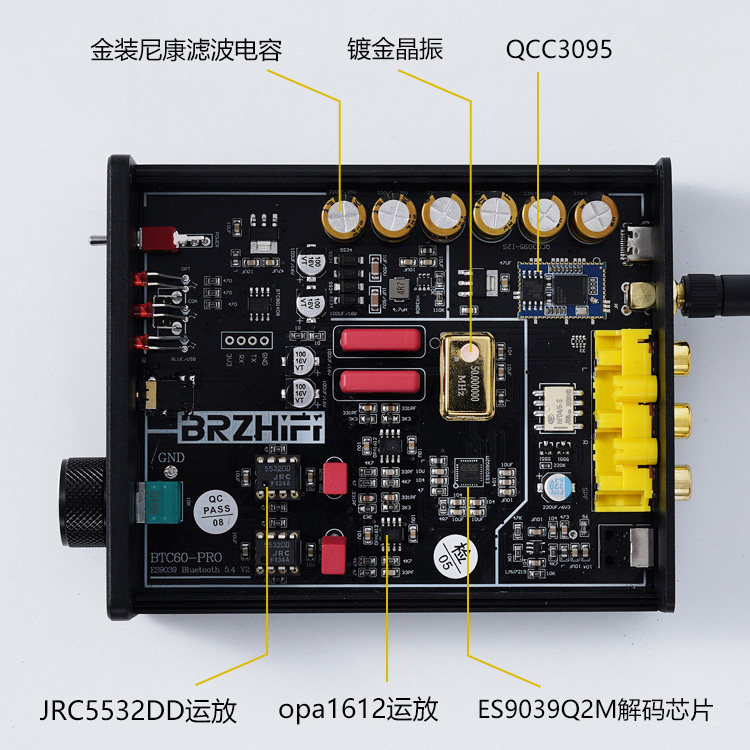

1. The 9039Q2M core decoder, optimized throughout with a single-chip microcomputer and featuring outstanding time-domain jitter elimination technology, offers sufficiently high performance to meet the demands of discerning audiophiles!
2. The ES9039 is optimized and configured using software control, with coaxial and optical outputs supporting up to 192K 24BIT.
3. A high-precision 50M active low-phase-noise crystal oscillator ensures greater system stability, as well as improved sound quality in terms of layering, spatiality, and positioning.
4. Built-in multiple low-noise linear power supply regulators.
5. Direct connection to headphones, active speakers, and power amplifiers is supported.
6. Supports Bluetooth 6.2, as well as APTX-HD and LDAC protocols.
7. The chassis is constructed entirely of aluminum alloy, with laser-engraved lettering that remains clear over time.
8. Built-in boost circuit allows the operational amplifier to operate at ±12V, resulting in lower dynamics and distortion
Power supply: 5V 2A
Weight: 0.34 kg
Decoding chip: ES9039Q2M

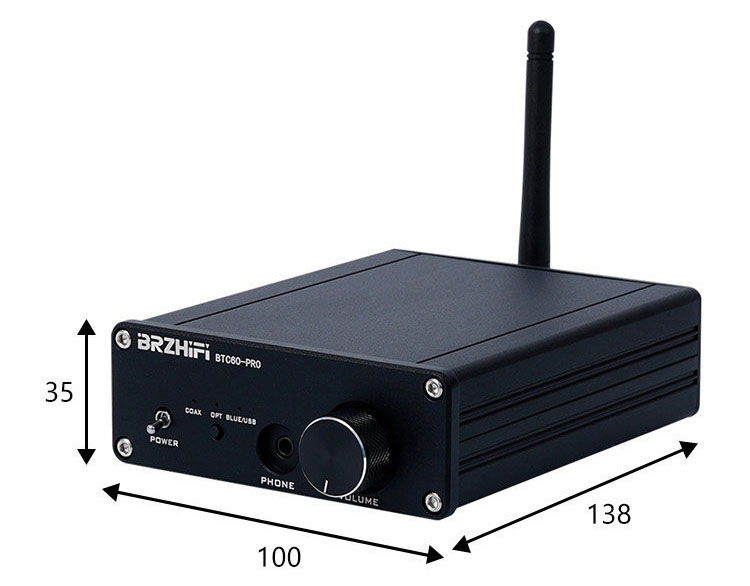

Dimensions: 100 x 138 x 35 mm
Headphone impedance range: 16-300 ohms
Accessories: including 1 TYPE-C charging cable
Output level: 2.5Vrms@0dBFS

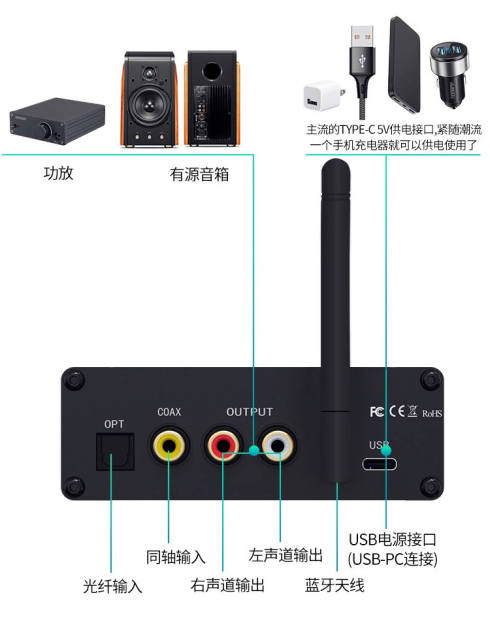

Input: USB-PC/coaxial/optical fiber
Output: RCA lotus seat + 3.5MM headphone jack
Bluetooth protocols: LDAC/APT-X/AAC/SBC
Frequency response: 20-20KHz +/- 0.15dB RCA USB
Interface support (PC): 44.1KHZ, 48KHZ, 16bit
Bluetooth sampling frequency support: 44.1KHZ/48KHZ/96KHZ, 16-24bit
Operating environment: Windows/MAC/some mobile devices (Android phones, tablets)
Supported sampling rates for coaxial optical fiber: 44.1kHz/48kHz/88.2kHz/96kHz/176.4kHz/192kHZ 16-24bit
