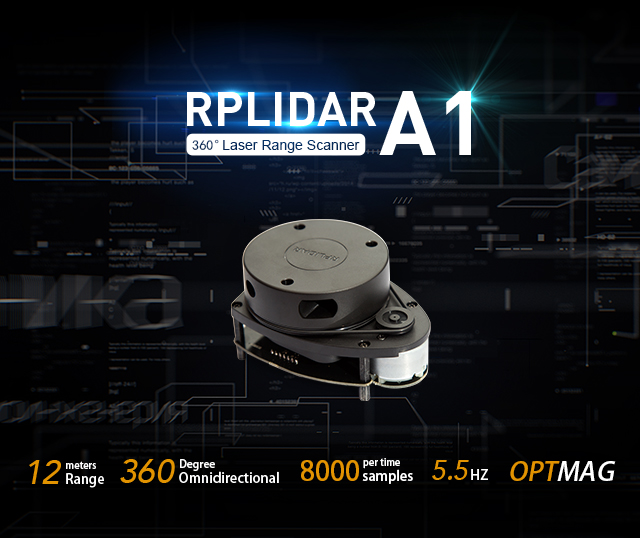

RPLIDAR A1’s scanning frequency reached 5.5 hz when sampling 1450 points each round. And it can be configured up to 10 hz maximum. RPLIDAR A1 is basically a laser triangulation measurement system. It can work excellent in all kinds of indoor environment and outdoor environment without direct sunlight exposure.
RPLIDAR A1 is based on laser triangulation ranging principle and uses high-speed vision acquisition and processing hardware developed by Slamtec. The system measures distance data in more than 8000 times per second.

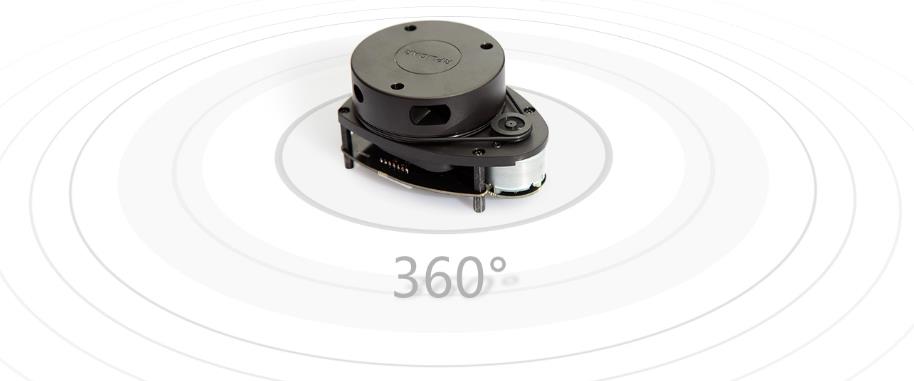

360 Degree Omnidirectional Laser Range Scanning

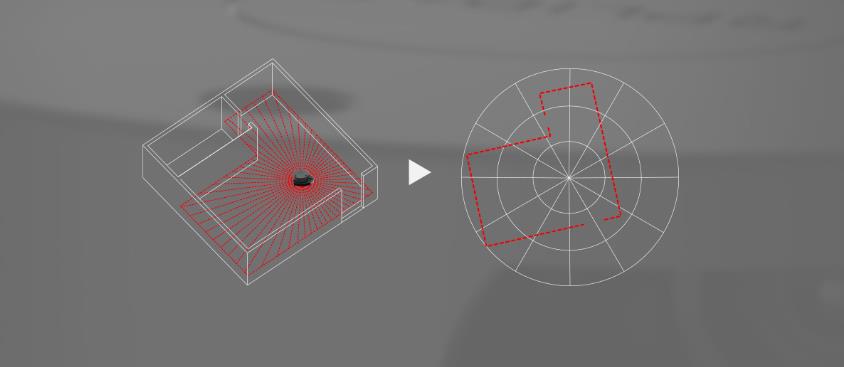

The core of RPLIDAR A1 runs clockwise to perform a 360-degree omnidirectional laser range scanning for its surrounding environment and then generate an outline map for the environment.
The sample rate of LIDAR directly decides whether the robot can map quickly and accurately.
RPLIDAR improves the internal optical design and algorithm system to make the sample rate up to 8000 times,

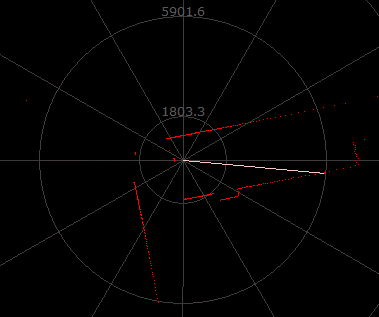

Comparison under different conditions
10Hz 8000 Points
10Hz 4000 Points
5Hz 2000 Points

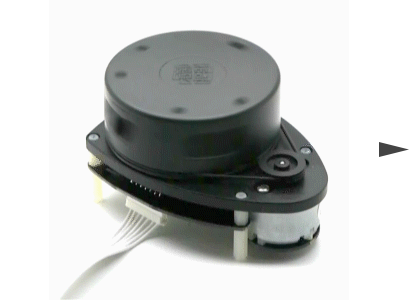

OPTMAG Original Design
Most traditional non-solid LIDARs use slip ring to transfer power and data information, however, they only have thounds of hours of life due to mechanical wearing out. Slamtec has integrated the wireless power and optical communication technology to self-design the OPTMAG technology, which breakouts the life limitation of traditional LIDAR system. It fixes the electrical connecttion failure caused by the physical wearing out so as to prolong the life-span.

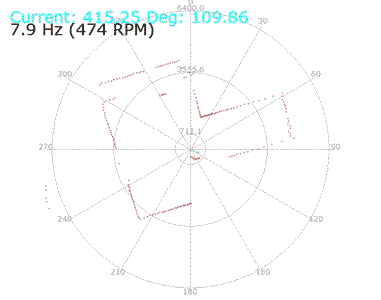

Configurable Scan Rate from 2-10Hz
Users can adjust the scan rate by alternating the motor PWM signal

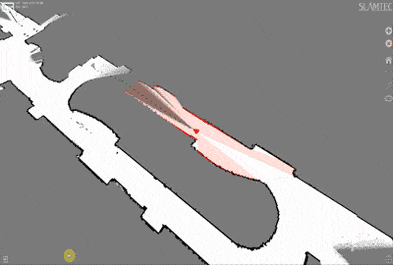

Ideal for Robot Navigation and Localization
RPLIDAR is the designed sensor for applying SLAM algorithm
With the scan rate set as 5.5Hz and the resolution is 0.2% percent of the actual distance

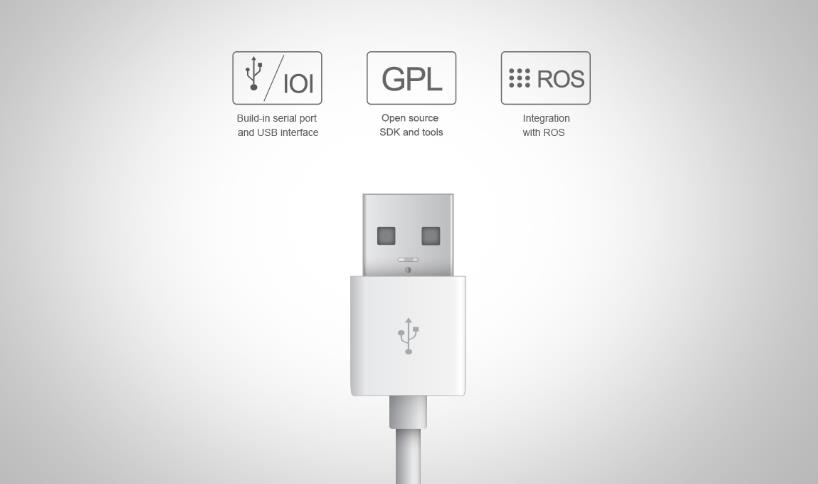

Plug and Play
Just connecting the RPLIDAR and a computer via a micro USB cable, users can use the RPLIDAR without any coding job
The Secret for a Freely Walking Robot

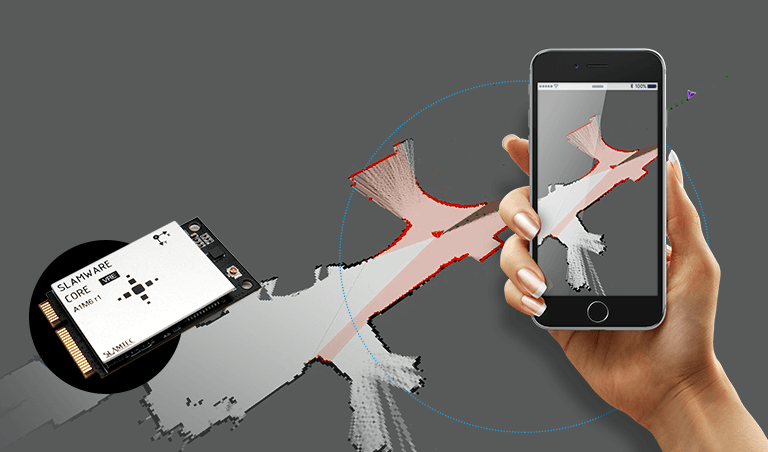

Matched solution for robot autonomous localization and navigation
RPLIDAR A1, as the core sensor, can quickly get the outline infomation of the environment. Integrating the RPLIDAR A1 with SLAMWARE in robot, the robot can build maps autonomously, find path in real time and avoid obstacles automatically.
Multi-point Touch and Man-machine Interaction
Compared with traditional technology, with infrared laser device, the RPLIDAR A1 can realize the multi-point touch on a super-large screen, which has a higher resolution, reacts quickly and resists ambient light.
Robot simultaneous localization and mapping (SLAM) Environment scanning and 3D rebuilding

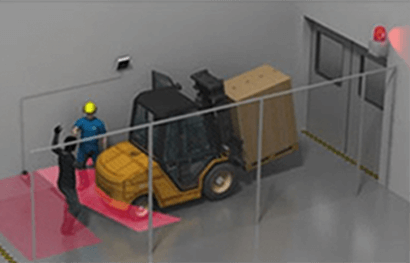

Obstacle detecting and avoiding Multi-point touching and man-mechine interaction
A1M8-R5 0.15-12m
＜1% of the distance (All distance range)
