RF4463F30 1W High Power Wireless Transceiver Module si4463 SPI ASK (G)FSK

Name: RF4463F30 1W High Power Wireless Transceiver Module si4463 SPI ASK (G)FSK
Brand: MicroHello
SKU: RF4463F30-001
Price: 15.9 USD
Availability: InStock

SKU: RF4463F30-001

0.0 (0)

0 Sold

$15.90 ~~$44.00~~

RF4463F30 is 1W RF module embedded with amplifier and LNA circuit. High quality of component, tightened inspection and long term test make this module reliable for long time, long distance communication in varies environment. RF4463F30 adopts Silicon Lab

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

Description

RF4463F30 is 1W RF module embedded with amplifier and LNA circuit. High quality of component, tightened inspection and long term test make this module reliable for long time, long distance communication in varies environment. RF4463F30 adopts Silicon Lab si4463 RF chip, which is a highly integrated wireless ISM band transceiver (EzradioPro2). The features of high sensitivity (-126 dBm), +30 dBm output power, 10PPM crystal, and good RF matching circuit make this module work well in hot/cold environment with reliable communication and long distance.
RF4463F30 is manufactured and tested strictly using lead-free process and complies with RoHS and Reach standards.

Specification

Parameter	Min	Typ	Max	Unit	Condition
Working Condition
Working voltage range	3.3	5	6.5	V
Temperature voltage	-40		85	℃
Current Consumption
Receiving current		13.5		mA	Low sensitivity mode
Receiving current		10		mA	High sensitivity mode
Transmitting current		500	550	mA	VCC=5V,TX=30dBm
Sleep current		<2	3	uA
Parameter
Frequency range	410	433	450	MHz	@433MHz
	470	490	510	MHz	@490MHz
	863	868	873	MHz	@868MHz
Modulation rate	0.1		1000	Kbps	FSK
Output power range	29.5	30	31	dBm	433MHz，VCC = 5V
Receiving sensitivity	-125	-126		dBm	433MHz,Data rate=600bps,Fdev=3KHz

Features

Frequency Range: 315/433/490/868/915（Customizable 142-1050 MHz）
Sensitivity up to -126 dBm
Maximum output power: +30dBm
10mA@receiver status
Data transfer rate：0.1-1000 Kbps
(G)FSK,4(G)FSK, (G)MSK,OOK and ASK
3.3-6.5 V Power supply
Digitalreceived signal strength indicator (RSSI)
Timed wake-up function
Theantenna automatically match and two-way switch control
Configurable packet structure
Preamble detection
64/128byte transmit and receive data register（FiFo）
Low-power detection
Temperature sensor and 8-bit analog-to-digital converters
Operating Temperature Range:-40 ~ + 85 °C
Integrated voltage regulator
Frequency hopping
Power-on reset function
Built-in crystal adjustment function

Applications

Remote control
Remote meter reading
Industrial control
home automation remote sensing
Individual data records
sensor network
tire pressure monitoring
health monitoring
wireless PC peripherals
tag reading and writing

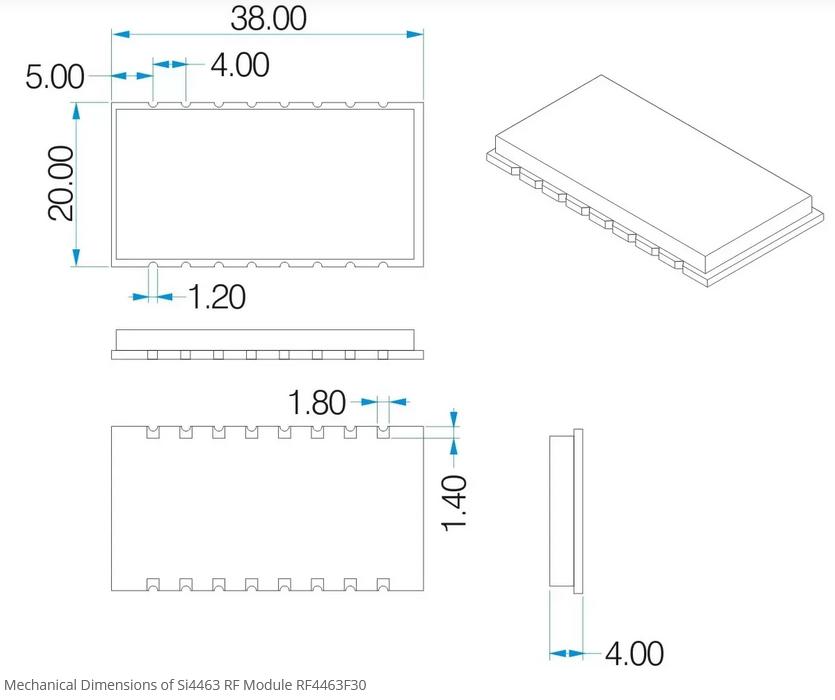

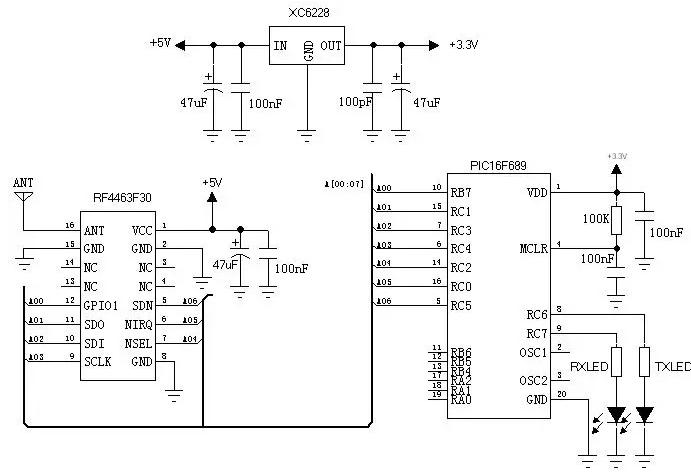

Typical Application Circuit

RF4463F30 Typical Application Circuit

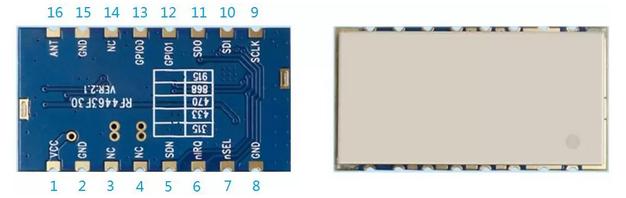

Pinout：

RF4463F30 Pin Definition

Pin NO.	Pin Name	Description
1	VCC	Positive power supply
2	GND	Connected to power ground
3,4,14	NC	Vacant, not connected
5	SDN	Power down control. SDN = 1, power down SDN = 0, normal working
6	nIRQ	Interrupt output
7	nSEL	Serial data selection for SPI interfaces.
8	GND	Connected to power ground
9	SCLK	Serial data clock for SPI interface.
10	SDI	Serial data in for SPI interface.
11	SDO	Serial data out for SPI interface.
12	GPIO1	GPIO1 of Si4463
13	GPIO0	GPIO0 of Si4463 for I/O interface
15	GND	Connected to power ground
16	ANT	From 50 ohm coaxial antenna
