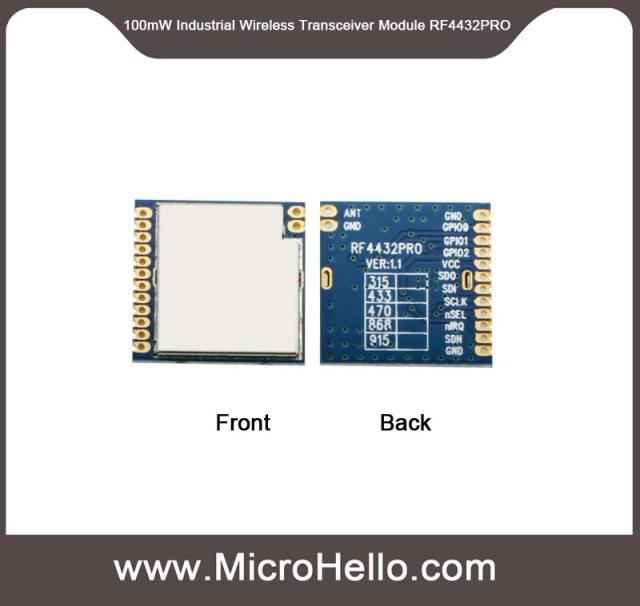

RF4432PRO 100mW Industrial Grade Wireless Transceiver Module 315/433/490/868/915MHz

SKU: RF4432PRO-001
0.0 (0)
0 Sold
$9.80 $25.00
Based on Silicon Lab's si4432 chip, our company has developed three modules with different package sizes: RF4432PRO, RF4432 and RF4432X1 to meet the needs of different customers.
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you want X
  • Frequency:
    433MHz
    490MHz
    868MHz
    915MHz
    315MHz
Quantity:
  • RF4432PRO 100mW Industrial Grade Wireless Transceiver Module 315/433/490/868/915MHz
  • Description
  • Based on Silicon Lab's si4432 chip, our company has developed three modules with different package sizes: RF4432PRO, RF4432 and RF4432X1 to meet the needs of different customers. We recommend that customers choose the RF4432PRO module with the best anti-interference performance. These modules all have extremely low receiving sensitivity (-121 dBm), coupled with the industry-leading output power of +20 dBm to ensure extended range and improved link performance.
  • RF4432PRO modules use lead-free technology for production and testing strictly, and comply with RoHS and Reach standards.


Features

  • Frequency Range:315/433/490/868/915MHz(customizable 240-930MHz)
  • Sensitivity up to -121dBm
  • Maximum output power:20dBm
  • Data transfer rate:0.123-256Kbps
  • FSK,GFSK&OOK Modulation mode
  • 1.8-3.6 V Power supply
  • Ultra-low consumption shutdown mode
  • Digital received signal strength indicator(RSSI)
  • Timed wake-up function
  • Antenna automatic matching and two-way switch control
  • Configurable data packet structure
  • Preamble detection
  • 64 bytes send and receive dataregister(FiFo)
  • Low power detection
  • Temperature sensor and 8-bitanalog-to-digital converters
  • Operating Temperature Range:-40 ~ +85°C
  • Integrated voltage regulator
  • Frequency hopping
  • Power-on reset function
  • Built-in crystal adjustment function
  • 30mA@+13dBm(Transmit)

Applications

  • remote control
  • Remote meter reading
  • Home security alarm
  • Personal data record
  • Toys control
  • Industrial control
  • Sensor network
  • Tire pressure monitoring
  • Health monitoring
  • Wireless PC peripherals
  • Tag reading and writing
  • Home automation remote sensing
Parameter Min Typ. Max. Unit Condition
Operation Condition
Working voltage range 1.8 3.3 3.6 V
Temperature voltage -40   85
Current Consumption
RX current   18.5   mA
TX current   85   mA @20dBm
Sleep current   < 1   uA
RF Parameter
Frequency range 470 490 510 MHz @490MHz
900 915 930 MHz @915MHz
Modulation rate 0.123   256 Kbps FSK
Output power range 1   20 dBm
Receiving sensitivity   -121   dBm @Data rate=1.2Kbps





Typical Application Circuit

RF4432PRO Typical Application Circuit



Pin configuration



RF4432PRO Pin Definition



Pin NO. Pin Name Description
1 GND Power ground
2 GPIO0 The control pin of the transmitter switch is connected inside the module
3 GPIO1 The control pin of the transmitter switch is connected inside the module
4 GPIO2 Connect directly to the GPIO2 pin of the chip
5 VCC Positive power supply 3.3V
6 SDO 0~VDD V digital output, provides serial readback function to internal control register.
7 SDI Serial data input. 0~VDD V digital input. This pin is a 4-wire serial data serial data stream bus.
8 SCLK Serial clock input. 0~VDD V digital input. This pin provides a 4-wire serial data clock function.
9 nSEL Serial interface select input pin. 0~VDD V digital input. This pin provides select/enable function for 4-wire serial data bus. This signal is also used to indicate burst read/write mode.
10 nIRQ Interrupt output
11 SDN Chip enable pin. 0~VDD V digital input. SDN=0 in all modes except shutdown mode. When SDN=1, the chip will be completely shut down and the contents of the register will be lost.
12 GND Power ground
13 GND Power ground
14 ANT Connect with 50 ohm coaxial antenna





Mechanism dimensions

RF4432PRO Mechanical Dimensions

Datasheet Download
