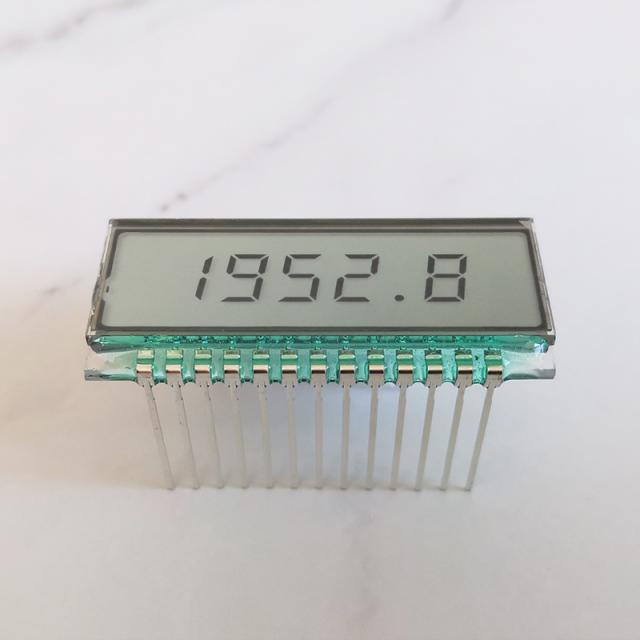

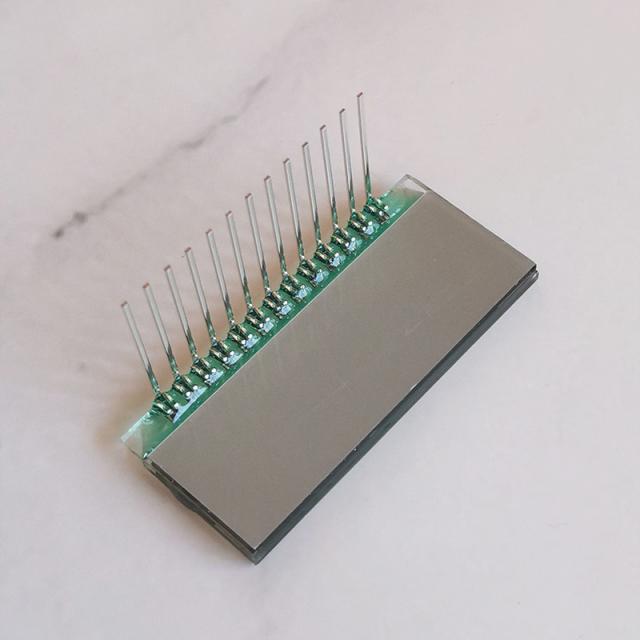

QYT19528 TN segment LCD screen small size 5-digit wide temperature range LCD screen can be driven by HT1621

Name: QYT19528 TN segment LCD screen small size 5-digit wide temperature range LCD screen can be driven by HT1621
Brand: MicroHello
SKU: QYT19528
Price: 3.65 USD
Availability: InStock

SKU: QYT19528

0.0 (0)

0 Sold

$3.65 ~~$6.90~~

QYT19528 TN segment LCD screen small size 5-digit wide temperature range LCD screen can be driven by HT1621

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

Description

Note:If your purchase quanlity exceeds 50 pieces, please contact us for wholesale price!If you need to add backlight, please also contact us!

Product model: QYT19528
Dimensions: 33.0x14.5x2.8mm
View size: 31.6x9.6mm
Connection method: PIN (metal pin)
Perspective: 60'CLOCK
Display mode: TN, positive display
Drive mode: 1/4DUTY, 1/3BIAS
Driving voltage: 5.0V
Operating temperature: -20 ℃~70 ℃
Backlight: LED (optional)
Recommended driver: HT1621
