Overview
We currently offers total of 15+ populated
PICXXX-XX V2 series MCU cards with different microcontrollers，especially for
OpenPIC Pro development board.You can also purchase Half-empty PCB cards that you can populate on your own and solder any supported microcontroller you need in your development. This way your
OpenPIC Pro development board becomes truly flexible and reliable tool for almost any of your PIC projects. The
PICXXX-XX V2 series MCU cards can also be used in your final devices.
The
PICXXX-XX V2 series MCU cards are standardized add-on boards, which has standard Pinout description and allows very simple installation and replacement of the microcontroller unit (MCU) on a
OpenPIC Pro development board equipped with the MCU Card socket.
The
PIC80-B V2 cards is one of the
PICXXX-XX V2 series MCU cards which instal a TQFP80
PIC24/dsPIC30 microcontroller.It can be installed on
OpenPIC Pro development board directly. It contains 1 user LED,Power LED,USB mini connector, Fuse protection,3.3V Supply,System crystal socket etc. The
PIC80-B V2 cards is a great choice for both beginners and professionals. After testing and building the final program, this card can also be taken out of the board socket and used in your final device.

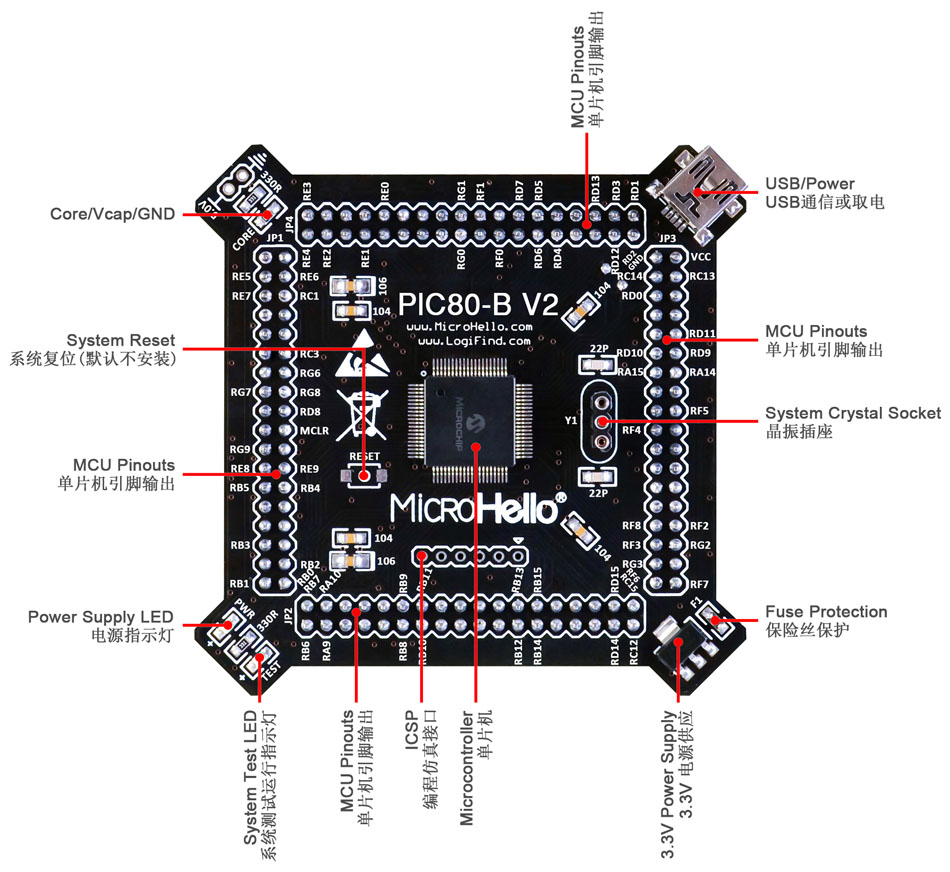

What's on Board
Download
1.
PIC80-B V2 Card Schematic_20200820
Its MotherBoard
The openPIC Pro motherboard is designed for
PICXXX-XX V2 series MCU cards program, which makes your development easier.
