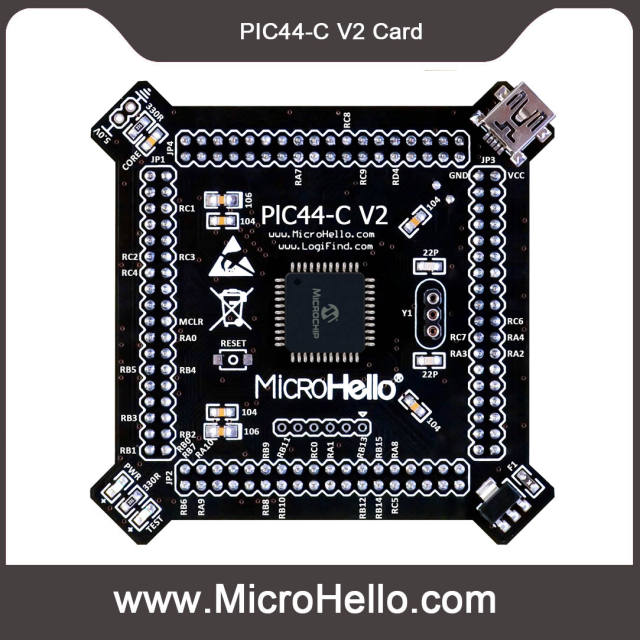

The PIC44-C V2 cards is one of the PICXXX-XX V2 series MCU cards which instal a TQFP44 dsPIC33 microcontroller.It can be installed on OpenPIC Pro development board directly. It contains 1 user LED,Power LED,USB mini connector, Fuse protection,3.3V Supply,System crystal socket etc. The PIC44-C V2 cards is a great choice for both beginners and professionals. After testing and building the final program, this card can also be taken out of the board socket and used in your final device.

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (98)

Description

Overview

We currently offers total of 15+ populated PICXXX-XX V2 series MCU cards with different microcontrollers，especially for OpenPIC Pro development board.You can also purchase Half-empty PCB cards that you can populate on your own
and solder any supported microcontroller you need in your development. This way your OpenPIC Pro development board becomes truly flexible and reliable tool for almost any of your PIC projects. The PICXXX-XX V2 series MCU cards can also be used in your final devices.

The PICXXX-XX V2 series MCU cards are standardized add-on boards, which has standard Pinout description and allows very simple installation and replacement of the microcontroller unit (MCU) on a OpenPIC Pro development board equipped with the MCU Card socket.

The PIC44-C V2 cards is one of the PICXXX-XX V2 series MCU cards which instal a TQFP44 dsPIC33 microcontroller.It can be installed on OpenPIC Pro development board directly. It contains 1 user LED,Power LED,USB mini connector, Fuse protection,3.3V Supply,System crystal socket etc. The PIC44-C V2 cards is a great choice for both beginners and professionals. After testing and building the final program, this card can also be taken out of the board socket and used in your final device.

What's on Board

Download

1.PIC44-C V2 Card Schematic_20200820

Its MotherBoard
The openPIC Pro motherboard is designed for PICXXX-XX V2 series MCU cards program, which makes your development easier.Click the following picture to buy!!!
