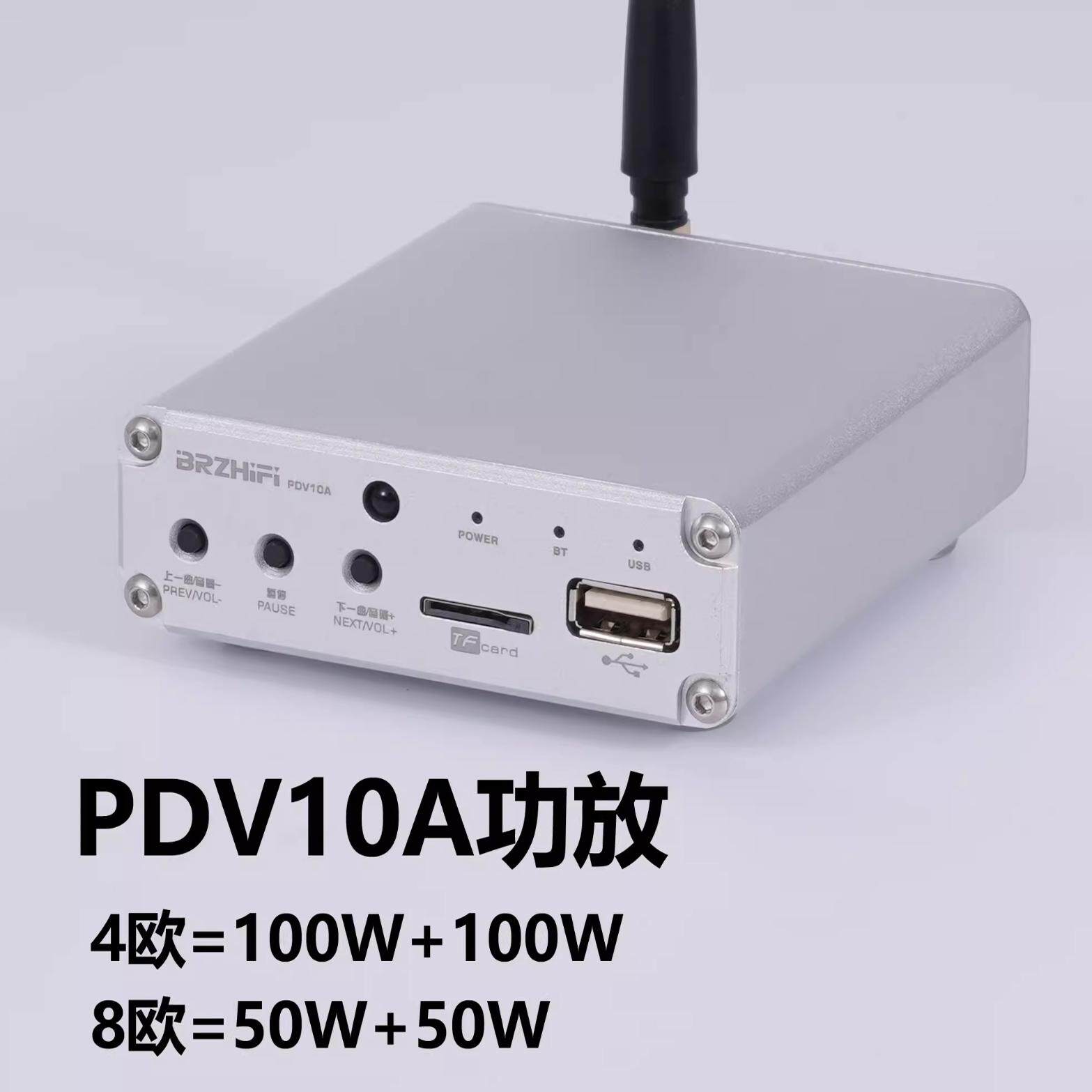

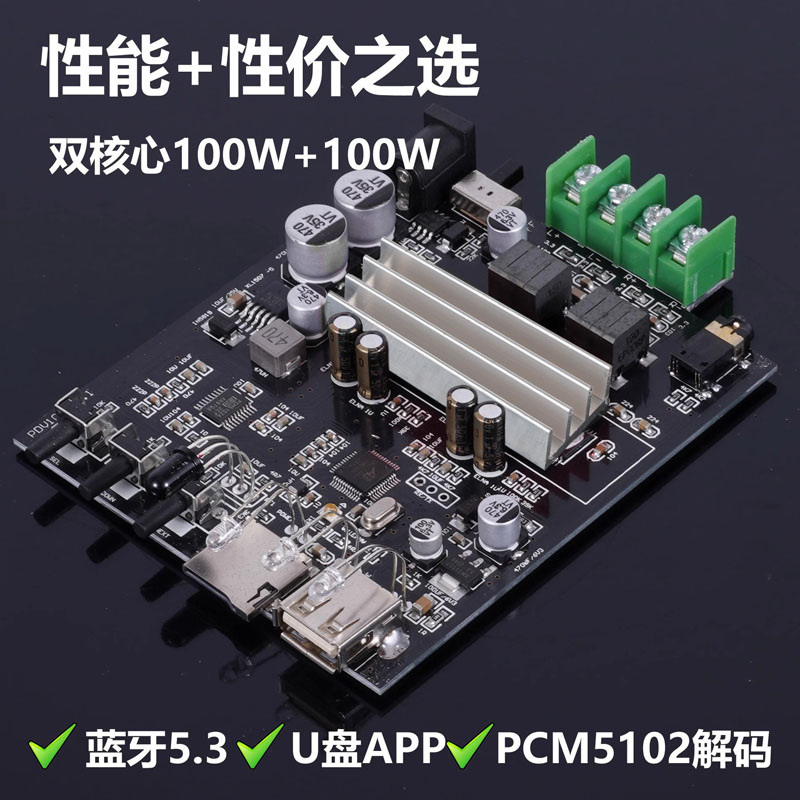

PDV10A is a high-end digital amplifier board, with a very thoughtful appearance, layout, and materials used. The function is also very powerful, with an output power of 4 ohms 100WX28 ohms 50WX2 at DC24V, supporting Bluetooth 5.3 USB flash drive and SD card. PC sound card AUX input and other functions. Supports audio formats such as APEWAVFALCMP3.

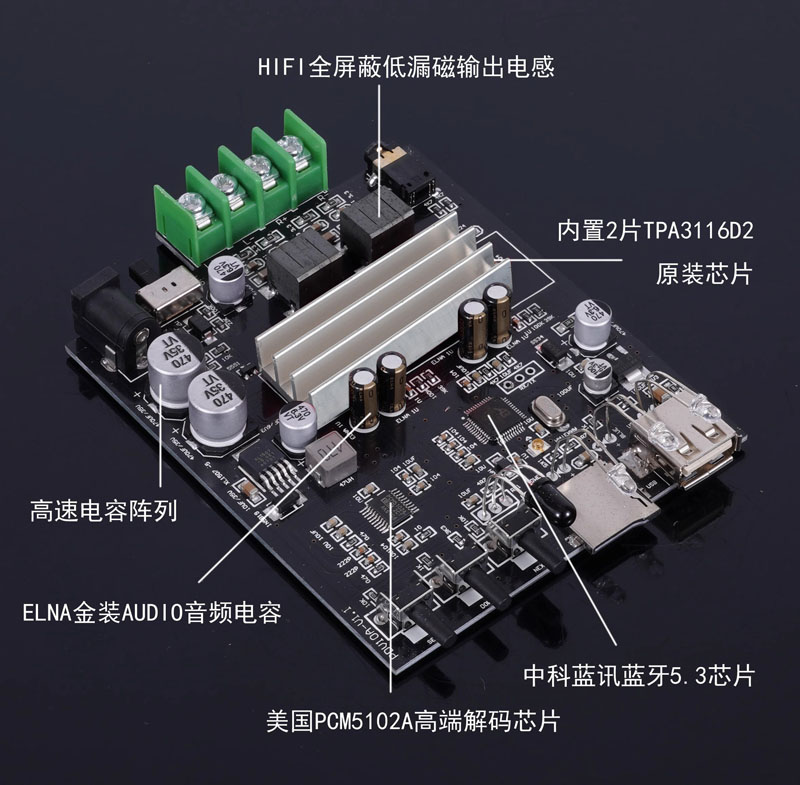

Very expensive low leakage magnetic shielding inductors, Zhongke Lanxun with PCM5102 for I2S decoding, ELNA audio inductors, and more!

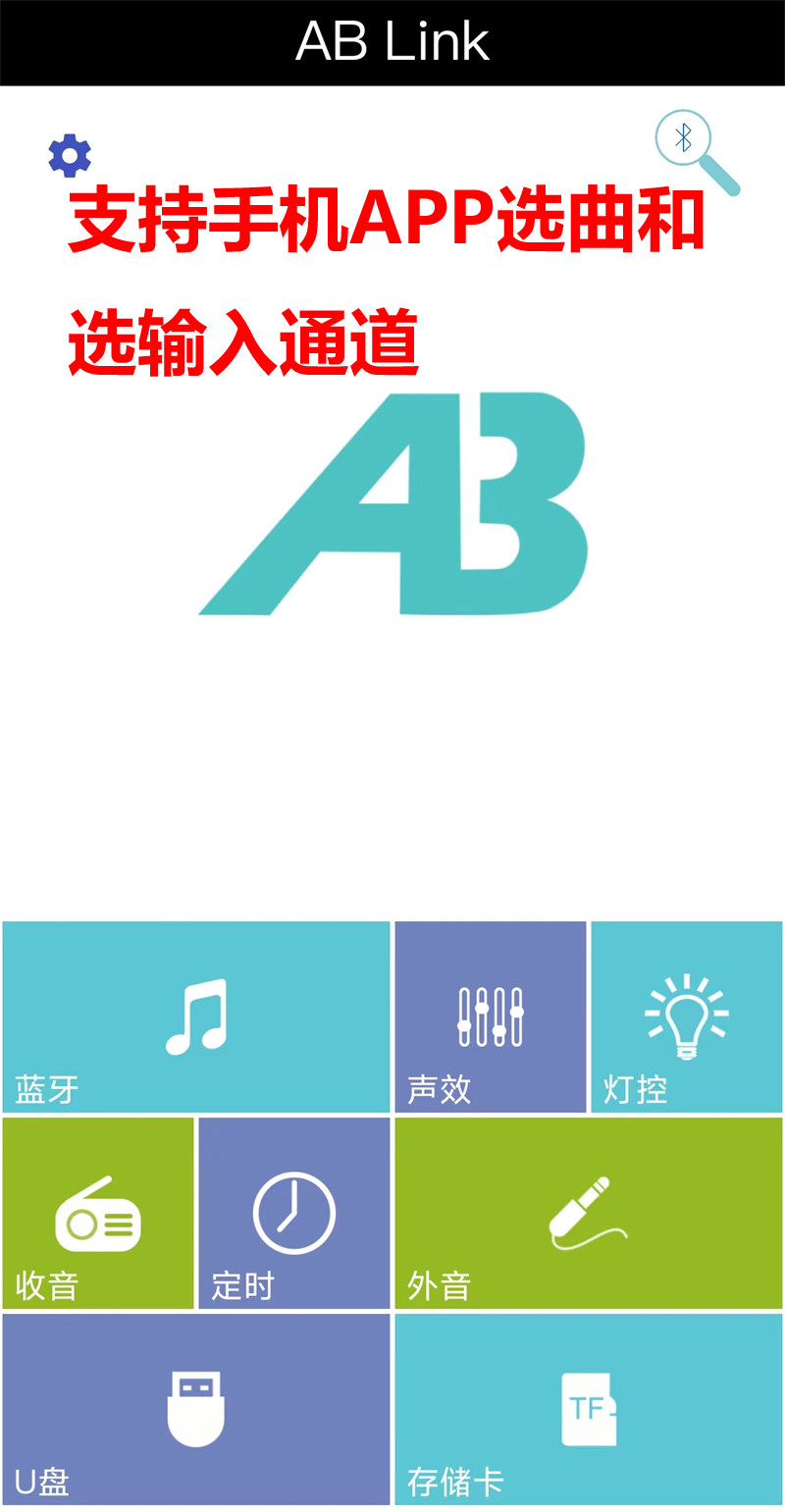

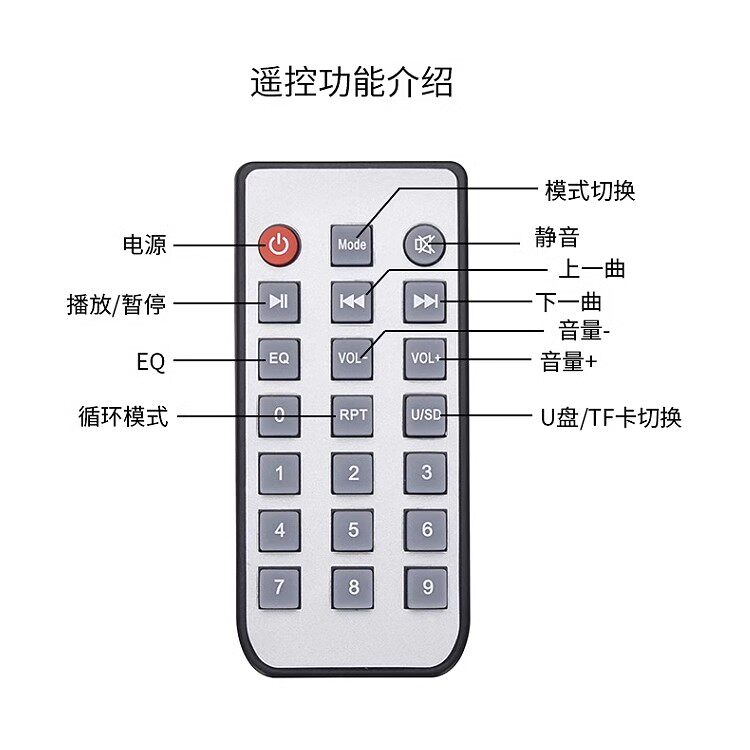

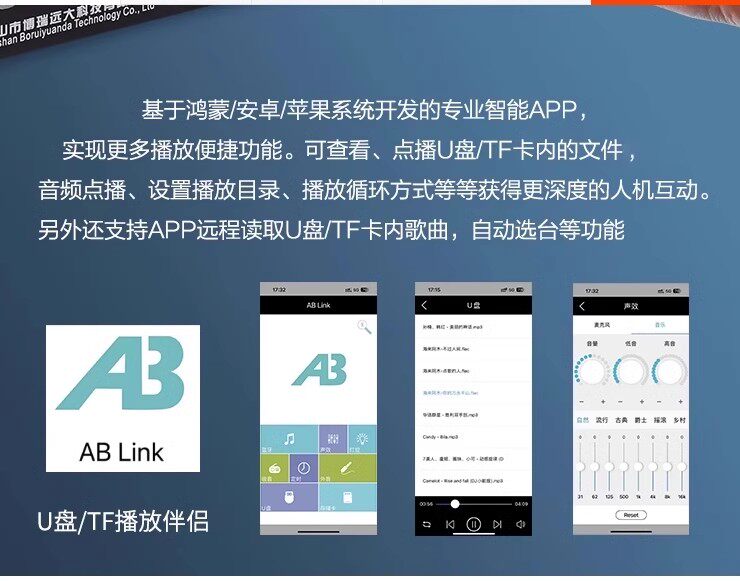

The sound quality is delicate and transparent, the low frequency is full, and the power is full! Support remote control. Support mobile app with button operation.
Product parameters
Model: PDV10A
Decoding chip: PCM5102
Bluetooth version: 5.3
Supporting Protocol: SBC
Audio input: BT, USB, TF card, AUX lossless format support: MP3, WMA, WAV APE, FLAC Capacity support: up to 128GB
USB/TF card sampling rate: 44.1~48khz24Bit
Output power:100W+100W
Frequency response range: 20Hz~25kHz (+3dB)
Distortion: 0.1%
Signal to noise ratio: ≥ 98dB
power supply voltage:DC15-24V
Product dimensions: Height 23 * Width 84 * Depth 96 (millimeters) (excluding protruding parts)
Weight: 142g
