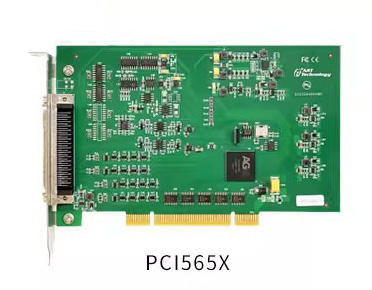

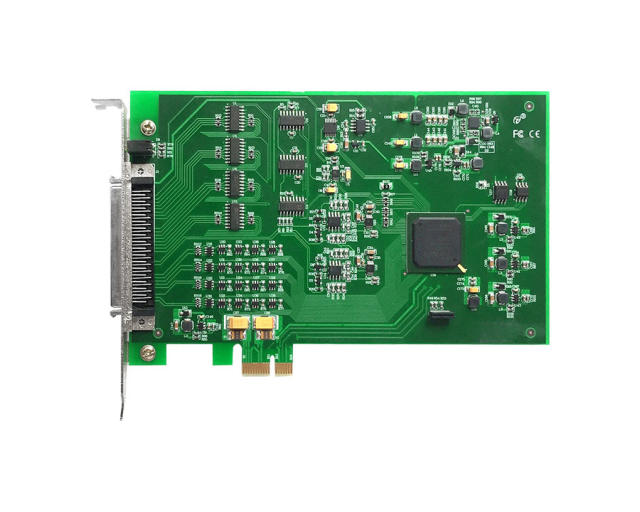

565X series PCI/PCIe/PXI/PXIe bus Labview multifunctional asynchronous data acquisition card data Capture card

Name: 565X series PCI/PCIe/PXI/PXIe bus Labview multifunctional asynchronous data acquisition card data Capture card
Brand: MicroHello
SKU: 565x-001
Price: 840 USD
Availability: InStock

SKU: 565x-001

0.0 (0)

0 Sold

$840.00 ~~$650.00~~

565X series PCI/PCIe/PXI/PXIe bus Labview multifunctional asynchronous data acquisition card data Capture card

Received successfully

Coupon Code

CONTINUE SHOPPING

Please select the information you want X

Part#:

PCIe5650（32ch/12Bit/500KAD+4ch AO）

PCIe5651（16ch/12Bit/500KAD+2ch AO）

PCIe5652（32ch/12Bit/250KAD,without AO）

PCIe5653（16ch/12Bit/250KAD,without AO）

PCIe5654（32ch/16Bit/500KAD+4ch AO）

PCIe5655（16ch/16Bit/500KAD+2ch AO）

PCIe5656（32ch/16Bit/250KAD,without AO）

PCIe5657（16ch/16Bit/250KAD,without AO）

PCI5650（32ch/12Bit/500KAD+4ch AO）

PCI5651（16ch/12Bit/500KAD+2ch AO）

PCI5652（32ch/12Bit/250KAD,without AO）

PCI5653（16ch/12Bit/250KAD,without AO）

PCI5654（32ch/16Bit/500KAD+4ch AO）

PCI5655（16ch/16Bit/500KAD+2ch AO）

PCI5656（32ch/16Bit/250KAD,without AO）

PCI5657（16ch/16Bit/250KAD,without AO）

Quantity:

Add to Favorites (0)

Description

Overview:

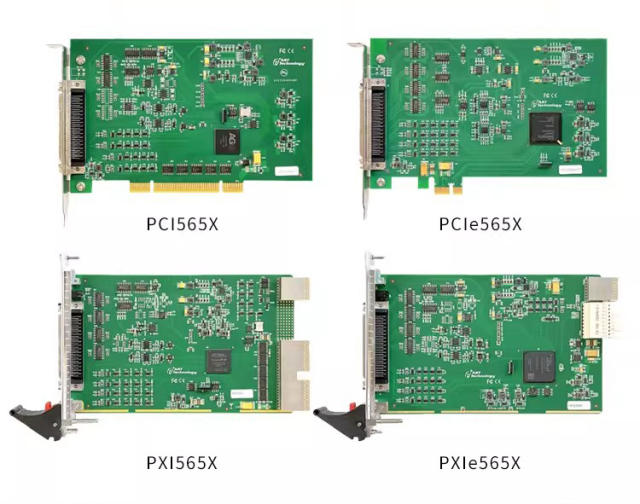

The 565X series Module is a multifunctional asynchronous data acquisition card that offers four bus options: PCI, PCIe, PXI, and PXIe. This series of data acquisition cards provides up to 32 channels of RSE/NRSE or 16 channels of DIFF analog input; Up to 4 channels of analog synchronous output; 16 channel digital DIO and 1-channel multifunctional counter. Seamless connection with LabVIEW, providing graphical API functions. Supports Art DAO collection software.
Application:
Electronic product quality testing, signal acquisition, process control, servo control.
Product Selection

Bus		AI			AO			CTR	DIO
Bus	Model	Resolution	Sample Rate	Channel	Resolution	Sample Rate	Channel	Channel	Channel
PCI PCIe PXI PXIe	5650	12Bit	500Ksps	32 ch single ended/16 ch differential	12Bit	100Ksps	4-Channels	1-Channel	16-Channels
	5651	12Bit	500Ksps	16 ch single ended/8-ch differential	12Bit	100Ksps	2-Channels	1-Channel	16-Channels
	5652	12Bit	250Ksps	32 ch single ended/16 ch differential	-	-	0	1-Channel	16-Channels
	5653	12Bit	250Ksps	16 ch single ended/8-ch differential	-	-	0	1-Channel	16-Channels
	5654	16Bit	500Ksps	32 single ended/16-ch differential	16Bit	100Ksps	4-Channels	1-Channel	16-Channels
	5655	16Bit	500Ksps	16 ch single ended/8-ch differential	16Bit	100Ksps	2-Channels	1-Channel	16-Channels
	5656	16Bit	250Ksps	32 ch single ended/16 ch differential	-	-	0	1-Channel	16-Channels
	5657	16Bit	250Ksps	16 ch single ended/8-ch differential	-	-	0	1-Channel	16-Channels

Operating System and Board Size

Product	565X series multifunctional asynchronous data acquisition card
Operating System	XP、Win7、Win8、win10
Board Size	PCI Bus	167.7mm (length) * 106.67mm (width)
	PCIe Bus	167.7mm (length) * 111.2mm (width)
	PXI Bus	160mm (length) * 100mm (width)
	PXIe Bus	160mm (length) * 100mm (width)

Parameters of Analog input (AI)

	Model	Resolution	Max Sample Rate	Channel	External Clock Range
PCI PCIe PXI PXIe	5650	12Bit	500Ksps	32 ch single ended/16 ch differential	0-500KHz
	5651	12Bit	500Ksps	16 ch single ended/8-ch differential	0-500KHz
	5652	12Bit	250Ksps	32 ch single ended/16 ch differential	0-250KHz
	5653	12Bit	250Ksps	16 ch single ended/8-ch differential	0-250KHz
	5654	16Bit	500Ksps	32 ch single ended/16 ch differential	0-500KHz
	5655	16Bit	500Ksps	16 ch single ended/8-ch differential	0-500KHz
	5656	16Bit	250Ksps	32 ch single ended/16 ch differential	0-250KHz
	5657	16Bit	250Ksps	16 ch single ended/8-ch differential	0-250KHz
Other common parameters of Analog input (AI)
Sample Range	565X:±10V、±5V、±2V、±1V
	565X-D0:±10V
	565X-D1:±5V
Multi channel sampling rate	Maximum sampling rate for each channel/total number of sampling channels set
Calibration method	Software automatic calibration
Channel scanning mode	Asynchronous cyclic scanning
Acquisition mode	On demand single point sampling, finite point sampling, continuous sampling
Gain error	+0.05% Max @ FSR
Offset error	+1LSB Max
Memory depth	PCI, PXI bus: 8K words (Point) FIFO memory
Memory depth	PCle, PXle bus: 16K words (Point) FIFO memory
Protection voltage	± 12V
COUPLING	DC-coupled
Trigger Source	Software forced triggering, analog triggering, digital triggering
Trigger source input range	analog trigger	AI first channel: current AI acquisition range
Trigger source input range	digital trigger	PFIx: standard TTL level
Clock source	Internal clock, external clock
Input impedance	1GΩ

Parameters of Analog Output (AO)

	Model	Resolution	Channel	Maximum Conversion Rate	External Clock Range	External Clock Range
PCI PCIe PXI PXIe	5650	12Bit	4-ch	100Ksps	0-100KHz	0-500KHz
	5651	12Bit	2-ch	100Ksps	0-100KHz	0-500KHz
	5652	-	0-ch	-	-	0-250KHz
	5653	-	0-ch	-	-	0-250KHz
	5654	16Bit	4-ch	100Ksps	0-100KHz	0-500KHz
	5655	16Bit	2-ch	100Ksps	0-100KHz	0-500KHz
	5656	-	0-ch	-	-	0-250KHz
	5657	-	0-ch	-	-	0-250KHz
Other common parameters of Analog Output (AO)
Generated signal range	± 10V
Drive capability	5mA
Memory depth	PCI, PXI bus: 8K words (Point) FIFO memory
Memory depth	PCle, PXle bus: 16K words (Point) FIFO memory
Calibration method	Software automatic calibration
Channel output mode	Synchronous output
Generate mode	Single point (on-demand) sampling, finite point sampling, continuous sampling
Gain error	+0.1% Max @ FSR
Offset error	+1LSB Max
Trigger Source	Software forced triggering, DTR digital triggering
Trigger direction	Falling edge trigger, rising edge trigger, change trigger
Trigger source input range	DTR input range,Standard TIL level
Clock source	Internal clock, external clock
Slew Rate	7V/us
Output Impedance	0.2Ω

Parameters of Digital input/output (DIO)

PCI, PXI bus	Port 0: 8-ch without cache DIO (P0.<0.. 7>) Port 1: 8-ch PFI (PFI<0... 7>/P1) Memory depth: None Sampling method: on-demand single point sampling
PCIe, PXle bus	Port 0: 8-ch DIO with cache (P0.<0.. 7>) supported Port 1: 8-ch PFI (PFI<0... 7>/P1) Memory depth: 2K bytes (point) FIFO memory Sampling methods: on-demand single point sampling, finite point sampling, continuous sampling
Other common parameters of Digital input/output (DIO)
Electrical standards	TIL compatibility
Collocation method	Programmable I/O direction and status
Input logic level	High level	Maximum voltage	5V
		Minimum voltage	3V
	Low Level	Maximum voltage	0.8V
		Minimum voltage	0V
Source current output logic level	High level	Maximum voltage	5.1V @ <1mA
		Minimum voltage	4.46V @ 16.5mA
	Low Level	Maximum voltage	0V
		Minimum voltage	0V
Sink current output logic level	High level	Maximum voltage	5.1V
		Minimum voltage	4.9V
	Low Level	Maximum voltage	0.5V @ 25mA
		Minimum voltage	0V @ < 1mA
Maximum input range	0V~5V
Input/output rate	10MHz
Pull down	10KΩ
Maximum driving capability of a single channel	-20mA @Source Current 25mA @Sink Current
Overvoltage protection	-5V~10V

Parameters of Counter (CTR)

PCI, PXI bus	Sampling method	CI:On demand single point sampling
		CO: On demand single point sampling, finite point sampling, continuous sampling
	Memory depth	None
PCIe, PXle bus	Sampling method	CI:On demand single point sampling, finite point sampling, continuous sampling
		CO:On demand single point sampling, finite point sampling, continuous sampling
	Memory depth	CI: 2K dual word (Point) FIFO memory
		CO: None
Other common parameters of Counter (CTR)
Channel	1-channel multifunctional counter
Counter Bit	32-bit
Counter function	CI: Edge counting, frequency measurement, cycle measurement, half cycle measurement, pulse measurement, pulse width measurement, bilateral edge spacing measurement, linear position measurement, angular position measurement
	CO: Pulse output
Counter source	PFI0~PFI3
Maximum input frequency	5MHz
Minimum level pulse width	100ns
Electrical standards	TTL level

Power Consumption of 565X series data acquisition card

Model	Typical values	Maximum value
PCI565x	2W	3.5W
PX1565x	2W	3.5W
PCle565x	2W	4W
PXle565x	2W	4W
Note: The maximum test condition is that all digital ports output the maximum current in Source mode.
