Diversified and powerful functions
Try to meet the needs of different groups/scenarios as much as possible

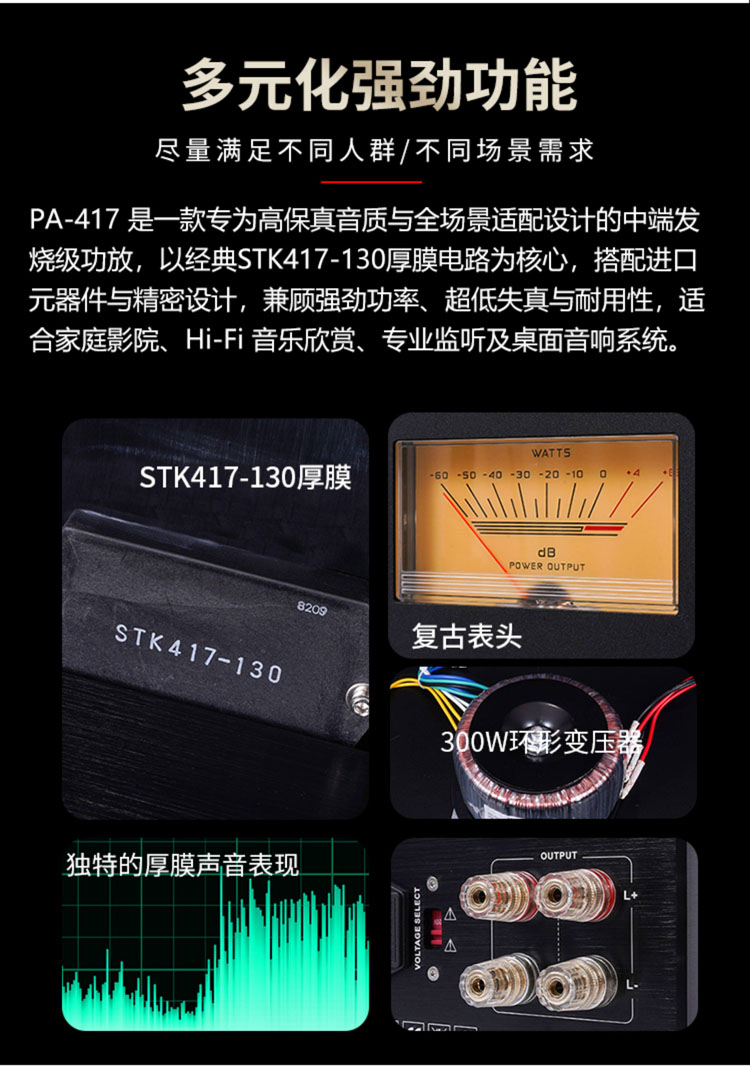

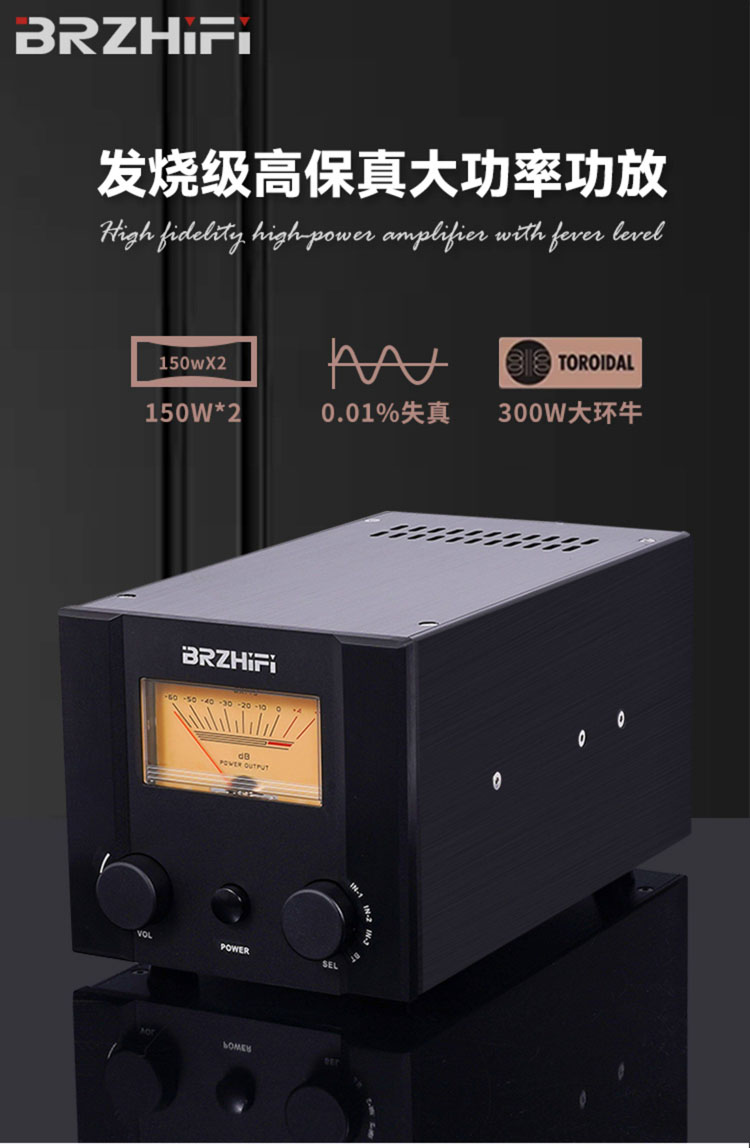

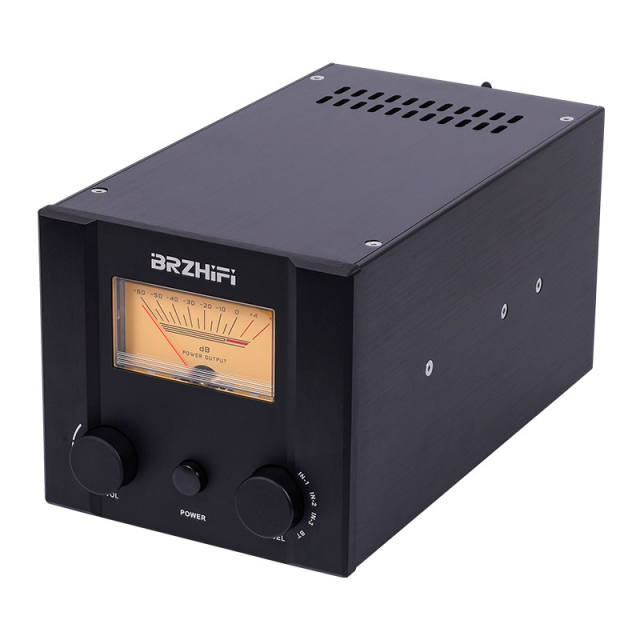

PA-417 is a mid-range high-end amplifier designed specifically for high fidelity sound quality and full scene adaptation. It features the classic STK417-130 thick film circuit as its core, coupled with imported components and precision design, balancing strong power, ultra-low distortion, and durability. It is suitable for home theaters, Hi Fi music appreciation, professional monitoring, and desktop audio systems.

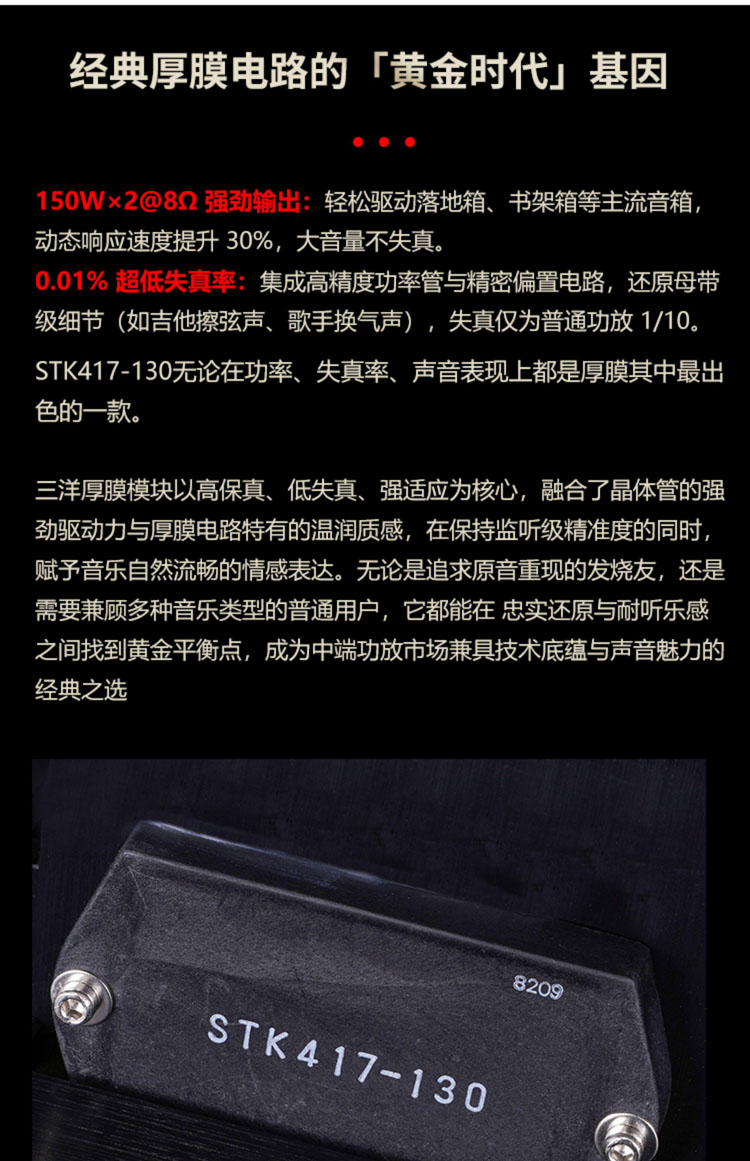

The 'Golden Age' Gene of Classic Thick Film Circuits
150W × 2 @ 8 Ω Strong Output: Easily Drive Mainstream Speakers such as Floor Boxes and Bookshelf Boxes, Dynamic Response Speed Increased by 30%, High Volume Without Distortion
0.01% ultra-low distortion rate: Integrated with high-precision power tubes and precision bias circuits, it restores details at the master level (such as guitar strumming and singer breathing), with distortion only 1/10 of that of ordinary amplifiers. STK417-130 is the most outstanding thick film in terms of power, distortion rate, and sound performance.
Sanyo thick film modules are centered around high fidelity, low distortion, and strong adaptability, integrating the powerful driving force of transistors with the unique warm texture of thick film circuits, while maintaining monitoring level precision and giving music a natural and smooth emotional expression. Whether it's audiophiles who pursue original sound reproduction or ordinary users who need to balance multiple music genres, it can find a golden balance between faithful reproduction and durable listening experience, becoming a classic choice in the mid-range amplifier market that combines technical expertise and sound charm.
Product parameters

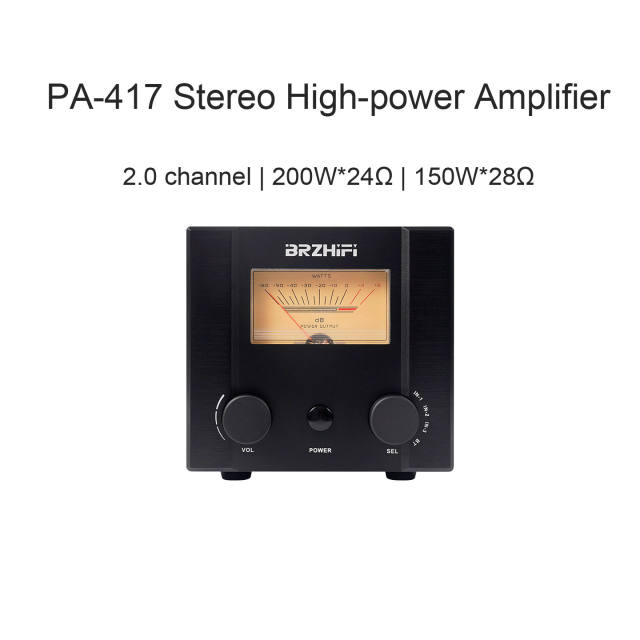

Model: PA-417
Chip: STK417-130

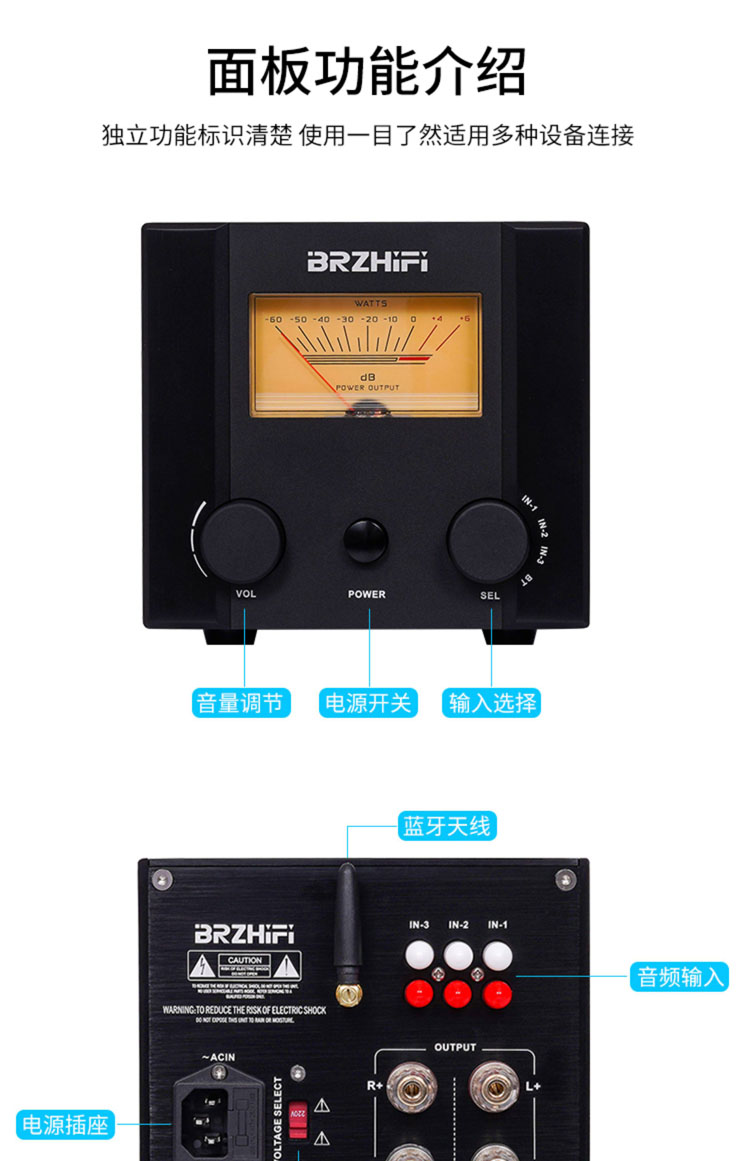

Input port: Bluetooth/AUX123

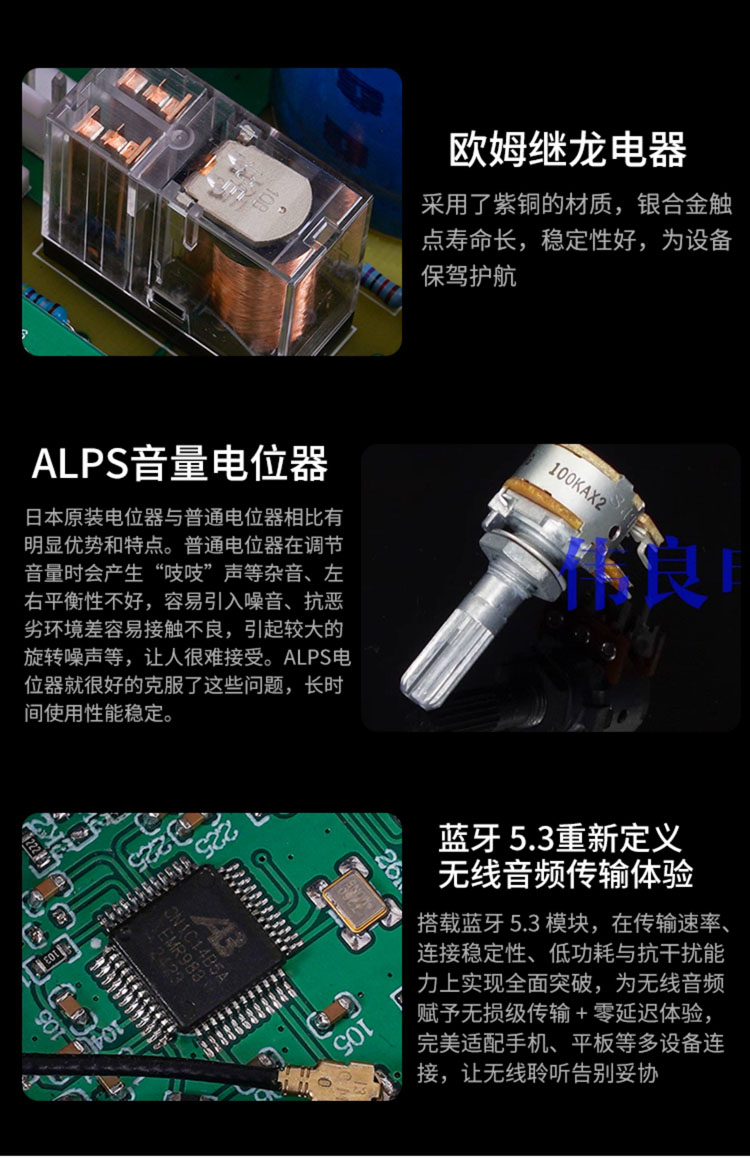

Bluetooth version: 5.3 SBC
Output power: 150W+150W4-8 ohms Rated power
200W+200W 4-8 ohms Maximum power
Output impedance: 2-8 Ω
Magnification factor: 55 times
Frequency response range: 5-40kHz ± 3dB
Signal to noise ratio: -115dB
Input sensitivity: 750mV
Static power consumption: 10W
Size: 165 × 282 × 150mm Width Depth Height
Weight: approximately 7.5KG

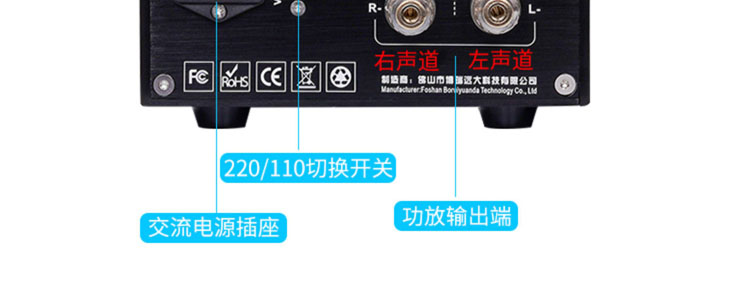

Input voltage: AC 230V (switchable 110V input)
Recommended pairing: 3-15 inch passive fixed impedance speaker
