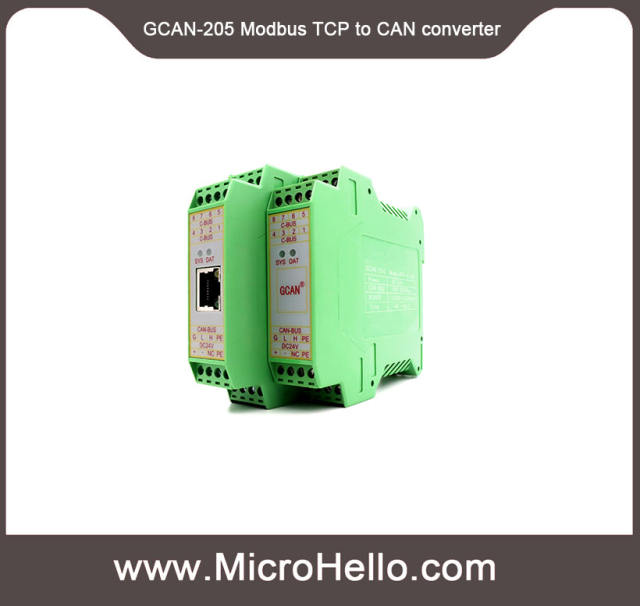

GCAN-205 Modbus TCP to CAN converter modbus TCP to CAN Module

Name: GCAN-205 Modbus TCP to CAN converter modbus TCP to CAN Module
Brand: MicroHello
SKU: modbus/TCP-CAN-001
Price: 233 USD
Availability: InStock

SKU: modbus/TCP-CAN-001

0.0 (0)

0 Sold

$233.00 ~~$388.00~~

The GCAN-205 is a CAN to Modbus TCP Slave Converter with one Ethernet interface and one CAN interface. It allows user to connect some ModTCP Master with an existing CAN network.
It has integrated isolation protection module and easier to install with DI

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

Description

The GCAN-205 is a CAN to Modbus TCP Slave Converter with one Ethernet interface and one CAN interface. It allows user to connect some ModTCP Master with an existing CAN network.

It has integrated isolation protection module and easier to install with DIN-rail.

Connectivity
CAN connector	Open terminal block
CAN interface	CAN 2.0A, CAN 2.0B, conform to ISO11898-2
CAN baud rate	5kbit/s to 1Mbit/s
Ethernet interface	RJ45, 10/100M self-adaptive
Isolation	DC 1500V electrical isolation
Modbus slave function code	03H, 04H, 06H, 16H
Physical
Size (LxWxH)	113 x 100 x 21 mm
Weight	approx.120g
Operating temperature	-40°C~85°C
Humidity	15 to 95% non-condensing
Installation	DIN rail
Power supply
Voltage	9~30V DC
Current	20mA, 24V DC

The GCAN-205 converter is a standard Modbus Slave station. It will load the data received on CAN bus into the register (address) and wait for the instructions sent by Modbus Master station to read.

When the converter receives the reading instruction, it will send the data from specified register (address) to the Modbus Master station.

When the converter receives the sending instruction, it will progress the Modbus data and send to CAN bus.
Working principle of modbus to can
