- Hardware features:
- 1. Small size, metal enclosure, strong anti-interference ,USB interface
- 2. Built-in hardware anti-crash self-reset circuit to resist strong external interference signals.
- 3. Overcurrent, overvoltage and reverse connection protection circuit.
- The LoRa Pro module is a new series of upgraded networking wireless communication modules from Wireless. It is based on Semtech's SX127X chip and uses advanced LoRa spread spectrum modulation frequency hopping technology to achieve high sensitivity. The penetrating power and communication distance are far superior to the current FSK and GFSK products, and have stronger anti-interference. In order to meet the application needs of different customers, we design the module software of this series as an all-in-one way. Users can switch between different working modes through the PC software configuration module. In MESH mode, the routing module has automatic routing. Function, the user can form a network transmission without blind zone without distance limitation by means of multi-module combination. At the same time, users can also encrypt AES128 wireless data through PC software or serial port instructions, making data transmission more secure.

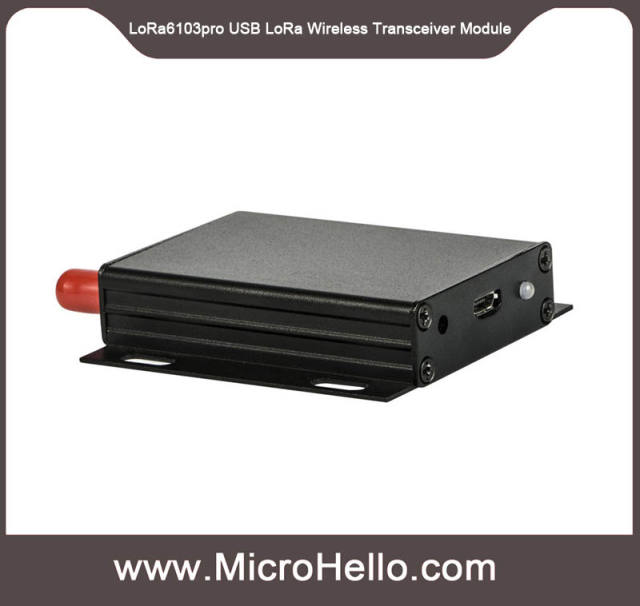

- LoRa6103Pro module is designed for 1W/500mW output power and USB interfaces. It is widely used in wireless remote transmission control.
- LoRa6103Pro strictly uses lead-free process for production and testing, and meets RoHS and Reach standards.
Features
- Transmission distance in the open area up to 10km@ 91bps
- Frequency band: 433/470/868/915 MHz for option
- AES128 Data encryption
- MESH & Node working mode
- 40 channels
- LoRa modulation
- USB Interface
- Sensitivity: -139 dBm
- Working temperature: -40 ~ +85 °C
- Max output power: 500mW/1W （+30/+27dBm）
Applications
- Remote control
- Remote meter reading
- Industrial data collection
- Home automation telemetry
- Wireless data communication
- Access control system
| Parameters |
Min. |
Typ. |
Max. |
Unit |
Condition |
| Working Condition |
| Voltage range |
4.5 |
5.0 |
5.5 |
V |
|
| Operating Temperature |
-40 |
25 |
+85 |
℃ |
|
| Current Consumption |
| Rx current |
|
< 30 |
|
mA |
|
| Tx current |
|
< 600 |
|
mA |
@ 30dBm |
| RF Parameters |
|
Frequency range
|
414.92 |
433.92 |
453.92 |
MHz |
@433MHz |
| 470.92 |
490.92 |
509.92 |
MHz |
@490MHz |
| 849.92 |
868.92 |
888.92 |
MHz |
@868MHz |
| 895.92 |
914.92 |
934.92 |
MHz |
@915MHz |
| Data rate |
91 |
656 |
17353 |
bps |
@LoRa |
| Output power |
+ 24 |
> 29.5 |
+ 31 |
dBm |
@433MHz / 490MHz |
| + 21 |
> 27 |
+ 28.5 |
dBm |
@868MHz / 915MHz |
| Sensitivity |
|
-139 |
|
dBm |
@91bps |
Typical Application Circuit
Pin definition:
Mechanical dimension (mm):
