Product Features

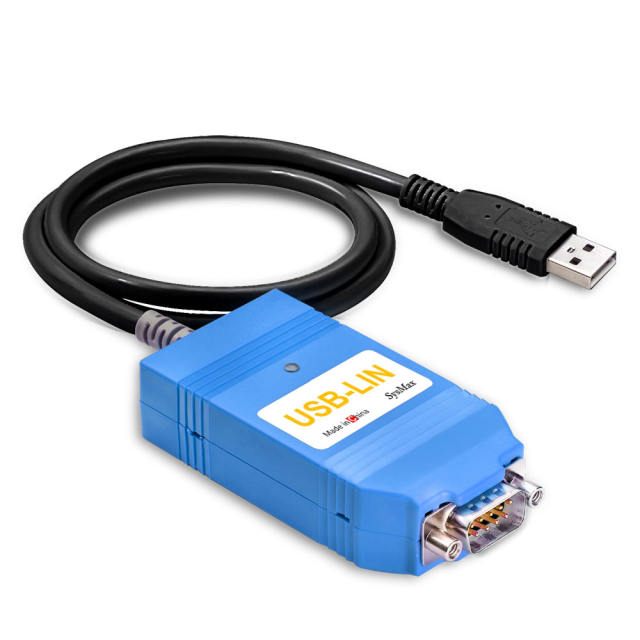

The LIN-USB adapter can connect a Windows computer to a LIN network via USB. This LIN interface supports the LIN protocol that complies with the ISO17987 standard and conforms to all LIN specifications up to version 2.2. This interface can operate as a master device or a slave device.
Technical Specifications
►USB LIN interface (full speed mode, compatible with USB1.1, USB2.0, and USB3.0)
►LIN connection (ISO17987)
►Compliant with all LIN specifications (highest version 2.2)
►Bit rate ranging from 1kbit/s to 20kbit/s
►Can be used as a LIN host or slave (1 millisecond host task resolution)
►Automatic bit rate, frame length, and checksum type recognition
►Support autonomous scheduling program for unconditional, event, and sporadic frames
►LIN bus connection through D-Sub and 9-pin
►LIN connection has anti short circuit function, which can prevent power and grounding of the transceiver
►NXPLIN transceiver TJA1028T or TILIN transceiver TLIN1028D
►The electrical isolation on LIN connection can reach up to 500V
►Interface status indicator light
►Powered by 5V DC through USB port
►Transceiver power supply 6 to 28VDC, via D-Sub, pin 9
