Hardware Replacement Solutions for Saving Cost
|
Part#
|
Replacement Target
|
Feactures
|
Links
|
| LF-CAN-PC |
PCAN-USB(PEAK):
IPEH-002022
IPEH-002021
|
Compatible with PCAN-USB by PEAK company(includes IPEH-002022 and IPEH-002021),Supports PCAN-View and PCAN-Explorer,Supports PCAN-Basic Programming interface. |
 |
| LF-CAN-EP |
Debug and download Cable for EPEC Controllers |
Used for Debug and download for EPEC Controllers. Supports Software development and Source code compiling in software Codesys .Supports Download,debug and modifying parameters in software CANMoon. |
|
| LF-CAN-IT |
USB-to-CAN compact(IXXAT) |
Compatible with USB-to-CAN compact by IXXAT.Supports software MiniMon,CANAnalyser etc. |
|
| LF-CAN-CD |
Debug and download Cable for IFM shift Programmable controller |
Used for Debug and download for IFM shift Programmable controller.Supports on-line debug and download in software CoDesys PLC (3S Company).
|
|
| LF-CAN-VC |
Debug and download Cable for VACON inverters |
Used for debug and analysing for VACON inverters.Supports software NCDrive. |
|
| LF-CAN-ESD |
USBCAN-Mini(ESD) |
Compatible with USBCAN-Mini by ESD,Supports software CANreal etc. |
|
| LF-CAN-LZ |
EMF2177IB(Lenze) |
Compatible with EMF2177IB by Lenze,Supports software Engineer,GDC etc. |
|
| LF-CAN-ZP |
debug and analysing Cable for ZAPI controllers |
Used for debugging and analysing for ZAPI controllers.Supports software ZpCanConsole. |
|
Indroduction to LF-ECAN-PC and PCAN-USB
The LF-ECAN-PC Module is low-cost,high-quality and full-function device for replacing the PEAK PCAN-USB:IPEH-002022 or IPEH-002021.The LF-ECAN-PC Module is a perfect replacement solution for PEAK PCAN-USB:IPEH-002022 or IPEH-002021,100% compatible.A good solution to reduce cost.

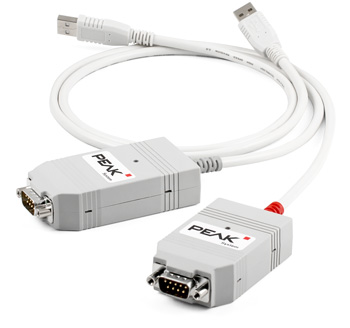

The PCAN-USB adapter provides one CAN channel at computers with USB ports. Device drivers and programming interfaces exist for different operating systems, so programs can easily access a connected CAN bus.The USB-to-CAN module is a perfect replacement to PEAK PCAN CAN-USB 002021 and 002022 module,which can greatly reduce your cost in your system.
Technical Data
- Adapter for the USB connection (USB 1.1, compatible with USB 2.0 and USB 3.0)
- High-speed CAN connection (ISO 11898-2)
- Bit rates from 5 kbit/s up to 1 Mbit/s
- Time stamp resolution approx. 42 µs
- Compliant with CAN specifications 2.0A (11-bit ID) and 2.0B (29-bit ID)
- CAN bus connection via D-Sub, 9-pin
(in accordance with CiA® 303-1)
- NXP SJA1000 CAN controller, 16 MHz clock frequency
- NXP PCA82C251 CAN transceiver
- 5-Volt supply to the CAN connection can be connected through a solder jumper, e.g. for external bus converter
- Voltage supply via USB
- Extended operating temperature range from -40 to 85 °C (-40 to 185 °F)
Optionally available:
- Galvanic isolation on the CAN connection up to 500 V
About Software

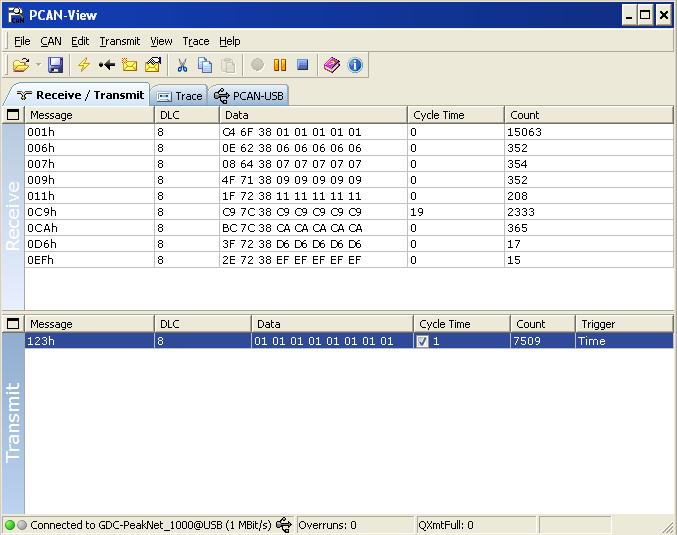

Supports PCAN-View、PCAN-Explorer,etc.Supports PCAN-Basic programming Interface,Supports redeveloped software based on PCAN.
Comes with PCAN View software.
Supports Linux OS,Provides driver and sample source code,socket CAN working mode.
If we can write SN number i have into the device?
Yes,we can write your own SN number into the device,it save you much more money. Feel free to write us message if you have any question or requirement for this device.
Can you provide after-sale service?
Yes,we provide good after-sale service including on-line upgrading.
Package contains
ECAN-PC--------------------------------------------1PCS
DB9 to OPEN5 connector--------------------1PCS
USB2.0 Cable ------------------------------------1PCS
1p-1p Dupont DIY wire -------------------------2PCS
