The default output voltage is 12V. Customizable linear power supplies with output voltages of 19V10A or 12V14A are available, with the latter two output ports connected in parallel. The DC output plug specification is 5.5-2.5. If you require other voltages or output cable sizes, please leave a message!

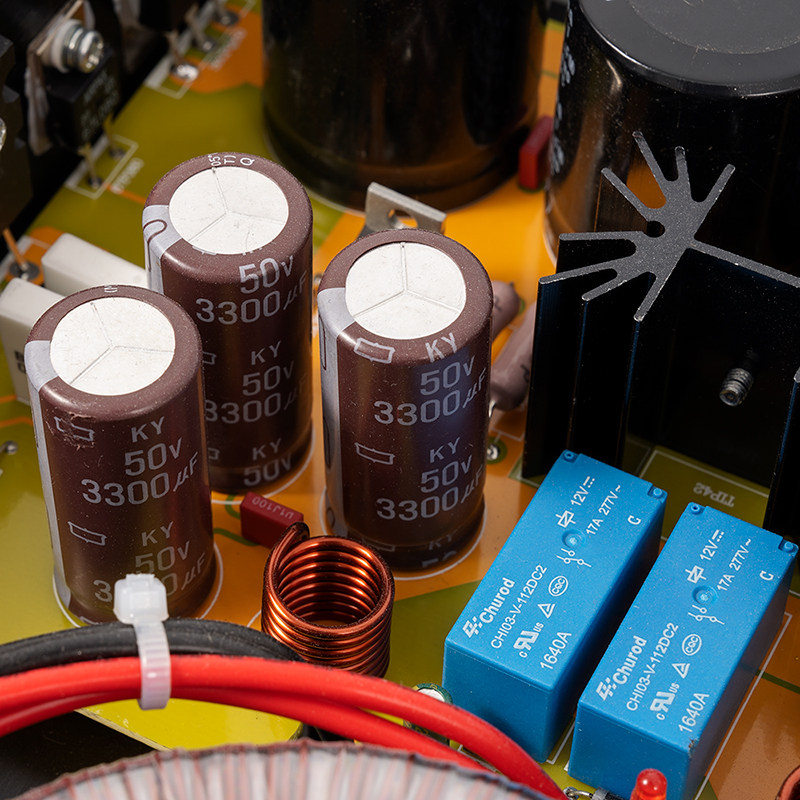

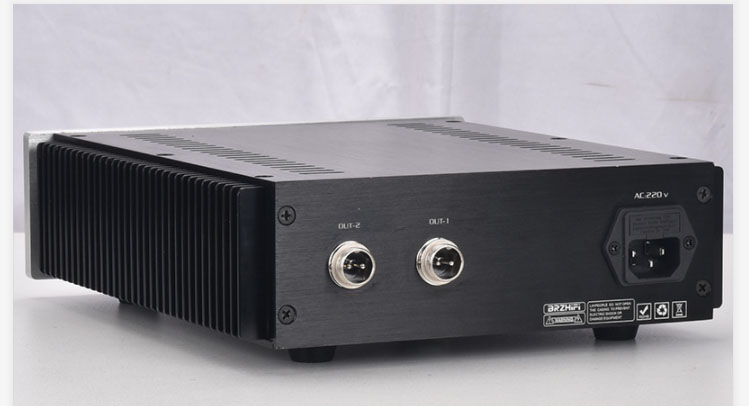

The circuit architecture features a classic high-precision voltage regulator circuit coupled with current expansion. The two outputs are connected in parallel, and each set of output has an independent overcurrent protection circuit, enhancing reliability and safety. Large capacitors are used for input and output filtering, further improving the quality of the DC power supply! The very low internal resistance, high conversion rate, and very low ripple factor combine to create this high-performance energy source
Summary of materials:

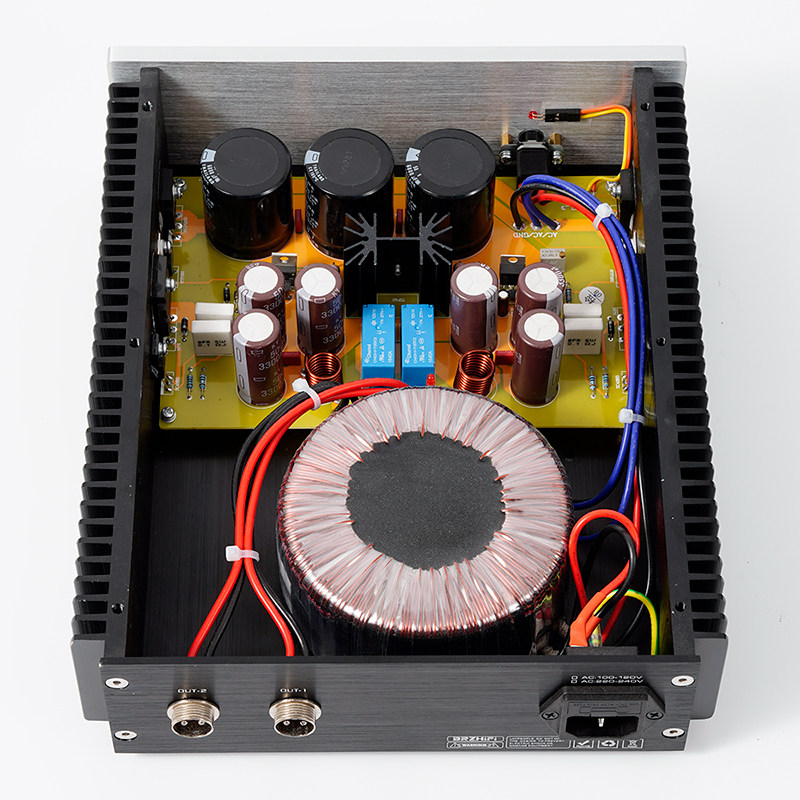

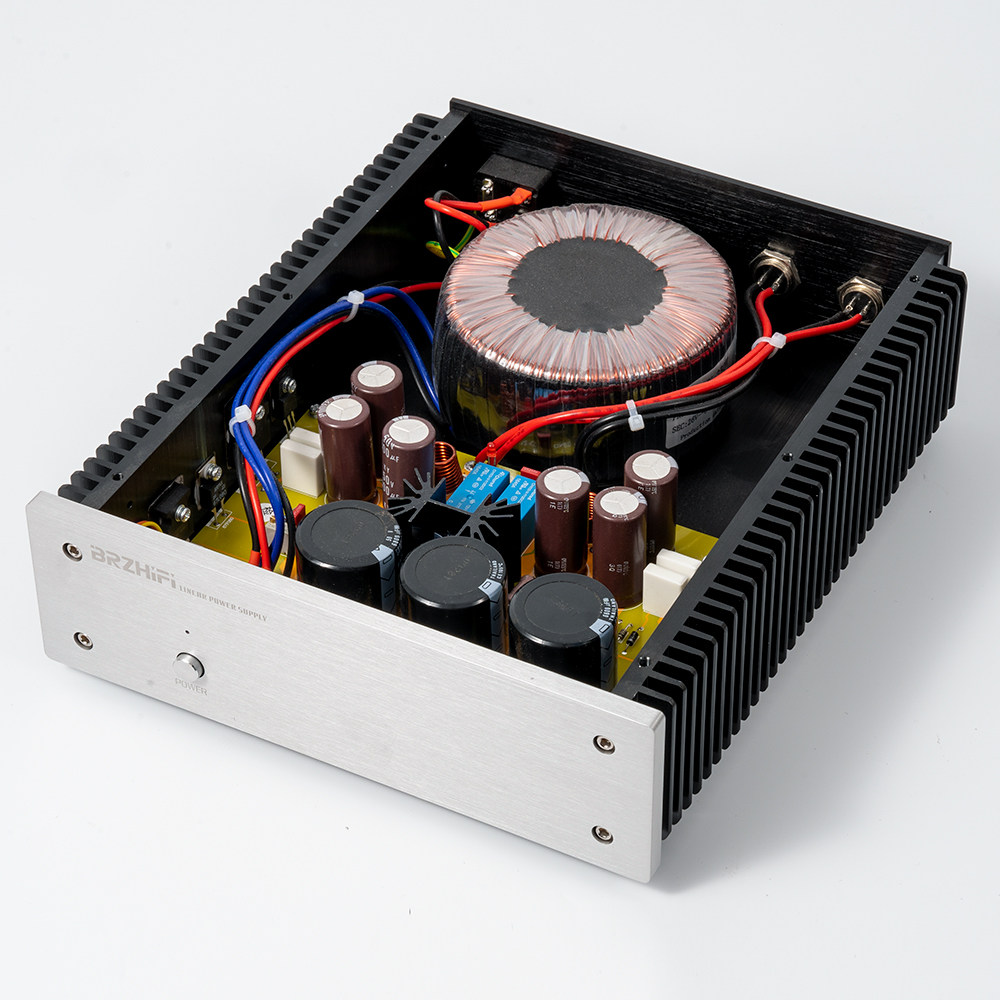

►Customized 250W pure copper toroidal transformer.
►Ultra-low noise voltage regulation circuit composed of precision reference and high current output tube.

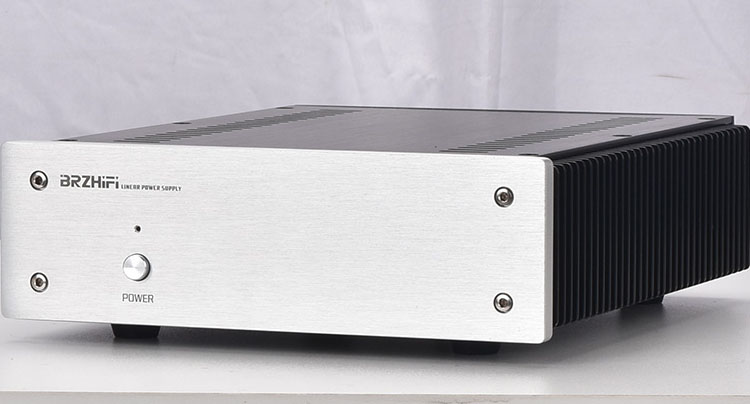

►Aluminum alloy brushed shell, elegant and fashionable.
►Built-in precision adjustable resistor for fine adjustment of output voltage.
►ALPS power switch. Nikon, Black Diamond, high-quality electrolytic capacitor
Suitable for polishing various HTPC high-definition audio and video playback computers, NAS power supply upgrades, with actual test ripple within 5mV。
The voltage can be customized to parameters such as 12V, 16V, 19V, 24V, etc. The maximum output power is 200W and the maximum output current is 14A (depending on the output voltage. For example, the maximum current is 8.3A at 24V, 10.5A at 19V, and 14A at 12V)

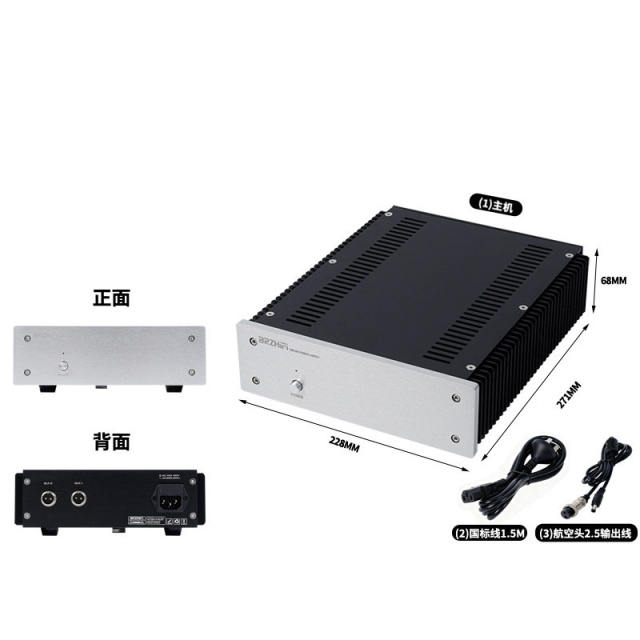

Size: 230 X 70 X 263mm
Weight: 5.7KG
