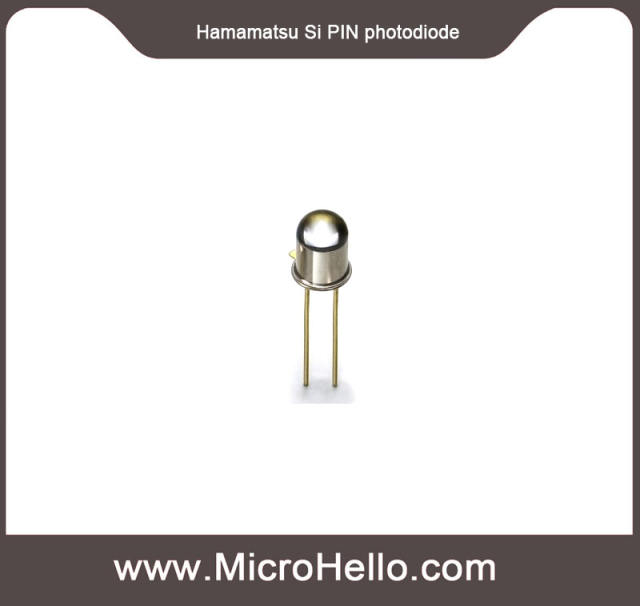

Hamamatsu S5821-03 Si PIN photodiode High performance, high reliability

Name: Hamamatsu S5821-03 Si PIN photodiode High performance, high reliability
Brand: MicroHello
SKU: Hamamatsu-S5821-03-001
Price: 18.6 USD
Availability: InStock

SKU: Hamamatsu-S5821-03-001

0.0 (0)

0 Sold

$18.60 ~~$62.00~~

The S5821-03 is a high-speed Si PIN photodiode having high sensitivity over a wide spectral range from visible to near infrared light. The S5821-03 provides high performance and reliability at a low cost.

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

Description

High performance, high reliability Si PIN photodiode

Features
-High-speed response
-Wide spectral response
-Low dark current
-Low terminal capacitance

Specifications

Photosensitive area	φ1.2 mm
Number of elements	1
Package	Metal
Package category	TO-18, with lens
Cooling	Non-cooled
Reverse voltage (max.)	20 V
Spectral response range	320 to 1100 nm
Peak sensitivity wavelength (typ.)	960 nm
Photosensitivity (typ.)	0.52 A/W
Dark current (max.)	2000 pA
Cutoff frequency (typ.)	25 MHz
Terminal capacitance (typ.)	3 pF
Noise equivalent power (typ.)	6.7×10^-15 W/Hz^1/2
Measurement condition	Typ. Ta=25 ℃, Photosensitivity: λ=780 nm, Dark current: V_R=10 V, Cutoff frequency: V_R=10 V, Terminal capacitance: V_R=10 V, f=1 MHz, Noise equivalent power: V_R=10 V, λ=λp, unless otherwise noted
