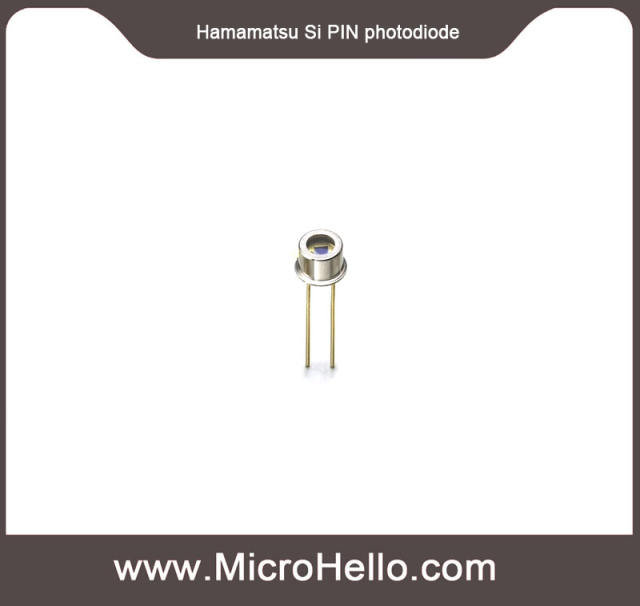

Hamamatsu S1336-18BK UV to near IR for precision photometry

Name: Hamamatsu S1336-18BK UV to near IR for precision photometry
Brand: MicroHello
SKU: Hamamatsu-S1336-18BK-001
Price: 59 USD
Availability: InStock

SKU: Hamamatsu-S1336-18BK-001

0.0 (0)

0 Sold

$59.00 ~~$112.00~~

- High sensitivity in UV range
- Low capacitance
- High reliability

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

Description

Specifications

Photosensitive area	1.1 × 1.1 mm
Number of elements	1
Package	Metal
Package category	TO-18
Cooling	Non-cooled
Reverse voltage (max.)	5 V
Spectral response range	320 to 1100 nm
Peak sensitivity wavelength (typ.)	960 nm
Photosensitivity (typ.)	0.5 A/W
Dark current (max.)	20 pA
Rise time (typ.)	0.1 μs
Terminal capacitance (typ.)	20 pF
Noise equivalent power (typ.)	5.7×10^-15 W/Hz^1/2
Measurement condition	Typ. Ta=25 ℃, unless otherwise noted, Photosensitivity: λ=960 nm, Dark current: V_R=10 mV, Terminal capacitance: V_R=0 V, f=10 kHz
