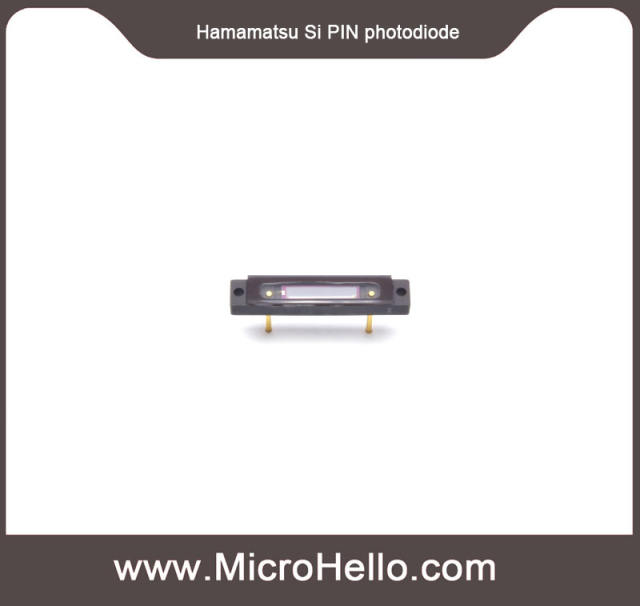

Hamamatsu S1227-16BQ Si photodiode For UV to visible, precision photometry; suppressed IR sensitivity

Name: Hamamatsu S1227-16BQ Si photodiode For UV to visible, precision photometry; suppressed IR sensitivity
Brand: MicroHello
SKU: Hamamatsu-S1227-16BQ-001
Price: 95 USD
Availability: InStock

SKU: Hamamatsu-S1227-16BQ-001

0.0 (0)

0 Sold

$95.00 ~~$182.00~~

- High UV sensitivity (quartz window type): QE＝75 % (λ=200 nm)
- Suppressed IR sensitivity
- Low dark current

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

Description

Specifications

Photosensitive area	5.9 × 1.1 mm
Number of elements	1
Package	Ceramic
Cooling	Non-cooled
Reverse voltage (max.)	5 V
Spectral response range	190 to 1000 nm
Peak sensitivity wavelength (typ.)	720 nm
Photosensitivity (typ.)	0.36 A/W
Dark current (max.)	5 pA
Rise time (typ.)	0.5 μs
Terminal capacitance (typ.)	170 pF
Noise equivalent power (typ.)	2.5×10^-15 W/Hz^1/2
Measurement condition	Typ. Ta=25 ℃, Photosensitivity: λ=720 nm, Dark current: V_R=10 mV, Terminal capacitance: V_R=0 V, f=10 kHz, unless otherwise noted
