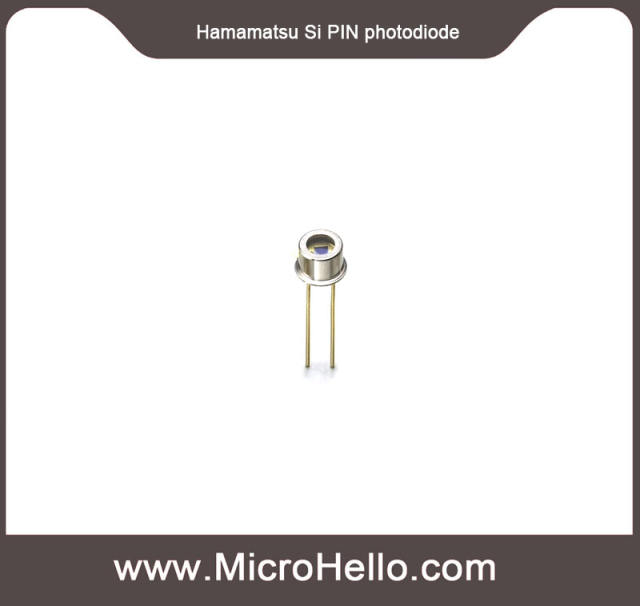

Hamamatsu S1226-18BK Si PIN photodiode For UV to visible, precision photometry; suppressed near IR sensitivity

Name: Hamamatsu S1226-18BK Si PIN photodiode For UV to visible, precision photometry; suppressed near IR sensitivity
Brand: MicroHello
SKU: Hamamatsu-S1226-18BK-001
Price: 49 USD
Availability: InStock

SKU: Hamamatsu-S1226-18BK-001

0.0 (0)

0 Sold

$49.00 ~~$102.00~~

- High UV sensitivity: QE＝75 % (λ=200 nm)
- Suppressed near IR sensitivity
- Low dark current
- High reliability

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

Description

Specifications

Photosensitive area	1.1 × 1.1 mm
Number of elements	1
Package	Metal
Package category	TO-18
Cooling	Non-cooled
Reverse voltage (max.)	5 V
Spectral response range	320 to 1000 nm
Peak sensitivity wavelength (typ.)	720 nm
Photosensitivity (typ.)	0.36 A/W
Dark current (max.)	2 pA
Rise time (typ.)	0.15 μs
Terminal capacitance (typ.)	35 pF
Noise equivalent power (typ.)	1.6×10^-15 W/Hz^1/2
Measurement condition	Ta=25 ℃, Typ., Photosensitivity: λ=720 nm, Dark current: V_R=10 mV, Terminal capacitance: V_R=0 V, f=10 kHz, unless otherwise noted
