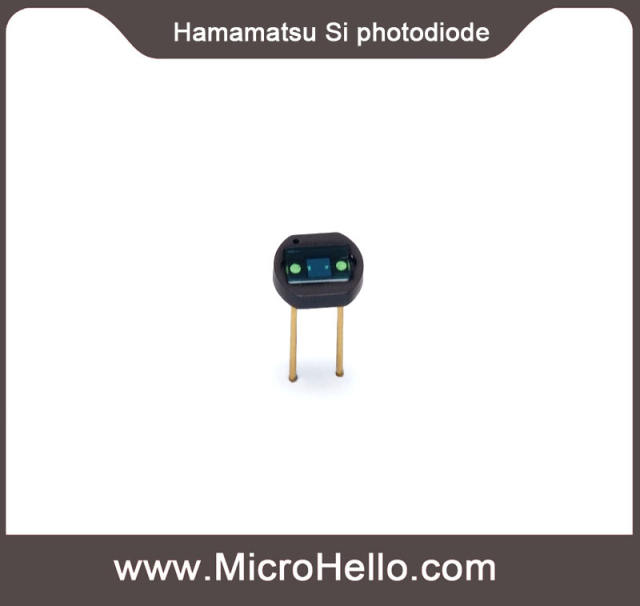

Hamamatsu S1087 Si photodiode low dark current For visible to IR range

SKU: Hamamatsu-S1087-001
0.0 (0)
0 Sold
$12.50 $22.00
The S1087 is a ceramic package photodiode that offers low dark current. Ceramic package used is light-impervious, so no stray light can reach the photosensitive area from the side or backside.
Received successfully
Coupon Code
CONTINUE SHOPPING
Quantity:
  • Hamamatsu S1087 Si photodiode low dark current For visible to IR range
  • Description

Specifications

Photosensitive area 1.3 × 1.3 mm
Number of elements 1
Package Ceramic
Package category With filter
Cooling Non-cooled
Reverse voltage (max.) 10 V
Spectral response range 320 to 730 nm
Peak sensitivity wavelength (typ.) 560 nm
Photosensitivity (typ.) 0.3 A/W
Dark current (max.) 10 pA
Rise time (typ.) 0.5 μs
Terminal capacitance (typ.) 200 pF
Measurement condition Typ. Ta=25 ℃, Photosensitivity: λ=λp, Dark current: VR =1V, Terminal capacitance: VR=0 V, f=10 kHz, unless otherwise noted




Datasheet Download
