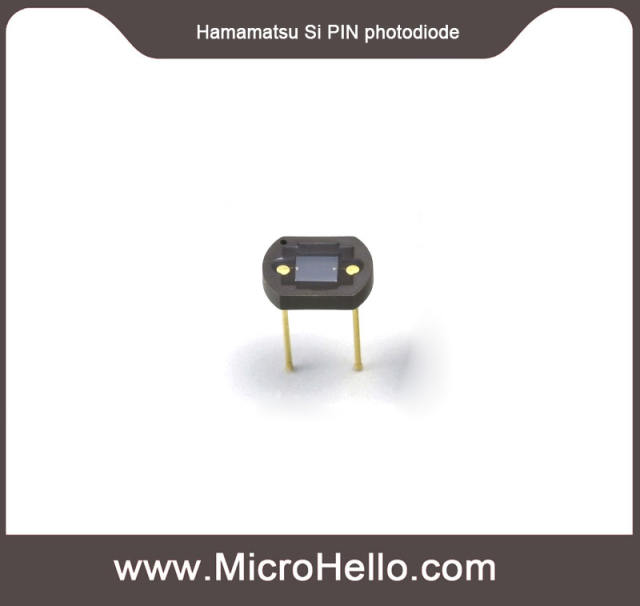

Hamamatsu S1133-01 Si photodiode low dark current For visible to IR range

SKU: Hamamatsu-S1133-01-001
0.0 (0)
0 Sold
$9.20 $22.00
S1133-01 is a ceramic package photodiode that offers low dark current. Ceramic package used is light-impervious, so no stray light can reach the active area from the side or backside. This allows reliable optical measurements in the visible to near infrar
Received successfully
Coupon Code
CONTINUE SHOPPING
Quantity:
  • Hamamatsu S1133-01 Si photodiode low dark current For visible to IR range
  • Description

Specifications

Photosensitive area 2.8 × 2.4 mm
Number of elements 1
Package Ceramic
Cooling Non-cooled
Reverse voltage (max.) 10 V
Spectral response range 320 to 1100 nm
Peak sensitivity wavelength (typ.) 960 nm
Photosensitivity (typ.) 0.58 A/W
Dark current (max.) 10 pA
Rise time (typ.) 2.5 μs
Terminal capacitance (typ.) 700 pF
Measurement condition Typ. Ta=25 ℃, Photosensitivity: λ=λp, Dark current: VR=1V, Terminal capacitance: VR=0 V, f=10 kHz, unless otherwise noted




Datasheet Download

//ueeshop.ly200-cdn.com/u_file/UPAV/UPAV365/2108/photo/16488a557f.jpg
