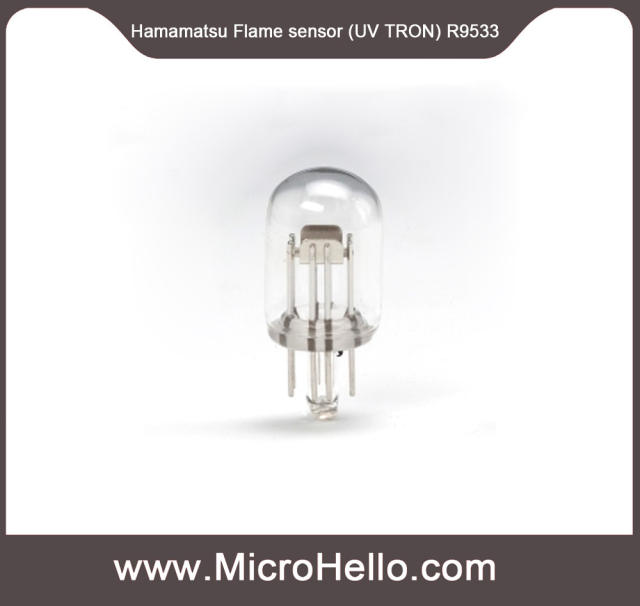

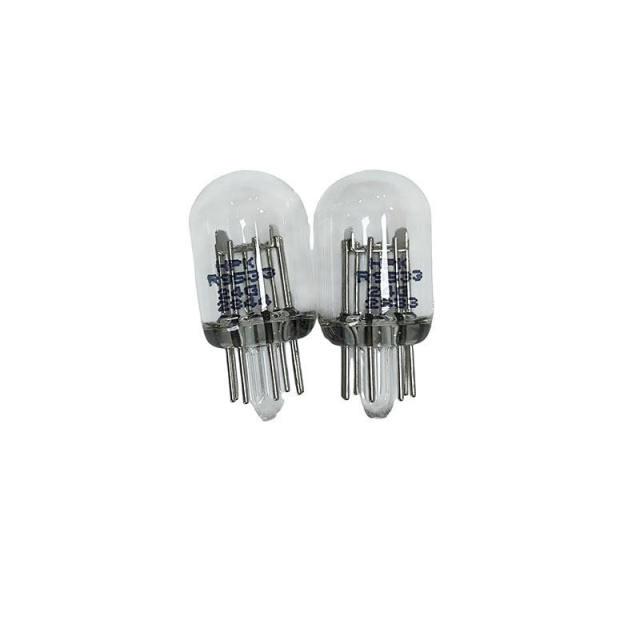

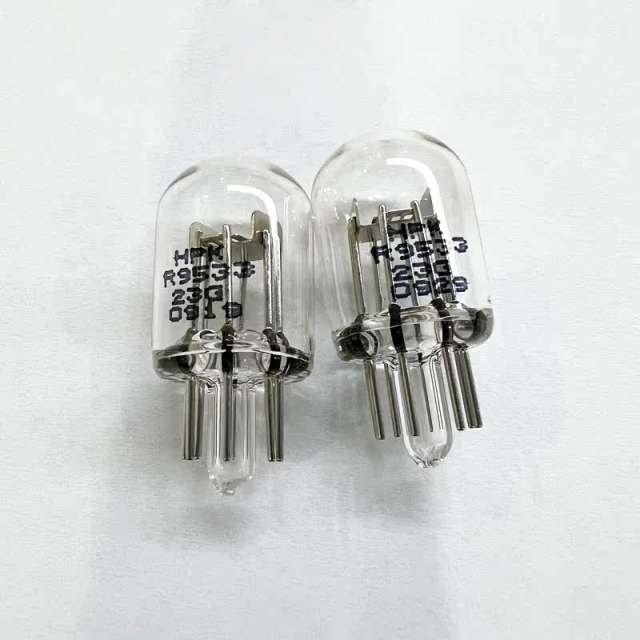

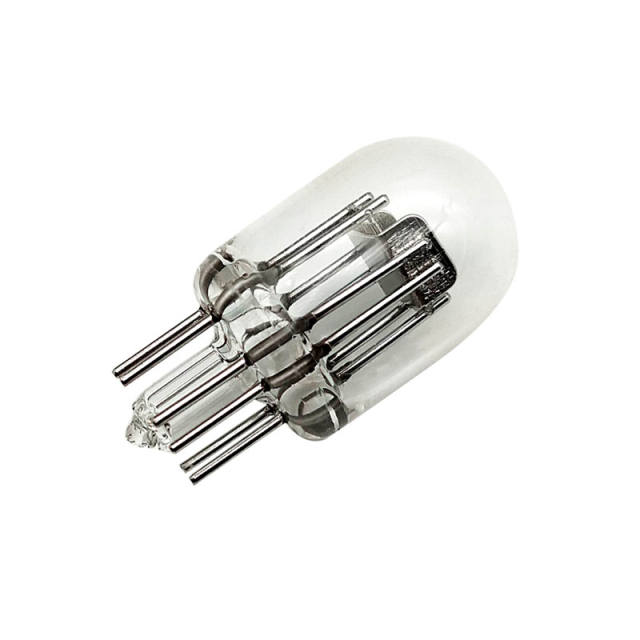

Hamamatsu Flame sensor (UV TRON) R9533

Name: Hamamatsu Flame sensor (UV TRON) R9533
Brand: MicroHello
SKU: HT001-001
Price: 299 USD
Availability: InStock

SKU: HT001-001

0.0 (0)

0 Sold

$299.00 ~~$599.00~~

The R9533 is a head-on type (UV light enters from the bulb top) that easily installs in most equipment and has high sensitivity and a wide field of view.

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

Description

Contact us for bulk & wholesale orders via:
E-mail: microhello_sales@163.com
or via on-line chat app:

ID:+86 159 7819 3886

ID:weixinliang001

///////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////

The R9533 is a head-on type (UV light enters from the bulb top) that easily installs in most equipment and has high sensitivity and a wide field of view.

Specifications

Spectral Response (Short)	185 nm
Spectral Response (Long)	260 nm
Electrode Material	Ni
Weight	2.5 g
[Maximum Rating] Supply Voltage (DC)	400 V
[Maximum Rating] Average Discharge Current	1 mA
[Maximum Rating] Peak Current	30 mA
[Maximum Rating] Operation Ambient Temperature	-40 to +125 ℃
Discharge Starting Voltage (DC)	280 V
Discharge Sustaining Voltage (DC)	230 V
Sensitivitiy Typ.	10000 min^-1
Background Max.	10 min^-1
Estimated Life	25000 h
[Recommended Operating Parameters] Supply Voltage (DC)	350±25 V
[Recommended Operating Parameters] Average Discharge Current	0.3 mA
[Recommended Operating Parameters] Quenching Time Min.	1 ms
Suitable Socket (Sold Separately)	E678-8F
