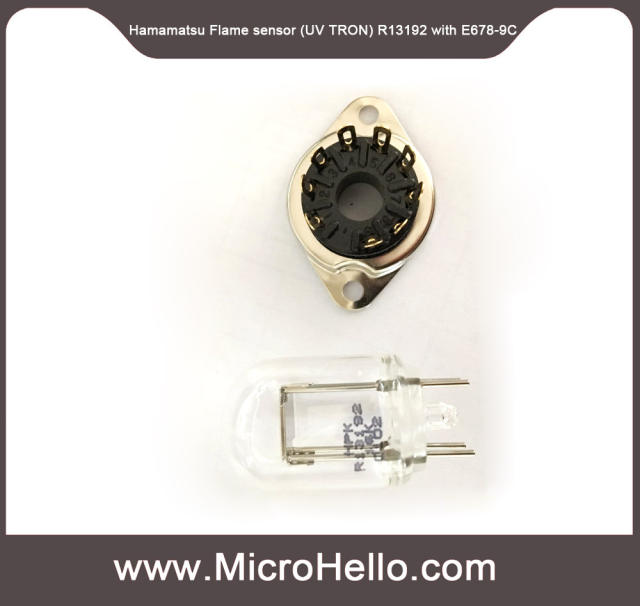

Hamamatsu Flame sensor (UV TRON) R13192 + E678-9C Suitable Socket

Name: Hamamatsu Flame sensor (UV TRON) R13192 + E678-9C Suitable Socket
Brand: MicroHello
SKU: Hamamatsu-0010
Price: 445 USD
Availability: InStock

SKU: Hamamatsu-0010

0.0 (0)

1 Sold

$445.00 ~~$820.00~~

Detects fire from long distances (high sensitivity)
Detects only UV light without using any optical filters

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

Description

Contact us for bulk & wholesale orders via:
E-mail: microhello_sales@163.com
or via on-line chat app:

ID:+86 159 7819 3886

ID:weixinliang001

Detects fire from long distances (high sensitivity)

Detects only UV light without using any optical filters

Specifications

Spectral Response (Short)	185 nm
Spectral Response (Long)	260 nm
Electrode Material	Ni
Weight	5.2 g
[Maximum Rating] Supply Voltage (DC)	420 V
[Maximum Rating] Average Discharge Current	3 mA
[Maximum Rating] Peak Current	50 mA
[Maximum Rating] Operation Ambient Temperature	-40 to +125 ℃
Discharge Starting Voltage (DC)	260 V
Discharge Sustaining Voltage (DC)	185 V
Sensitivitiy Typ.	15000 min^-1
Background Max.	5 min^-1
Estimated Life	25000 h
[Recommended Operating Parameters] Supply Voltage (DC)	325±25 V
[Recommended Operating Parameters] Average Discharge Current	0.3 mA
[Recommended Operating Parameters] Quenching Time Min.	2 ms
Suitable Socket (Sold Separately)	E678-9C
